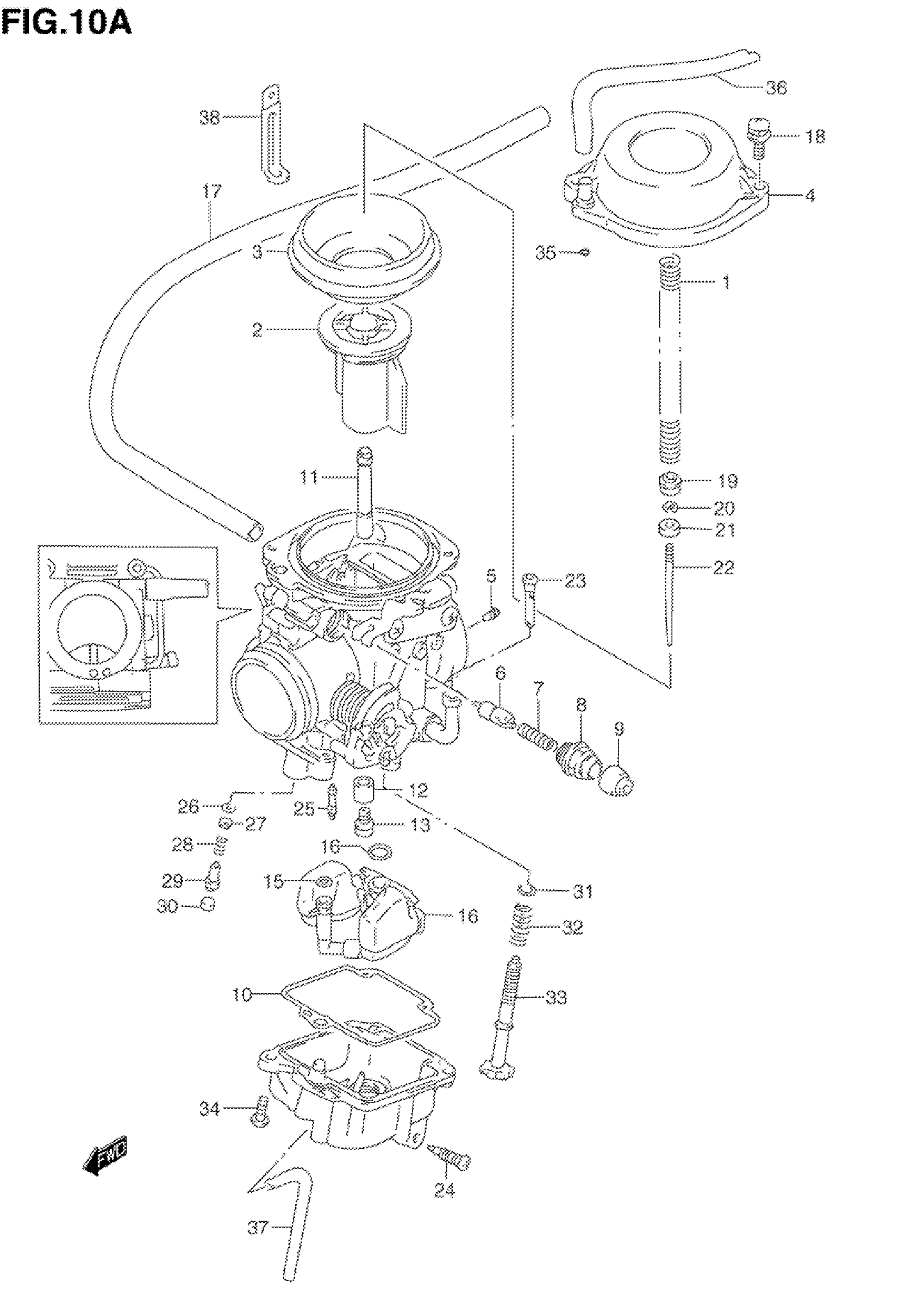

Suzuki DR650SES (1995) CARBURETOR (MODEL R/S) Diagram

#

Description
Price

CARBURETOR ASSY

13200-12EF0

Unavailable

CARBURETOR ASSY | CALIFORNIA ONLY; Includes Item(s) 1 - 37

13200-12EG0

Unavailable

1

SPRING

13417-17D00

$7.18

2

VALVE, PISTON

13501-12D00

Unavailable

3

.DIAPHRAGM | MODEL R This part replaces 13507-07D00.

13507-07D02

$26.78

3

.DIAPHRAGM | MODEL S This part replaces 13507-07D01.

13507-07D02

$26.78

4

COVER, DIAPHRAGM

13502-12D00

Unavailable

5

JET, AIR (1.4) This part replaces 09493-28007.

09493-28006

$16.32

6

PLUNGER ASSY

13411-12D00

$26.55

7

SPRING

13417-22010

$3.56

8

HOLDER, GUIDE

13418-43410

$7.22

9

.CAP This part replaces 13681-04010.

13681-04011

$4.93

10

GASKET, FLOAT CHAMBER

13258-44B00

$9.78

11

JET, NEEDLE (Y-2)

09494-00754

Unavailable

12

RING

13331-07D00

$6.63

13

JET, MAIN (137.5)

09491-27010

$12.13

14

FLOAT/NEEDLE VALVE ASSY This part replaces 13250-12E00.

13250-12EH0

$116.02

15

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

16

O RING This part replaces 13374-44080.

13374-35C00

$5.99

17

HOSE(6.5X11.5X6 | L:600->500 This part replaces 09354-65113-600.

09355-65001-600

$12.00

18

SCREW This part replaces 02112-75163.

02112-7516A

$2.41

19

RING

13331-12D00

$6.63

20

E RING

13394-31210

$4.64

21

RING This part replaces 13387-12E00.

13387-07D00

$5.44

22

NEEDLE, JET (6F10-1)

13383-12E20

Unavailable

23

FILTER

13236-12C00

$10.34

24

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

25

JET, PILOT (52.5)

09492-52010

$14.67

26

O-RING This part replaces 13295-29900.

13295-29901

$4.34

27

WASHER

13291-29900

$1.98

28

.SPRING (NT:45)

13268-47070

$4.34

29

SCREW, PILOT

13279-47070

$13.36

30

PLUG

13281-05A00

$4.60

31

WASHER

13427-38300

$1.92

32

SPRING

13271-24D00

Unavailable

33

ADJUSTER

13267-13D01

Unavailable

34

SCREW This part replaces 13601-05148.

13601-05148-XC0

$3.11

35

O RING

13278-02340

$1.91

36

HOSE(4.5X8.5X60 | L:600->250 This part replaces 09354-45853-600.

09355-45001-600

$9.48

37

.HOSE (3X7X600) This part replaces 13684-18900.

09355-30001-600

$8.56

38

CLAMP | MODEL R This part replaces 09404-06402.

09404-06039

$1.74

38

CLAMP (L:45) | MODEL S

09404-06429

$1.83
