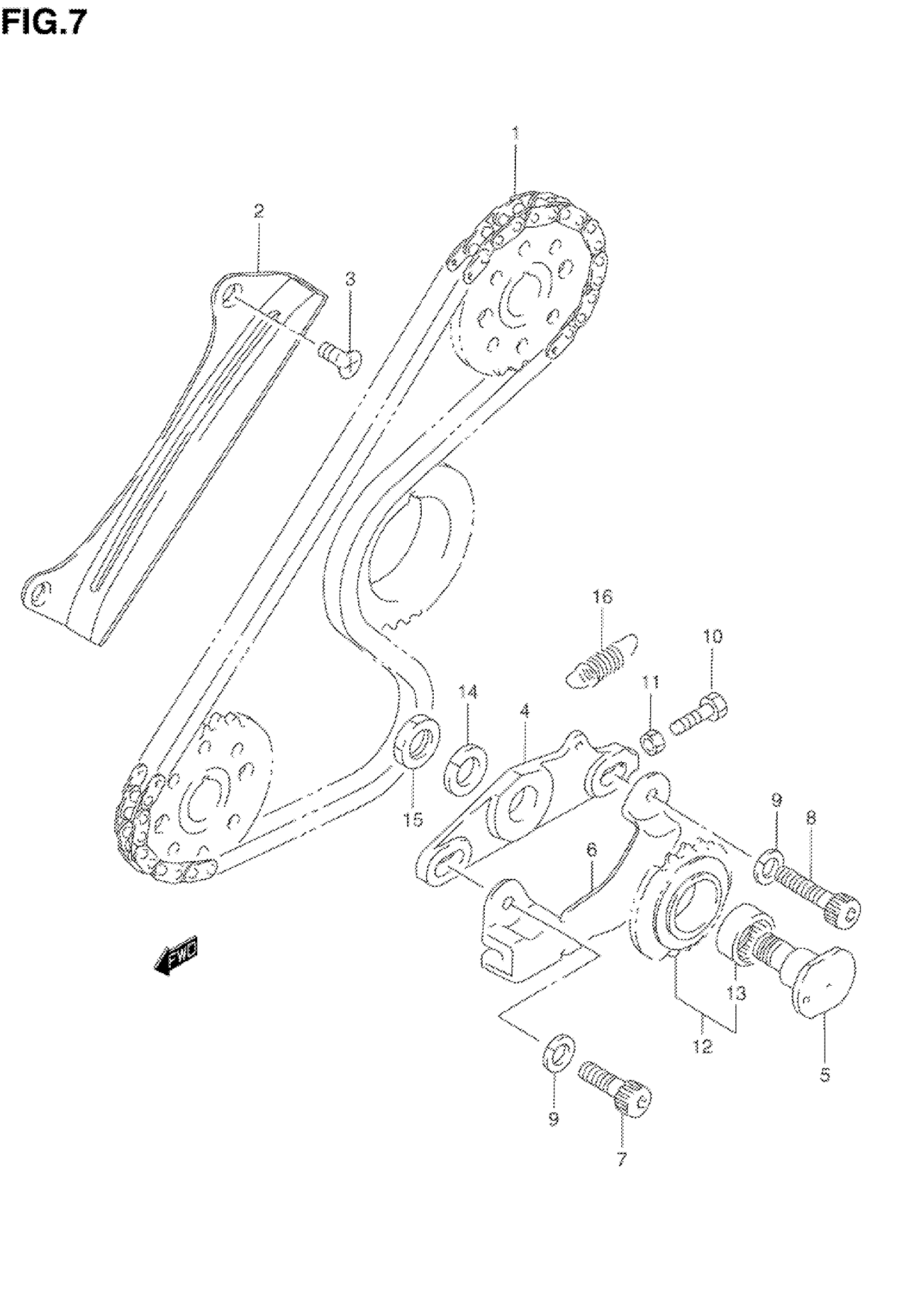

Suzuki DR650SES (1995) BALANCER CHAIN Diagram

#

Description
Price

1

CHAIN, BALANCER

12670-12D00

$134.48

2

GUIDE, CHAIN

12695-12D00

Unavailable

3

SCREW This part replaces 02122-06163.

02122-0616A

$1.49

4

BRACKET, CHAIN TENSIONER

12681-12D00

Unavailable

5

SHAFT, CHAIN TENSIONER

12682-14A01

Unavailable

6

GUIDE, CHAIN TENSIONER

12696-12D00

Unavailable

7

BOLT, FRONT (8X22)

09106-08005

Unavailable

8

BOLT, STEERING DAMPER | MODEL N/P This part replaces 07110-08305.

07130-0830A

$1.74

8

BOLT, STEERING DAMPER | MODEL R/S This part replaces 07130-08303.

07130-0830A

$1.74

9

.LOCK WASHER | MODEL N/P This part replaces 08321-21088.

08321-01087

$2.13

9

LOCK WASHER | MODEL R/S This part replaces 08321-01083.

08321-0108A

$1.84

10

BOLT | MODEL N/P This part replaces 01107-05167.

01500-0516B

$2.15

10

BOLT | MODEL R/S This part replaces 01500-05163.

01500-0516B

$2.15

11

NUT

09140-05006

$2.19

12

SPROCKET, TENSIONER (NT:19) | Includes Item(s) 13

12685-44B00

Unavailable

13

BEARING

09263-17007

Unavailable

14

LOCK WASHER

09162-12006

$3.85

15

NUT

09140-12021

Unavailable

16

SPRING

09443-10040

Unavailable
