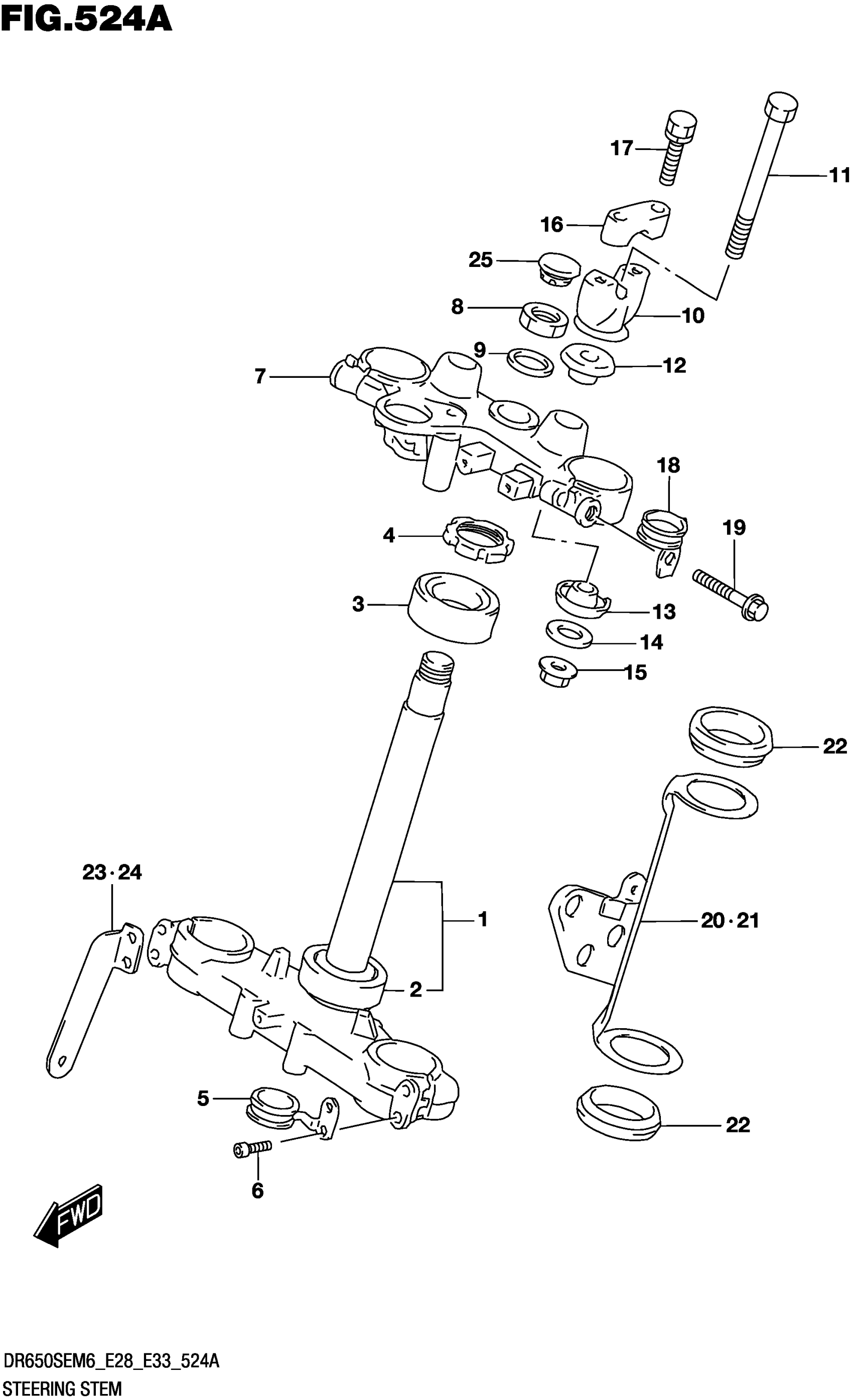

Suzuki DR650SEM6 (2026) STEERING STEM Diagram

#

Description
Price

1

BRACKET,UNDER

51410-32E01

$638.57

2

.BEARING (30X52X16)

09265-30035

$46.72

3

.BEARING (30X52X16)

09265-30035

$46.72

4

NUT STEERING

51631-28E00

$28.88

5

GUIDE,BRAKE HOSE LOWER

51453-32E10

$29.27

6

BOLT

51451-32E40

$6.23

7

HEAD,STEERING STEM

51311-32E00

$375.05

8

NUT

51353-32E00

$30.42

9

.WASHER,STEM HEAD (24.5X34X1.

51356-27C00

$6.75

10

HOLDER,HANDLE LOWER (BLACK)

56221-14330

Unavailable

11

BOLT

56321-28C00

$8.28

12

DAMPER,UPPER

56241-14A00

$33.65

13

RUBBER, LOWER

56242-14200

$36.08

14

WASHER (10.5X28X2.3)

09160-10035

$1.78

15

NUT

08319-3110A

$2.73

16

CLAMP, HANDLEBAR UPPER This part replaces 56211-29320.

56211-29320-291

$15.51

17

BOLT,HANDLE HOLD

51321-31D20

$3.37

18

CLIP

51288-32E00

$29.83

19

BOLT,BRACKET,UPP

51328-32E40

Unavailable

20

COVER,FORK RH

51530-32E00

$104.75

21

COVER,FORK LH

51540-32E00

Unavailable

22

DAMPER,HEAD LAMP HSG BRKT

51553-15D01

$5.00

23

BRACKET,FR SIDE REFLECTOR RH

35956-44B01

$11.83

24

BRACKET,FR SIDE REFLECTOR LH

35957-44B01

$11.83

25

CAP (OD:20)

09250-12016

$1.92
