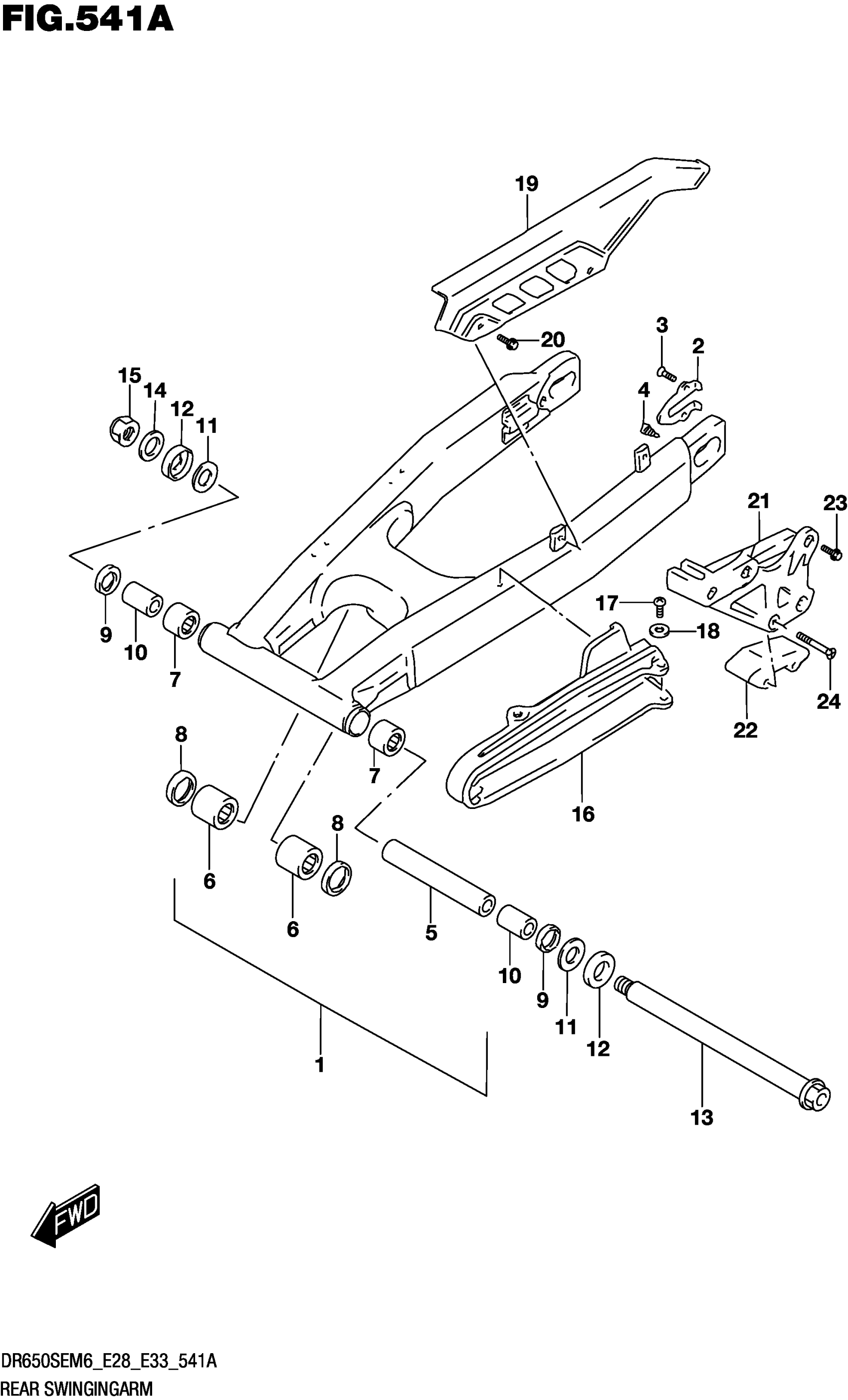

Find the part on the Rear Swingingarm diagram for your 2026 Suzuki DR650SEM6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Suzuki DR650SEM6 Rear Swingingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1,810.82

In stock

2

.PLATE RR SWING ARM AXLE

61128-29E00

1
Out of stock

3

.SCREW (5X8)

09126-05009

2
Out of stock

4

.STOPPER CHAIN ADJUSTER (10X1 | )

61431-13E10

2
Out of stock

5

.SPACER,SWGARM PIVOT,CENTER

61282-32E00

1
Out of stock

6

.BEARING (20X27X23.5)

09263-20071

2
Out of stock

7

.BEARING (22X29X30)

09263-22017

2

$21.98

In stock

8

SEAL,OIL (20X27X5)

09283-20031

2
Out of stock

9

.SEAL,OIL (21X29X4)

09285-22006

2
Out of stock

10

2

$31.55

In stock

11

WASHER

08211-17341

2

$2.73

In stock

12

COVER,DUST

61262-28C11

2

$7.00

In stock

13

AXLE,REAR

64711-08D00

1

$115.35

In stock

14

WASHER

08322-0116A

1

$2.00

In stock

15

NUT

09159-16007

1

$12.21

In stock

16

1

$45.69

In stock

17

SCREW

02142-0612A

3

$1.35

In stock

18

WASHER

09169-06057

3

$3.14

In stock

19

CASE, CHAIN

61311-01A03

1
Out of stock

20

BOLT (6X10)

09116-06096

2
Out of stock

21

GUIDE,CHAIN

61340-15E00

1

$79.33

In stock

22

DEFENSE,CHAIN GUIDE

61348-15E00

1

$29.55

In stock

23

BOLT

01550-0616A

3
Out of stock

24

SCREW

02122-0650A

2

$1.67

In stock
