Description

Price

1

GRIP L

57211-12D00

$15.29

2

LEVER ASSY,CLUTCH

57500-12E31

$119.75

3

.LEVER,CLUTCH

57421-12E30

$28.31

4

.BOLT,PIVOT

57531-12E30

$37.20

5

.WASHER

57533-12E30

$11.42

6

.SPACER

57532-12E30

$24.72

7

NUT

08319-2106B

$2.31

8

.ADJUSTER, WIRE

57441-45C01

$8.29

9

.NUT, LOCK

57442-45C01

$7.92

10

..BOLT

01547-0620B

$2.43

11

.SWITCH ASSY,CLUTCH

57560-13E02

$20.38

12-1

COVER,KNUCKLE LH (WHITE) | BODY COLOR:30H

57541-31D20-30H

$51.20

12-2

COVER,KNUCKLE LH (BLACK) | BODY COLOR:A8W

57541-31D20-YUD

$55.42

13

NUT

08313-1006B

$2.28

14

WASHER (6.5X20X1.6)

09160-06154

$2.17

15

WASHER (6.5X16X1.2)

09160-06019

$1.38

16

WASHER

09169-06055

$2.02

17

.NUT

08319-2106A

$1.89

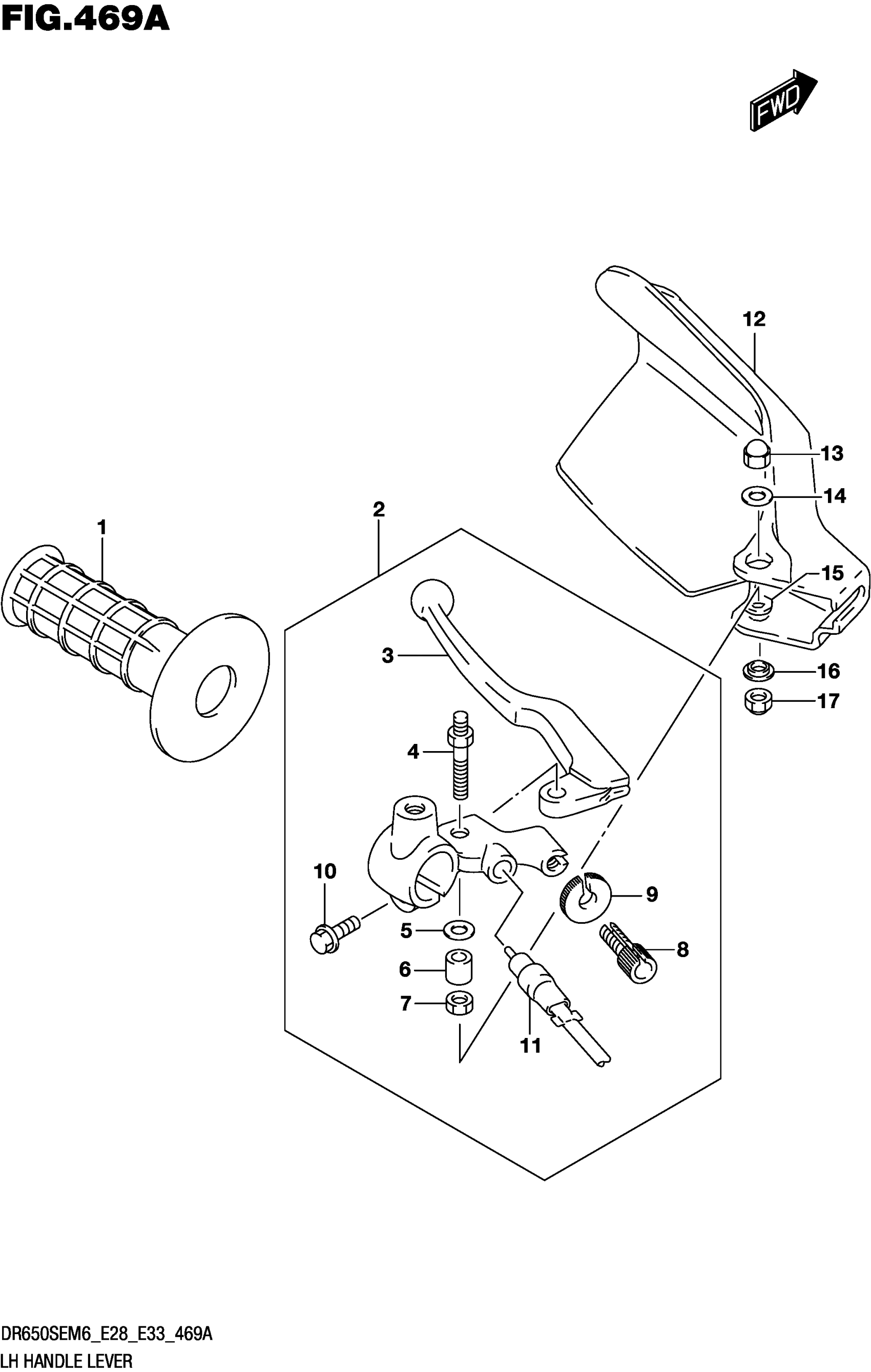

Suzuki DR650SEM6 (2026) LH HANDLE LEVER Diagram
