Description

Price

1

CYLINDER ASSY,REAR MASTER

69600-32E00

$348.28

2

.PISTON/CUP SET

69600-04821

$29.55

3

.BOOT

69691-04A00

$5.83

4

.YOKE

69692-13E00

$18.80

5

.ROD,PUSH

69670-27A30

$29.60

6

NUT This part replaces 69693-24A00.

69693-05A00

$1.86

7

.CONNECTOR

69672-00B20

$6.42

8

.O-RING

69686-34200

$2.80

9

.CIRCLIP

69674-00B20

$3.73

10

SCREW(6X16) This part replaces 09139-06024.

09139-06237

$2.35

11

PIN (8X20)

09200-08048

$2.80

12

WASHER (8.5X14X1.6)

09160-08090

$2.38

13

PIN

04111-2015A

$1.22

14

TANK ASSY,REAR BRAKE RESERVOI

69740-03D00

$85.67

15

.DIAPHRAGM

69667-00B20

$20.82

16

.PLATE

69668-00B20

$8.65

17

.CAP

69669-03D00

$25.55

18

BOLT

01550-0616A

$1.97

19

GUARD,RSVR TANK CAP

69743-14D10

$7.77

20

HOSE,RESERVOIR TANK

69730-32E00

$55.55

21

CLIP (ID:12)

09401-12404

$2.37

22

HOSE,REAR BRAKE

69480-32E02

$72.12

23

UNION (10X1.25X22)

09360-10062

$5.81

24

WASHER (10X15X1.5)

09161-10009

$1.83

25

GUIDE RR BRAKE (HOLE 1-5.5)

61196-27C50

$5.65

26

SCREW This part replaces 02142-0510A.

02142-0510B

$1.77

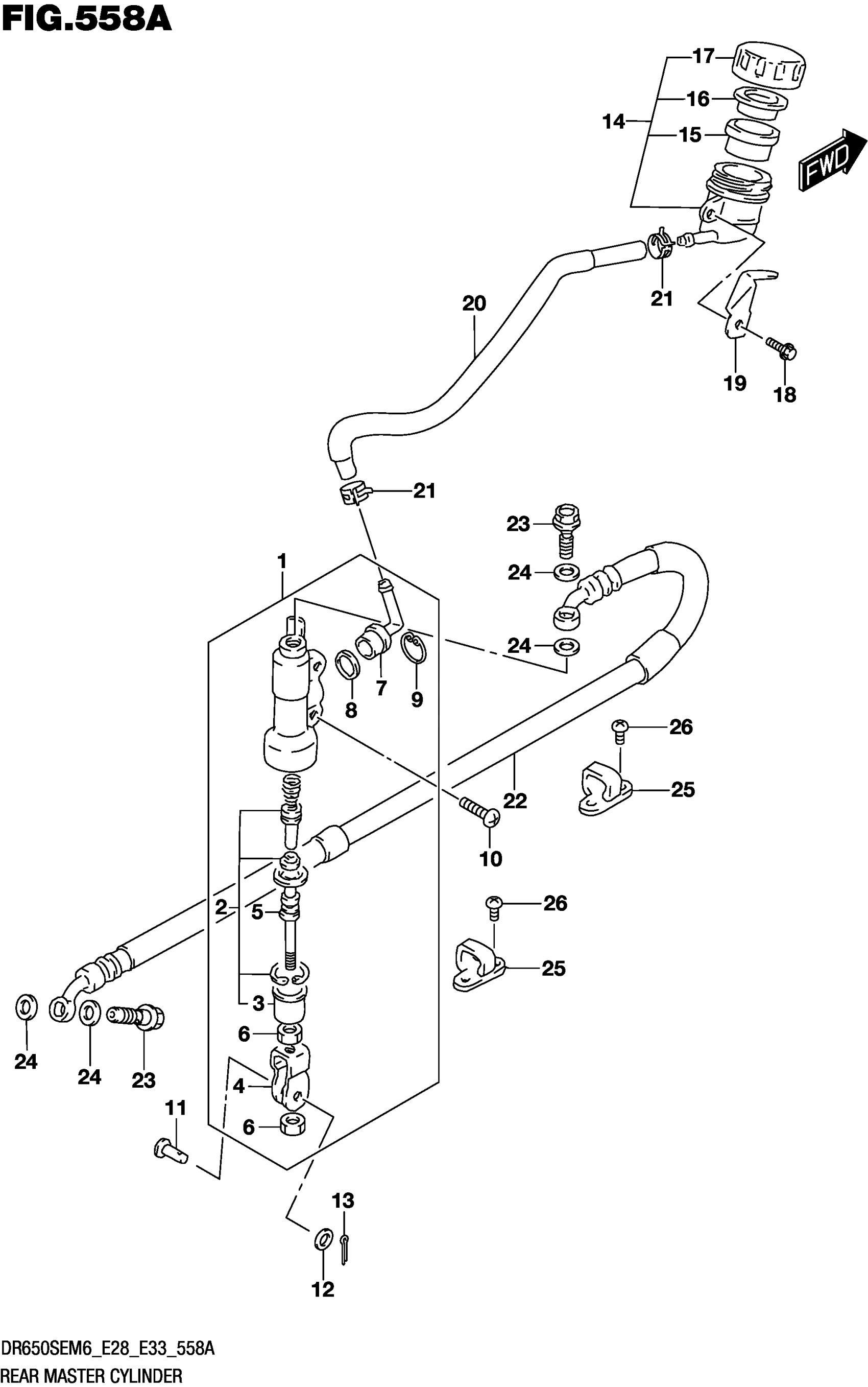

Suzuki DR650SEM6 (2026) REAR MASTER CYLINDER Diagram
