2026 Suzuki DR650SEM6 Front Master Cylinder Diagram

← All diagrams

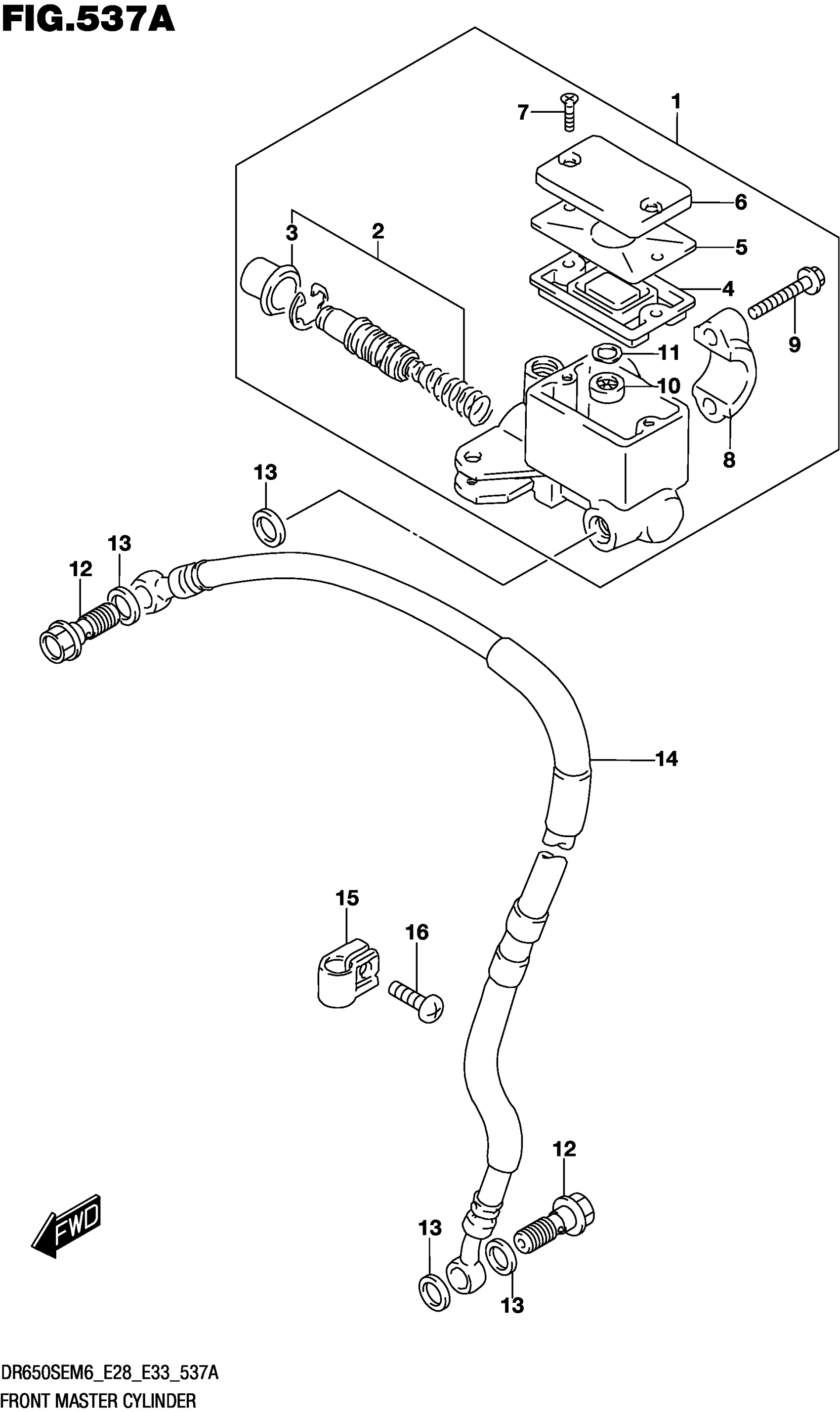

Find the part on the Front Master Cylinder diagram for your 2026 Suzuki DR650SEM6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Suzuki DR650SEM6 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, FRONT MASTER

59600-31D50

1
Out of stock

2

.PISTON/CUP SET

59600-04810

1
Out of stock

3

..BOOT

59666-44300

1
Out of stock

4

.DIAPHRAGM

59667-04700

1
Out of stock

5

.PLATE,DIAPHRAGM

59668-14F00

1
Out of stock

6

.CAP

59669-14F10

1
Out of stock

7

.SCREW

69689-49300

2
Out of stock

8

.HOLDER

59671-36500

1
Out of stock

9

.BOLT (6X22)

59675-02FA0

2
Out of stock

10

.SEPARATOR

59748-15400

1
Out of stock

11

.PLATE

59749-15400

1
Out of stock

12

UNION (10X1.25X22)

09360-10062

2
Out of stock

13

WASHER (10X15X1.5)

09161-10009

4
Out of stock

14

HOSE,FRONT BRAKE

59480-32E01

1
Out of stock

15

CLAMP BRAKE HOSE

58621-07A20

1

$4.17

In stock

16

SCREW

02142-0620A

1
Out of stock
← Front Caliper Rear Caliper →
