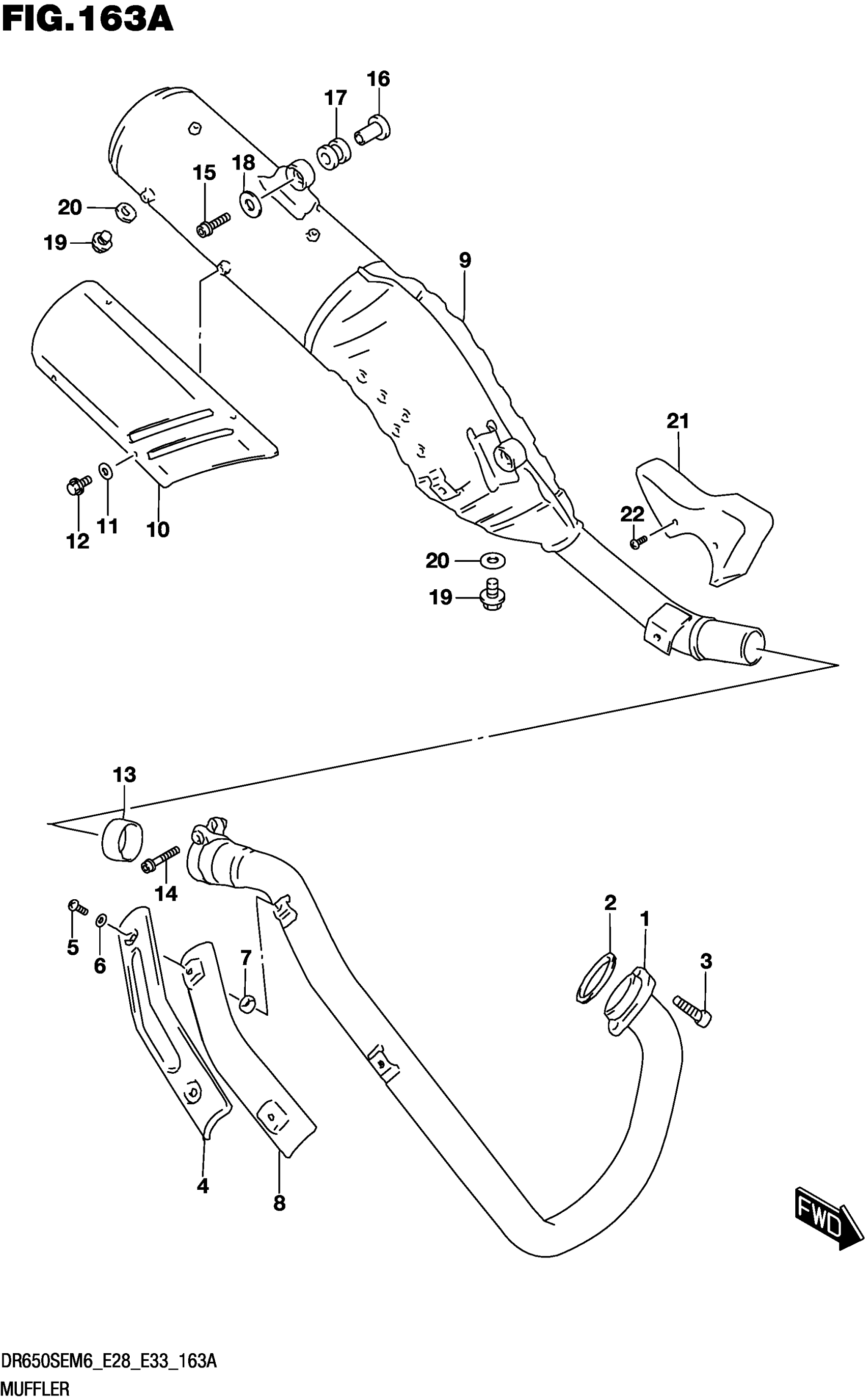

Suzuki DR650SEM6 (2026) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-32E20

$307.10

2

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

3

BOLT

07130-0825A

$3.04

4

COVER,EXH PIPE

14180-32E00

$40.68

5

SCREW (6X12)

09139-06091

$3.04

6

WASHER (6.5X13X1.0)

09160-06082

$1.49

7

GASKET (6X16X1.4)

09168-06122

$2.73

8

COVER,EXH PIPE INNER

14186-32E00

$15.53

9

BODY,MUFFLER (BLACK,MAROON,SI

14310-32E31-H01

$1,049.65

10

COVER,MUF

14781-32E00

$70.53

11

WASHER (6.5X13X1.0)

09160-06082

$1.49

12

SCREW (6X10)

09139-06078

$2.79

13

CONNECTOR,MUF

14771-32E00

$21.84

14

BOLT

07120-0835A

$3.55

15

BOLT (8X30)

09106-08193

$3.29

16

SPACER (8.6X12X17.5)

09180-08151

$5.18

17

CUSHION

09320-12043

$7.98

18

WASHER (8.5X28X1.5)

09160-08135

$2.35

19

PLUG (12X9)

09247-12104

$2.73

20

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

21

COVER, CONNECTOR CLAMP | 20

14782-32E01

$36.42

22

SCREW (6X10) | 21

09139-06078

$2.79
