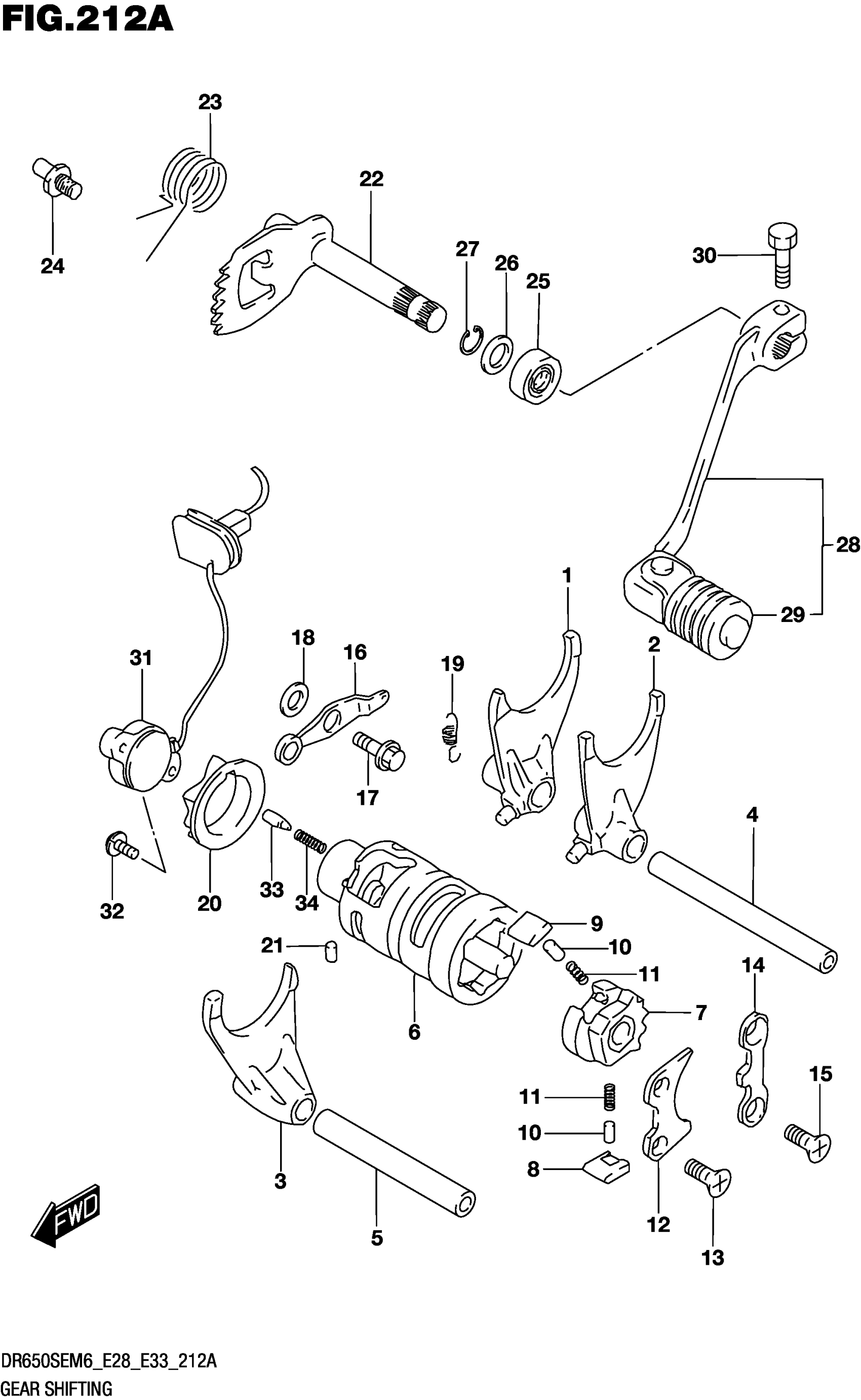

Suzuki DR650SEM6 (2026) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO,1

25211-37401

$90.20

2

FORK,GEAR SHIFT,NO,2

25221-37401

$90.20

3

FORK,GEAR SHIFT,NO.3

25231-14A01

$84.50

4

SHAFT,GEAR SHIFT FORK (L:95)

25411-20A11

Unavailable

5

SHAFT,GEAR SHIFT FORK (L:75)

25421-14A02

$23.07

6

CAM, GEAR SHIFTING

25310-37400

$135.23

7

GEAR, GEAR SHIFT CAM DRIVEN | :13)

25322-31310

$26.93

8

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

9

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

10

PIN (5X8)

09261-05003

$1.54

11

SPRING

09440-04003

$1.54

12

LIFTER,GEAR SHIFT POLE

25331-14A00

$7.64

13

SCREW (6X12)

09126-06011

$2.03

14

GUIDE, CAM

25341-40001

$12.17

15

SCREW (6X12)

09126-06011

$2.03

16

STOPPER

25350-37400

$15.42

17

BOLT (6X14.6)

09111-06054

$3.70

18

WASHER

08211-06141

$1.59

19

SPRING

09443-08020

$2.90

20

PLATE,GEAR SHIFT CAM STOPPER

25381-37401

$20.77

21

PIN

04221-04069

$2.12

22

SHAFT,GEAR SHIFT

25510-32E00

$98.40

23

SPRING

09444-26023

$4.83

24

STOPPER,GEAR SHIFT ARM

25671-01011

$4.48

25

OIL SEAL (12X22X9)

09285-12006

$6.32

26

WASHER

08212-12201

$1.72

27

CIRCLIP

08331-3112A

$1.78

28

LEVER ASSY,GEAR SHIFT

25600-32E00

$54.71

29

.RUBBER, GEAR SHIFT PEDAL

25652-03D00

$5.05

30

BOLT

01500-0620A

$1.78

31

BASE ASSY,NEUT SW TERMINAL

37720-32E10

$61.21

32

BOLT (5X16)

09106-05023

$2.92

33

PIN (5X15.5)

09209-05011

$2.20

34

SPRING

09440-04010

$1.54
