Description

Price

1

HUB,FRONT WHEEL

54111-31D01

$310.70

2

SPACER,FRONT HUB BEARING

54731-32E00

$18.50

3

BEARING,FRONT HUB

08123-6003B

$20.30

4

OIL SEAL (23X35X6)

09284-23001

$8.01

5

AXLE,FRONT

54711-05D01

$97.62

6

SPACER,FRONT AXLE LH

54751-05D00

$19.55

7

BOX ASSY,SPEEDOMETER GEAR

54600-05D01

$127.20

8

DISC,FRONT BRAKE

59220-32E00

$608.13

9

BOLT (8X20)

09106-08155

$3.76

10

TIRE,FRONT (90/90-21 54S)

55110-32E01

$81.89

11

TUBE ASSY,WHEEL INNER

55200-32E01

$58.75

12

PROTECTOR WHL INR TUBE

55261-32E01

$5.64

13

RIM,FRONT WHEEL (21X1.85)

55311-44B00

$488.28

14

SPOKE SET,FRONT WHEEL

55320-31D00

$103.33

15-1

BALANCER,WHEEL (20G)

55412-41F00

$8.12

15-2

BALANCER WHEEL (30G)

55413-41F00

$7.50

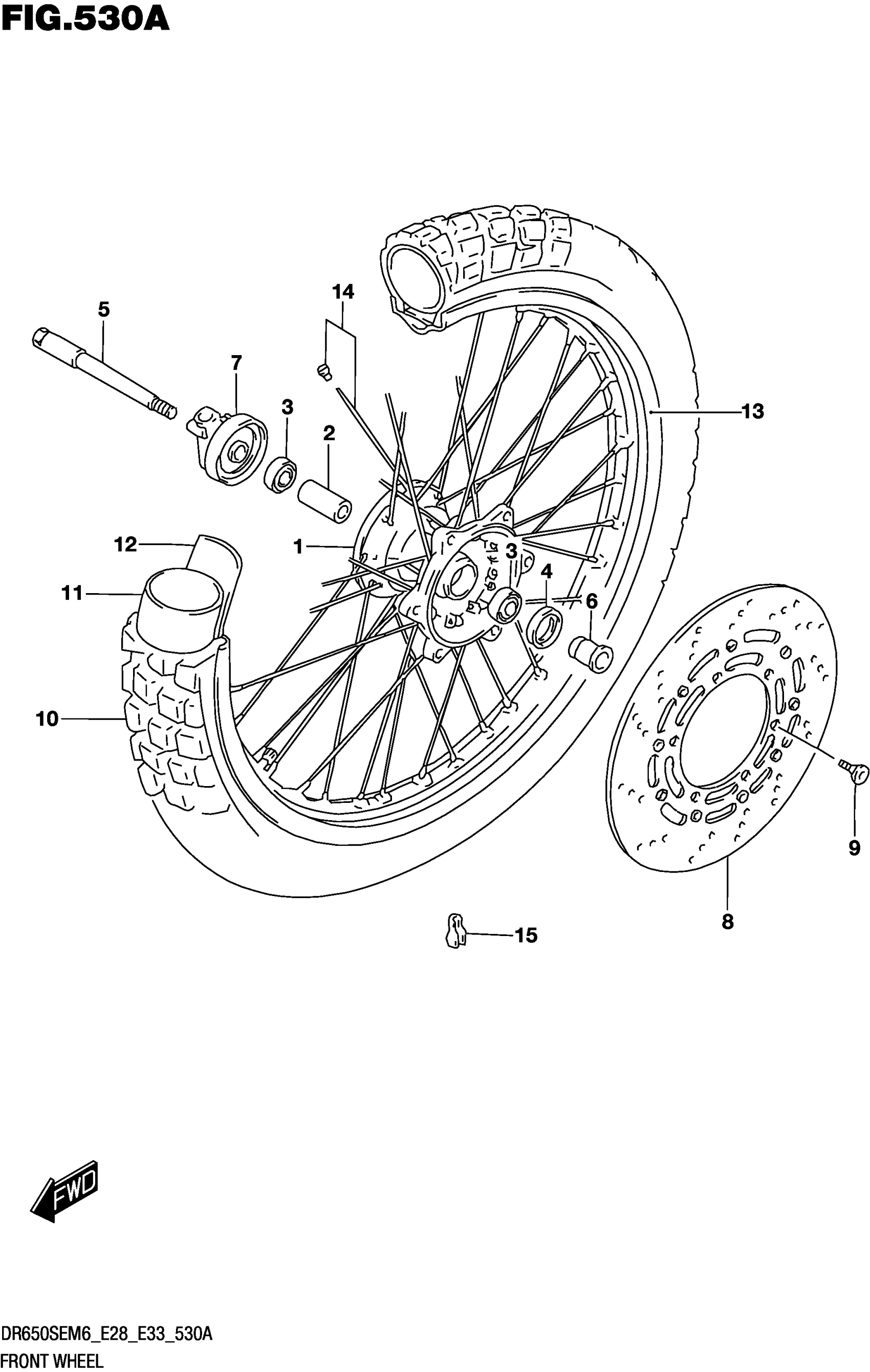

Suzuki DR650SEM6 (2026) FRONT WHEEL Diagram
