2026 Suzuki DR650SEM6 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2026 Suzuki DR650SEM6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

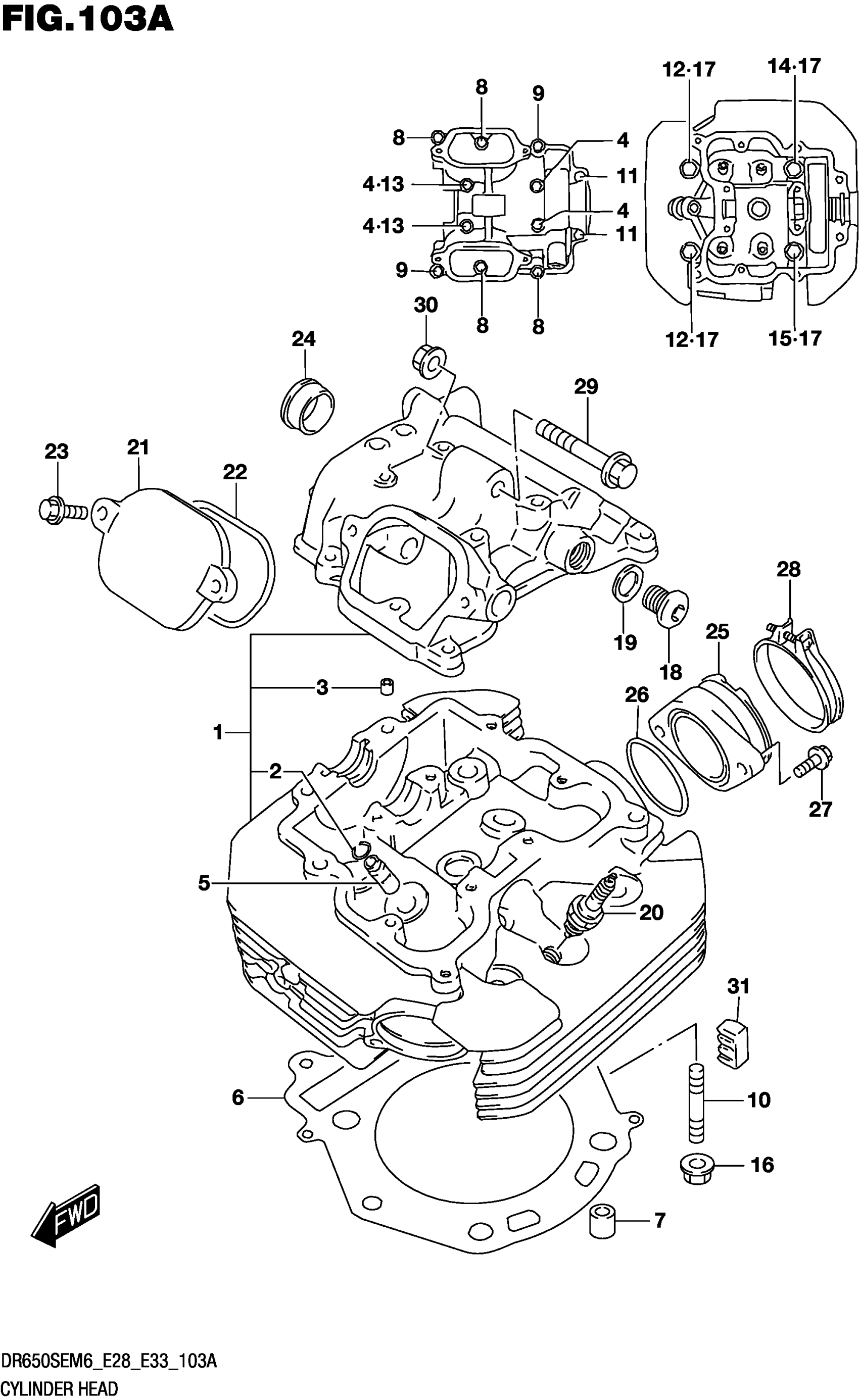

2026 Suzuki DR650SEM6 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY,CYLINDER

11100-32E30

1
Out of stock

2

.RING (10X85)

09381-10004

4
Out of stock

3

.PIN (8X11)

09206-08001

2
Out of stock

4

.BOLT (6X55)

09103-06102

4
Out of stock

5

GUIDE,VALVE (OS:0.3)

11115-32E70

4
Out of stock

6

.GASKET,CYLINDER HEAD

11141-32E00

1
Out of stock

7

PIN (10.4X13X18)

04211-13189

2
Out of stock

8

BOLT (6X25)

01550-0625A

4
Out of stock

9

BOLT (L:30)

01550-0630A

2
Out of stock

10

BOLT,STUD (L:30)

09108-08142

2
Out of stock

11

BOLT (6X115)

09103-06167

2
Out of stock

12

BOLT (10X180)

09103-10178

2
Out of stock

13

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

14

BOLT (L:190)

09103-10179

1
Out of stock

15

BOLT (L:200)

09103-10180

1
Out of stock

16

NUT

08316-1008A

2
Out of stock

17

GASKET (10.5X22X2)

09168-10017

4
Out of stock

18

PLUG (14X12)

09248-14011

2
Out of stock

19

GASKET (13.8X18.8X4.8)

09168-14002

2
Out of stock

20-1

SPARK PLUG (CR10E)

09482-00460

2
Out of stock

20-2

SPARK PLUG (U31ESR-N)

09482-00461

2
Out of stock

20-3

PLUG SPARK (CR9E)

09482-00458

2
Out of stock

20-4

SPARK PLUG (U27ESR-N)

09482-00459

2
Out of stock

21

CAP,INSPECTION

11175-44B00

2
Out of stock

22

.O RING,INSPECTION CAP

11177-44B01

2
Out of stock

23

BOLT (6X20)

01550-0620A

4
Out of stock

24

PLUG (OD:30)

09241-25007

1
Out of stock

25

PIPE,INTAKE

13110-32E00

1

$37.52

In stock

26

.O-RING (D:2.4,ID:46.0)

09280-46002

1
Out of stock

27

SCREW (6X16)

09126-06014

2
Out of stock

28

.CLAMP

09402-58208

1
Out of stock

29

BOLT (8X53)

09103-08332

1
Out of stock

30

NUT

08319-3108A

1
Out of stock

31

PAD,CYLINDER HEAD RUBBER

11151-32E00

1
Out of stock
← Cylinder Gasket SET →
