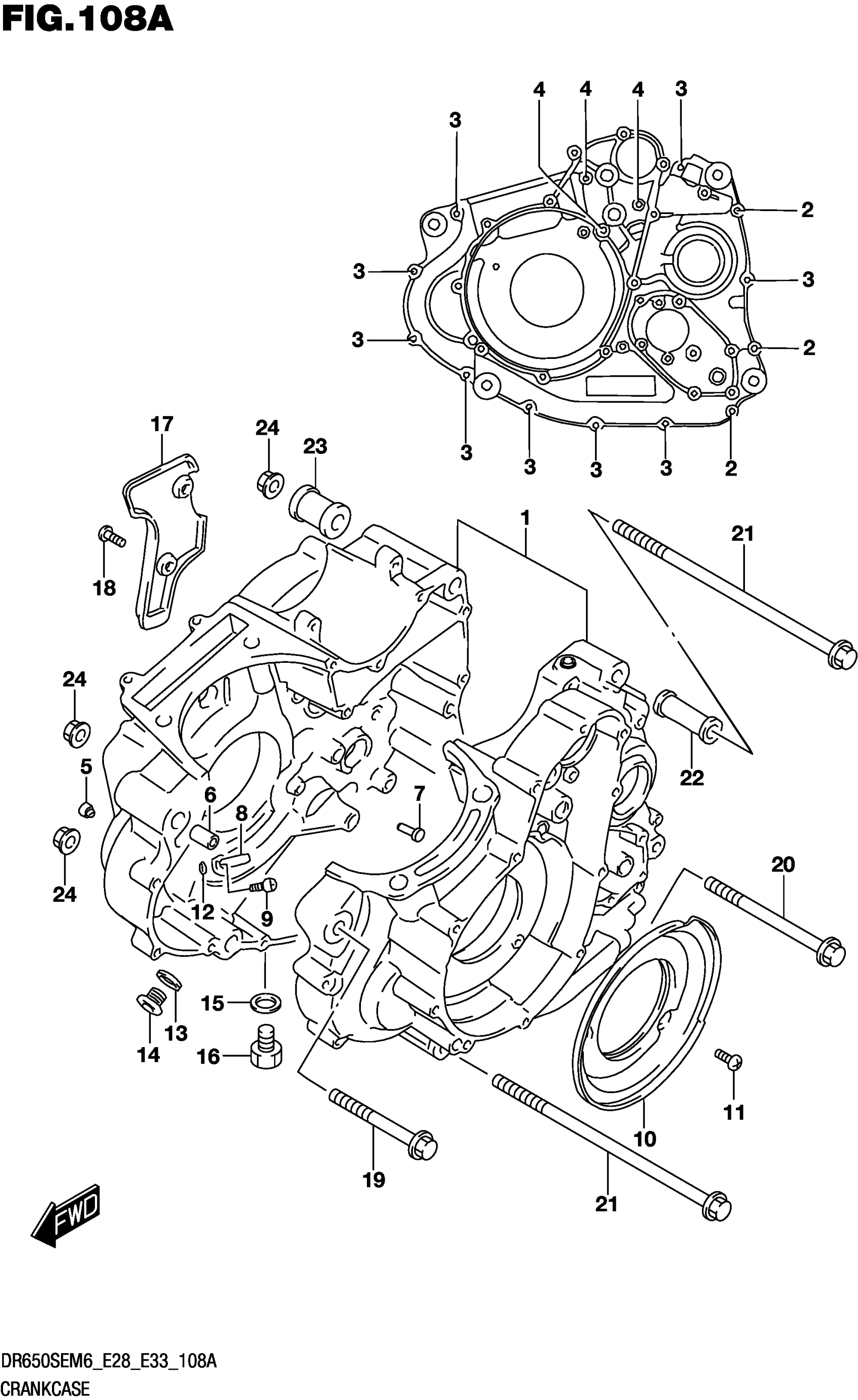

Suzuki DR650SEM6 (2026) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11300-32882

$1,128.62

2

BOLT

01547-0660A

$2.80

3

BOLT

01547-0640A

$2.31

4

.BOLT

01547-0680A

$3.58

5

.JET,OIL GALLERY

11180-43410

Unavailable

6

.PIN (L:27)

09202-10006

Unavailable

7

.RIVET (L:11.0)

09223-04004

Unavailable

8

JET,PISTON COOLING

11390-04F00

$26.03

9

BOLT (6X12)

09106-06075

$2.50

10

SEPARATOR,CRANKCASE OIL

11323-32E00

$16.45

11

SCREW

02112-0612A

$1.43

12

O-RING (D:1.2,ID:4)

09280-04004

$1.76

13

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

14

PLUG (14X12)

09248-14011

$2.80

15

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

16

PLUG (14X12)

09247-14026

$3.38

17

COVER,BREATHER

11317-32E00

$15.83

18

SCREW

02112-0612A

$1.43

19

BOLT (10X100)

09103-10110

$9.15

20

BOLT (10X130)

09103-10237

$10.53

21

BOLT (10X235)

09103-10239

$22.70

22

SPACER (L:65)

11610-45410

Unavailable

23

SPACER,ENGINE MOUNT,L27 (L:27

11610-20C00

$17.40

24

NUT (M10)

09159-10115

$3.21
