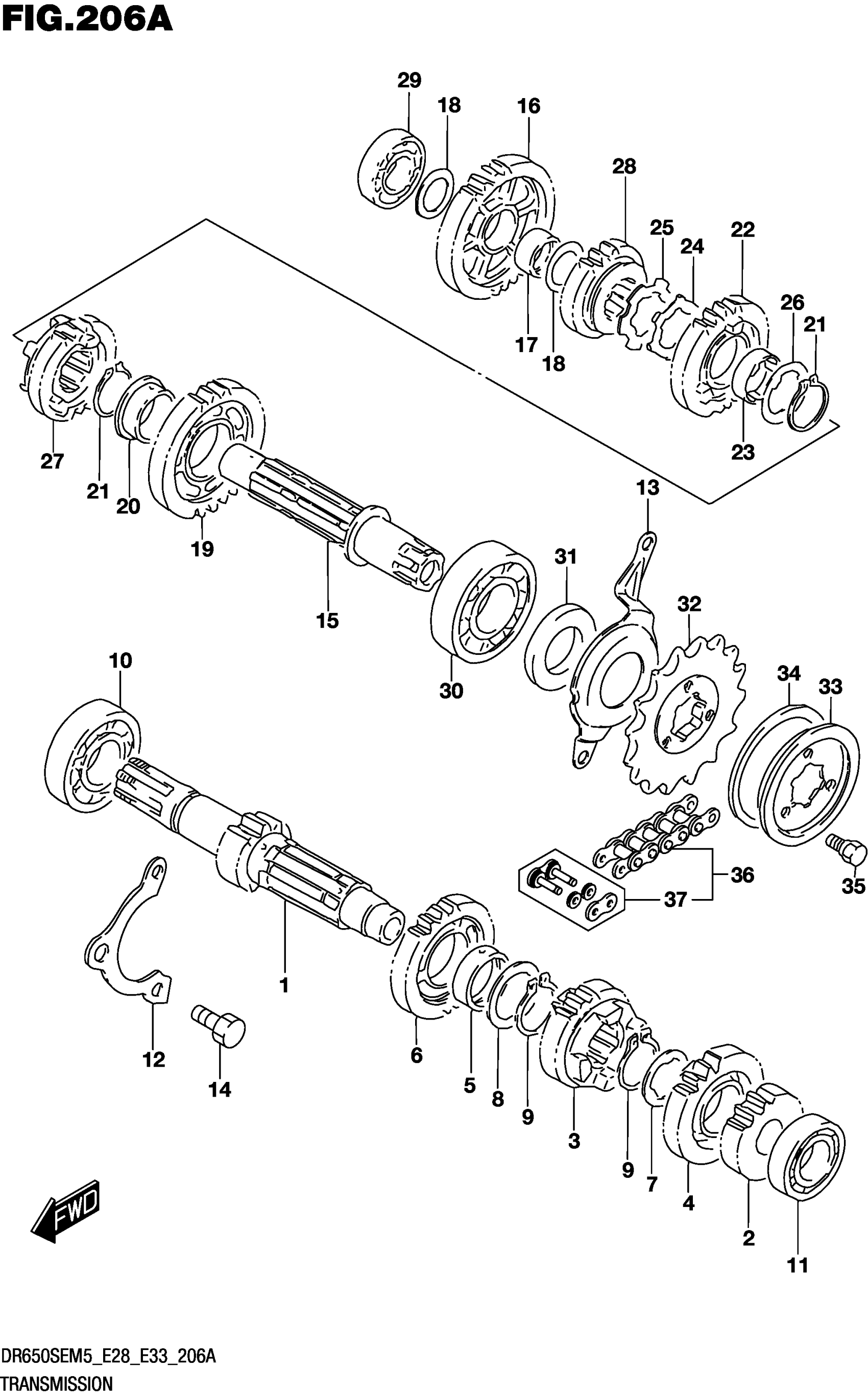

Suzuki DR650SEM5 (2025) TRANSMISSION Diagram

#

Description
Price

1

SHAFT SET,CNTR (NT:12)

24120-14810

$268.15

2

GEAR,2ND DRIVE (NT:16)

24221-14A10

$115.77

3

GEAR,3RD DRIVE (NT:21)

24231-12D21

$119.72

4

GEAR,4TH DRIVE (NT:21)

24241-14A10

$115.77

5

BUSH

24252-19F00

$17.12

6

GEAR,5TH DRIVE (NT:23)

24251-14A10

$111.52

7

WASHER LOCK (25.1X31X1.0)

09167-25012

$3.70

8

SHIM (25X34X1)

09181-25167

$3.12

9

SNAP RING

09380-25003

$3.04

10

BEARING (22X56X16)

09262-22028

$77.48

11

BEARING (17X40X12)

09262-17046

$38.05

12

RETAINER,CNTR SHAFT BRG

24741-14A00

$9.17

13

RETAINER,DRIVE SHAFT OIL SEAL

24751-32E00

$16.57

14

BOLT

01500-0816A

$2.22

15

SHAFT,DRIVE

24130-14A10

$202.92

16

GEAR,1ST DRIVEN (NT:29)

24311-14A01

$113.18

17

BUSH (20X24X13)

09300-20032

$17.50

18

SHIM (20X30X1)

09181-20195

$2.60

19

GEAR,2ND DRIVEN (NT:26)

24321-14A10

$115.77

20

BUSH

09301-25002

$18.35

21

SNAP RING

09380-25003

$3.04

22

GEAR,3RD DRIVEN (NT:26)

24331-14A20

$119.72

23

BUSH,DRIVEN GEAR

24332-24510

$18.67

24

WASHER (25.1X37X2.5)

09169-25001

$2.70

25

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

26

WASHER,LOCK (25.5X35X1)

09167-25016

$3.72

27

GEAR,4TH DRIVEN (NT:21)

24341-14A10

$96.59

28

GEAR,5TH DRIVEN (NT:19)

24351-14A10

$111.52

29

BEARING (20X42X12)

09262-20059

$25.60

30

BEARING (25X62X17)

09262-25125

$59.09

31

OIL SEAL (25X44X7)

09283-25108

$10.63

32

SPROCKET,ENGINE (NT:15)

27511-31D00

$37.27

33

PLATE,ENGINE SPROCKET

27512-44B00

$6.49

34

DAMPER

27517-37400

$14.20

35

BOLT (6X13)

09111-06039

$6.02

36

CHAIN, DRIVE

27600-32C90-110

$231.82

37

.JOINT SET, CHAIN

27620-32C90

$15.42
