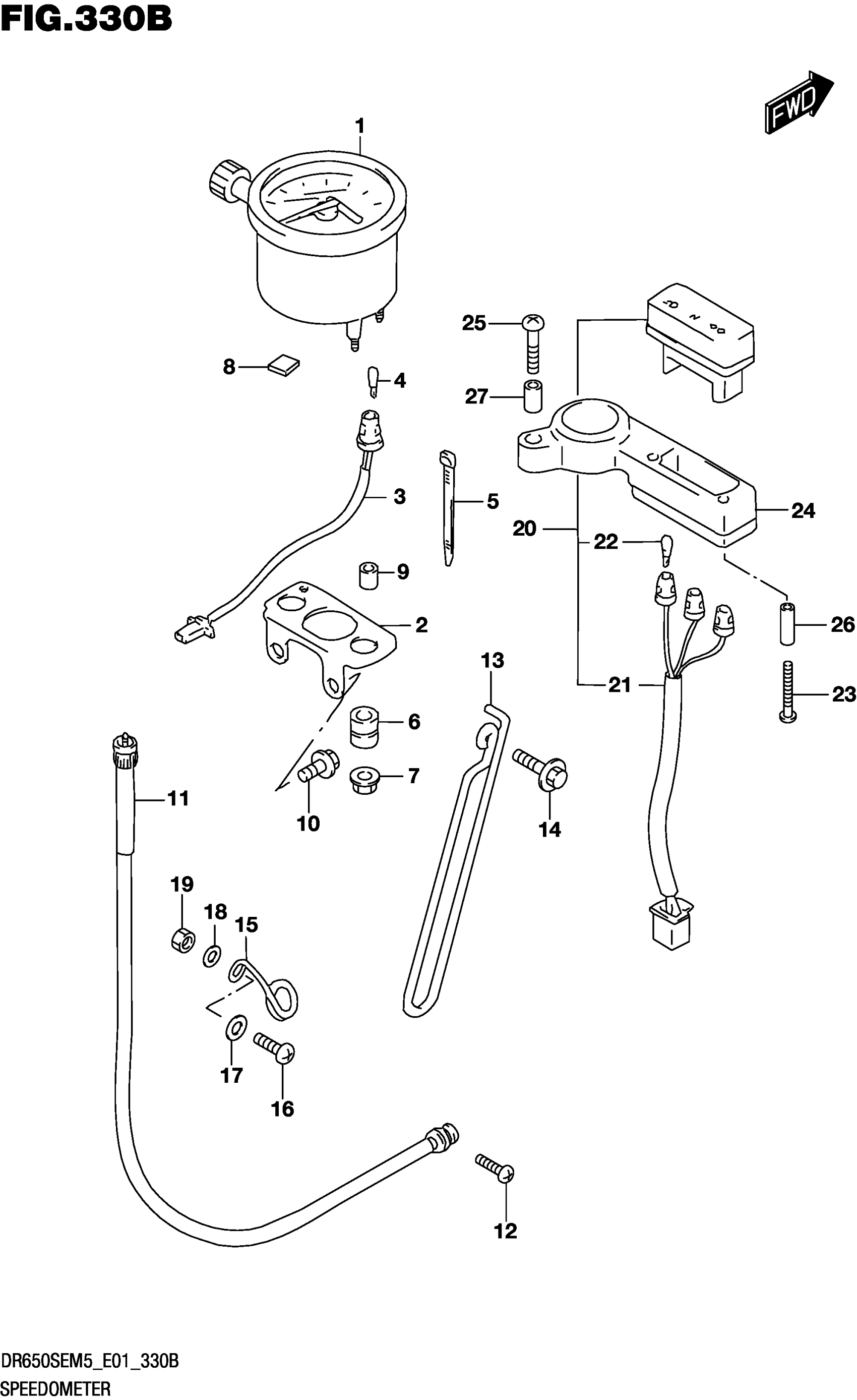

Suzuki DR650SEM5 (2025) SPEEDOMETER (E28) Diagram

#

Description
Price

1

SPEEDOMETER (KILO)

34110-32EA0

Unavailable

2

BRACKET,METER

34950-32E00

$18.80

3

CORD ASSY

34170-49J00

Unavailable

4

.BULB (12V1.7W)

09471-12108

$3.42

5

CLAMP (L:100)

09407-10404

$2.90

6

CUSHION

34955-48G00

Unavailable

7

NUT

09159-05049

$2.30

8

CUSHION

33652-07G10

$2.32

9

SPACER,SPEEDOMETER

34965-32E00

$2.00

10

BOLT

01550-0612A

$1.97

11

CABLE ASSY SPEEDOMETER

34910-32E00

$41.17

12

.SCREW

02112-0516B

$1.93

13

GUIDE METER CABLE NO.2

34938-14D30

$10.63

14

BOLT (6X20)

09116-06167

$2.19

15

GUIDE,SPEEDOMETER CABLE

34938-14D21

$8.65

16

SCREW

02142-0616B

$1.78

17

WASHER (6.5X18X1.6)

09160-06109

$1.49

18

WASHER (6.3X16X1)

09169-06053

$1.49

19

NUT

08310-0006B

$2.34

20

BOX ASSY,PILOT LAMP

36380-32E10

$175.98

21

.SOCKET & CORD

36394-32E00

$44.48

22

.BULB (13.5V2W)

09471-12118

$2.46

23

SCREW

03511-1435B

$2.58

24

HOLDER,PILOT BOX

36382-32E00

$19.07

25

SCREW (6X25)

09139-06029

$5.36

26

SPACER (4.5X6.5X25)

09180-04024

$5.00

27

SPACER (6.1X8X15.5)

09180-06251

$2.44
