2025 Suzuki DR650SEM5 RH Handle Lever Diagram

← All diagrams

Find the part on the RH Handle Lever diagram for your 2025 Suzuki DR650SEM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

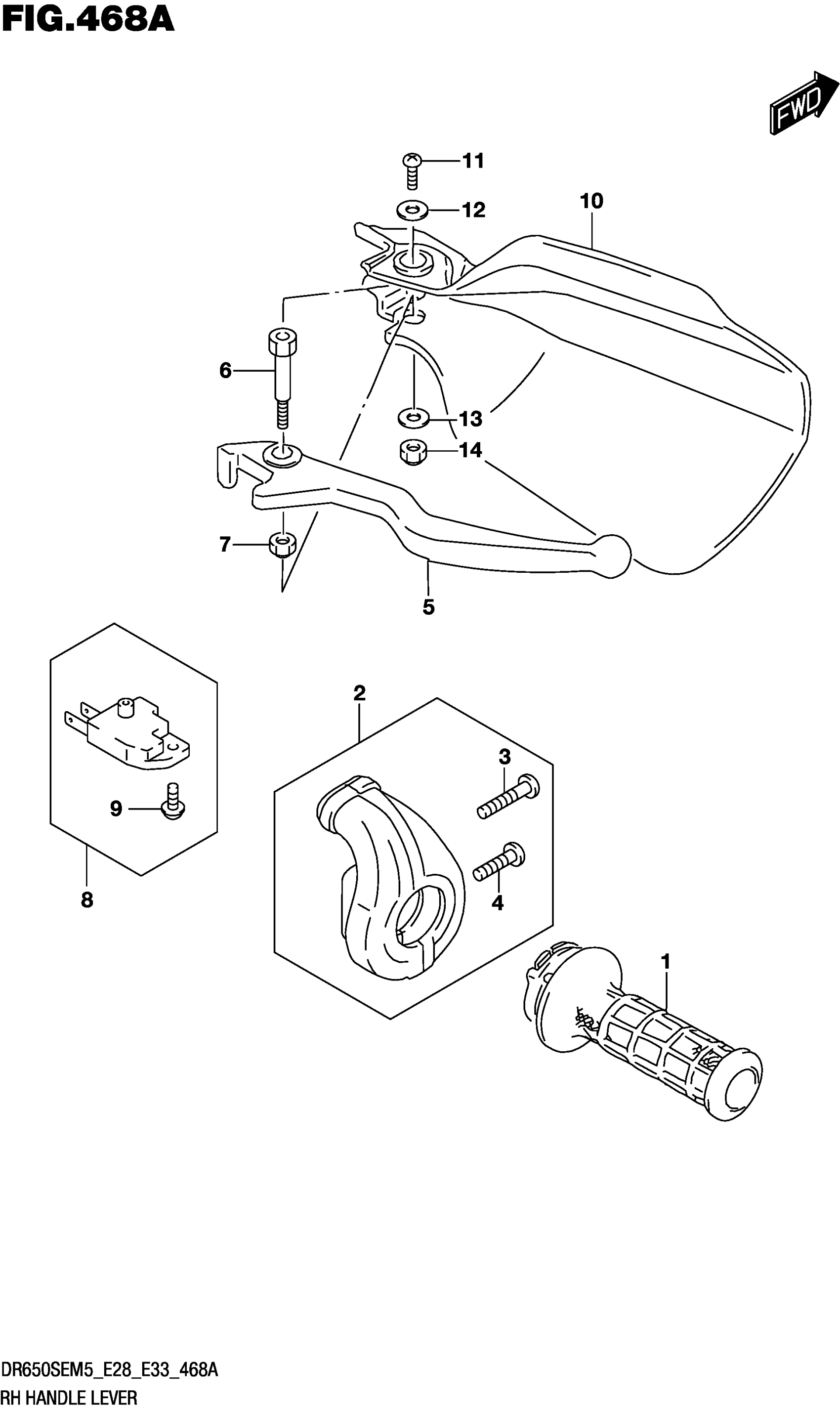

2025 Suzuki DR650SEM5 RH Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP THROTTLE

57110-12D11

1
Out of stock

2

CASE ASSY THROTTLE

57100-14D00

1
Out of stock

3

.SCREW

02112-0525B

1
Out of stock

4

.SCREW

02112-0520B

1
Out of stock

5

LEVER,BRAKE

57421-13001

1
Out of stock

6

BOLT,BRAKE LEVER PIVOT

57431-05D00

1
Out of stock

7

NUT,LEVER PIVOT

57433-09F00

1
Out of stock

8

SWITCH ASSY,FR BRAKE

57460-14J02

1
Out of stock

9

.SCREW,WITH WASHER (4X12)

57465-17C00

1
Out of stock

10-1

COVER,KNUCKLE RH (WHITE) | BODY COLOR:30H

57341-05D10-30H

1
Out of stock

10-2

COVER,KNUCKLE RH (GRAY) | BODY COLOR:A8W

57341-05D10-YUD

1
Out of stock

11

SCREW

02142-0510B

1
Out of stock

12

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

1
Out of stock

13

.WASHER (6.5X16X1.6)

09160-06130

1
Out of stock

14

.NUT

08319-2106A

1
Out of stock
