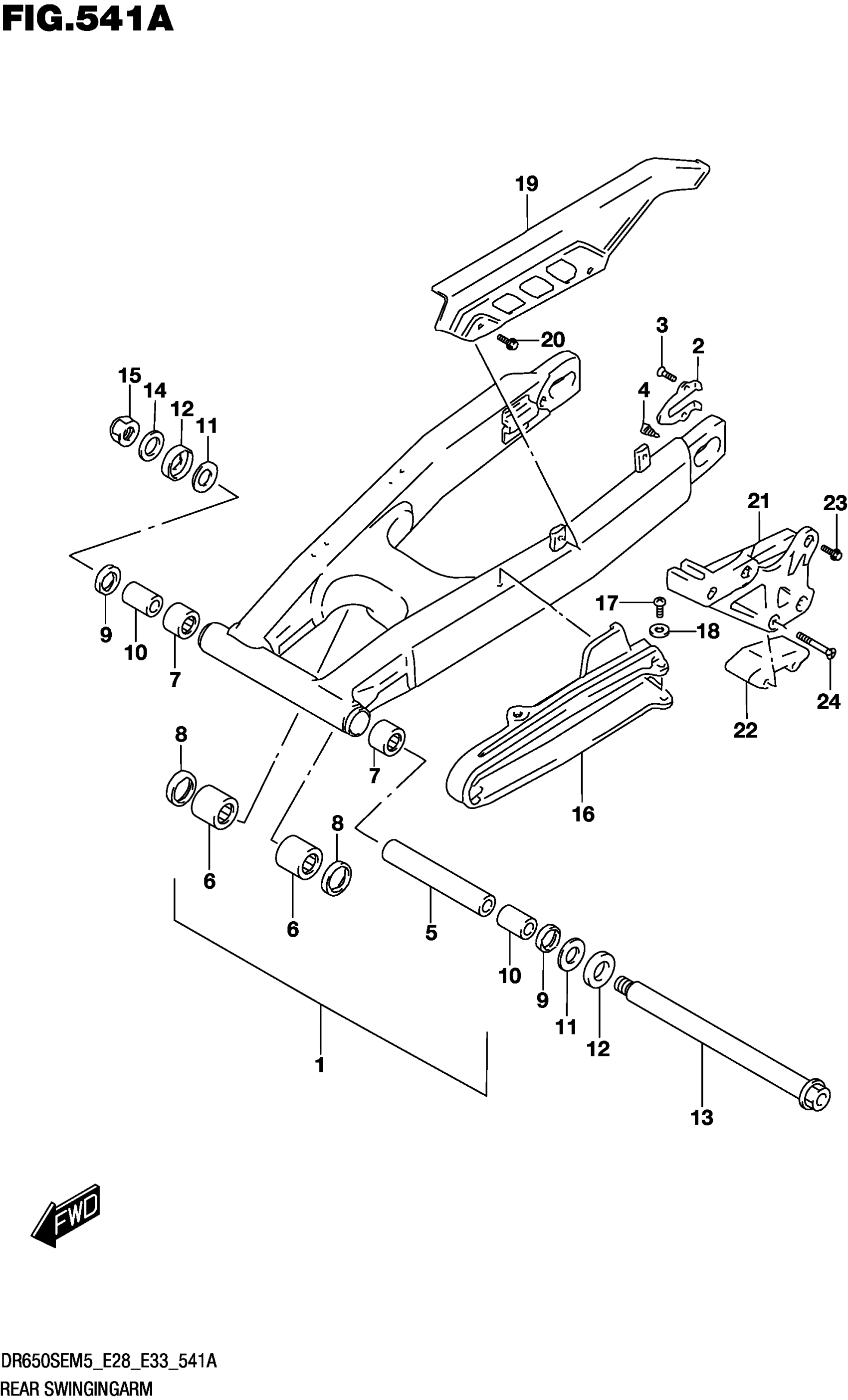

Suzuki DR650SEM5 (2025) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR

61000-32E30

$1,810.82

2

.PLATE RR SWING ARM AXLE

61128-29E00

$24.33

3

.SCREW (5X8)

09126-05009

$2.29

4

.STOPPER CHAIN ADJUSTER (10X1 | )

61431-13E10

$7.88

5

.SPACER,SWGARM PIVOT,CENTER

61282-32E00

Unavailable

6

.BEARING (20X27X23.5)

09263-20071

$23.72

7

.BEARING (22X29X30)

09263-22017

$20.38

8

SEAL,OIL (20X27X5)

09283-20031

$4.73

9

.SEAL,OIL (21X29X4)

09285-22006

$3.46

10

SPACER,SWGARM PIVOT,BRG

61251-14D00

$31.55

11

WASHER

08211-17341

$2.53

12

COVER,DUST

61262-28C11

$6.42

13

AXLE,REAR

64711-08D00

$115.35

14

WASHER

08322-0116A

$1.86

15

NUT

09159-16007

$11.37

16

BUFFER,CHAIN TOUCH DEFENSE

61273-13E01

$41.95

17

SCREW

02142-0612A

$1.37

18

WASHER

09169-06057

$2.92

19

CASE, CHAIN

61311-01A03

$59.68

20

BOLT (6X10)

09116-06096

$2.28

21

GUIDE,CHAIN

61340-15E00

$79.33

22

DEFENSE,CHAIN GUIDE

61348-15E00

$29.55

23

BOLT

01550-0616A

$1.97

24

SCREW

02122-0650A

$1.55
