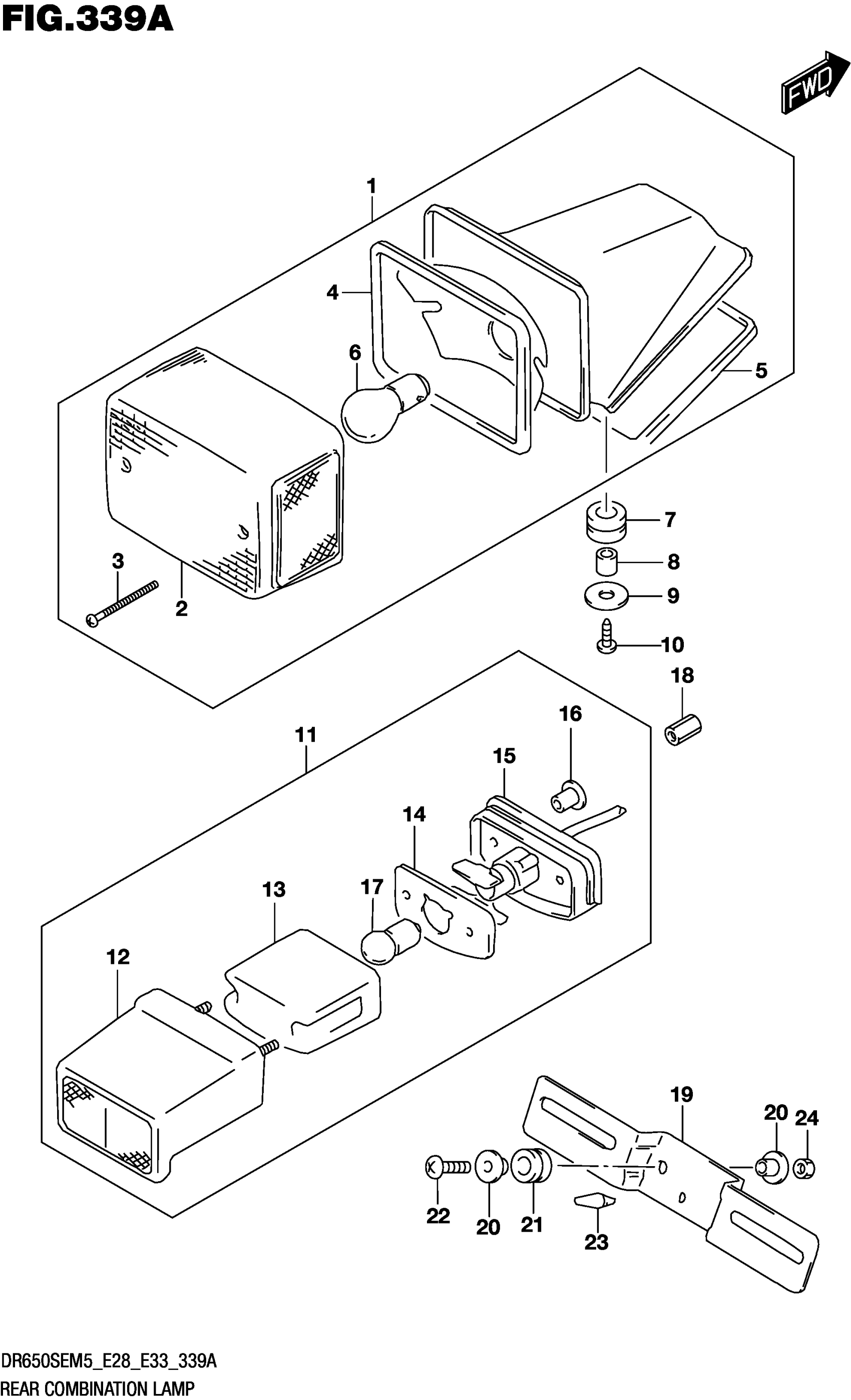

Suzuki DR650SEM5 (2025) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB

35710-32E30

$153.40

2

.LENS,TAIL

35712-14D30

$62.32

3

.SCREW (4X45)

09125-04501

$3.16

4

.GASKET LENS | FOR LENS

35713-14D30

$7.88

5

.GASKET | FOR BASE

35717-32E30

$5.73

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

7

CUSHION (9X18X9.5)

09320-09016

$1.97

8

SPACER (6.1X8X9.5)

09180-06248

$2.12

9

.WASHER (6.5X20X1.6)

09160-06088

$1.65

10

SCREW

02142-0625A

$1.49

11

LAMP ASSY,LICENSE

35910-32E30

$177.13

12

.COVER,LICENSE

35917-17C00

$77.50

13

.LENS

35912-38A30

$20.45

14

.GASKET

35913-38A30

$3.37

15

.CUSHION

35761-24B31

Unavailable

16

.SPACER

35766-24B30

$3.37

17

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

18

NUT

09140-04006

$4.86

19

BRACKET,LICENSE PLATE

35927-26E30

$14.20

20

WASHER (6.1X17.0X4.8)

09169-06073

$3.42

21

CUSHION (9X18X9.5)

09320-09016

$1.97

22

SCREW

02142-0620A

$1.49

23

CUSHION

09321-06023

$2.50

24

NUT

08310-0006A

$1.84
