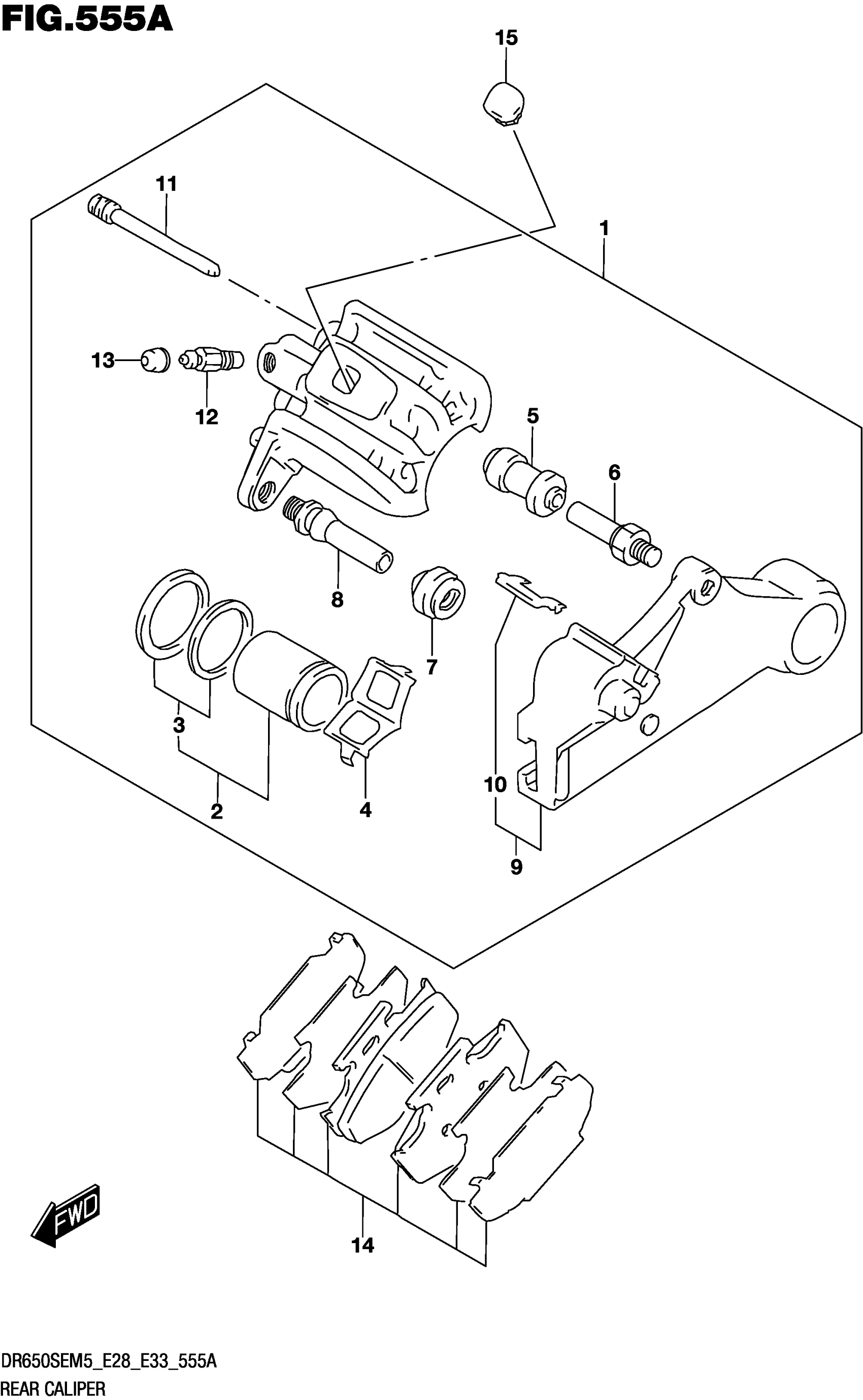

Suzuki DR650SEM5 (2025) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,REAR

69100-32E00-999

$287.55

2

.PISTON SET

69100-43830

$52.92

3

..SEAL SET,PISTON

69100-13810

$9.61

4

.SPRING,PAD

59315-27C10

$11.68

5

.BOOT

59386-13A00

$7.95

6

.BOLT

59382-27C30

$9.07

7

.BOOT

59303-14500

$5.52

8

.PIN

59305-27C00

$23.48

9

.BRACKET

69150-32E00

$151.08

10

..RETAINER,BRACKET

69113-43D00

$8.83

11

.PIN HANGER

69345-43D00

$11.55

12

.BLEEDER

59121-01A00

$8.73

13

.CAP,BLEEDER

59122-46H00

$4.43

14

PAD & SHIM SET

69100-32830

$59.36

15

COVER,REAR CALIPER BODY

69171-14D00

Unavailable
