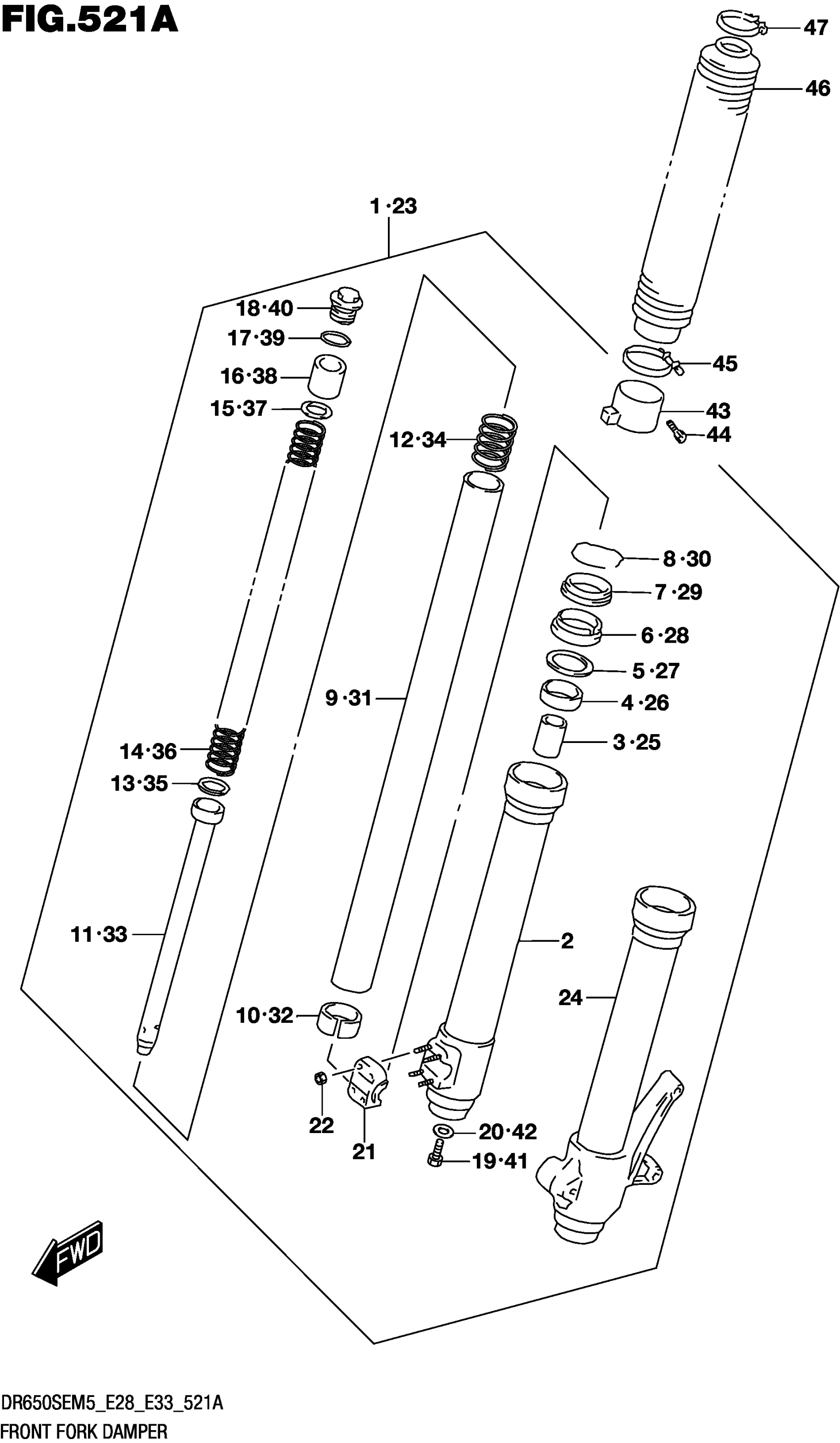

Suzuki DR650SEM5 (2025) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,FR FORK,R

51103-32E01

$1,197.30

2

.TUBE,OUTER RH

51130-32E00

$615.05

3

.PIECE,OIL LOCK

51195-06C00

$16.76

4

.METAL,SLIDE

51167-40C00

$16.13

5

.WASHER

51158-14200

$5.05

6

.SEAL,OIL

51153-14330

$13.63

7

.SEAL,DUST

51173-14330

$10.53

8

.RING,STOPPER

51156-14200

$5.05

9

.TUBE,INNER

51110-32E00

$583.83

10

..PISTON

51121-40C00

$21.09

11

.CYLINDER

51190-32E00

Unavailable

12

..SPRING,REBOUND

51177-14330

$10.32

13

..RING,PISTON

51196-31D00

$7.51

14

.SPRING

51171-32E00

Unavailable

15

.WASHER

51172-32E00

$5.70

16

.SPACER

51176-32E00

$40.33

17

.O RING

51117-14201

$2.47

18

.CAP,FORK

51351-31D00

$65.60

19

.BOLT,FORK CYLINDER (10X25)

51147-16510

$4.34

20

.GASKET

51148-41310

$2.26

21

.HOLDER,AXLE RH

51132-32E00

$63.30

22

.NUT,HOLDER,AXLE

51168-32E40

$11.20

23

DAMPER ASSY,FR FORK,L

51104-32E01

$1,197.30

24

.TUBE,OUTER LH

51140-32E00

$615.05

25

.PIECE,OIL LOCK

51195-06C00

$16.76

26

.METAL,SLIDE

51167-40C00

$16.13

27

.WASHER

51158-14200

$5.05

28

.SEAL,OIL

51153-14330

$13.63

29

.SEAL,DUST

51173-14330

$10.53

30

.RING,STOPPER

51156-14200

$5.05

31

.TUBE,INNER

51110-32E00

$583.83

32

..PISTON

51121-40C00

$21.09

33

.CYLINDER

51190-32E00

Unavailable

34

..SPRING,REBOUND

51177-14330

$10.32

35

..RING,PISTON

51196-31D00

$7.51

36

.SPRING

51171-32E00

Unavailable

37

.WASHER

51172-32E00

$5.70

38

.SPACER

51176-32E00

$40.33

39

.O RING

51117-14201

$2.47

40

.CAP,FORK

51351-31D00

$65.60

41

.BOLT,FORK CYLINDER (10X25)

51147-16510

$4.34

42

.GASKET

51148-41310

$2.26

43

GUIDE,BOOT

51203-32E01

$40.00

44

BOLT,GUIDE,BOOT

51579-32E40

Unavailable

45

BAND,BOOT,LOWER

51576-00B00

$12.48

46

BOOT,FRONT FORK

51571-32E01

$64.43

47

BAND,BOOT

51575-32E00

$15.83
