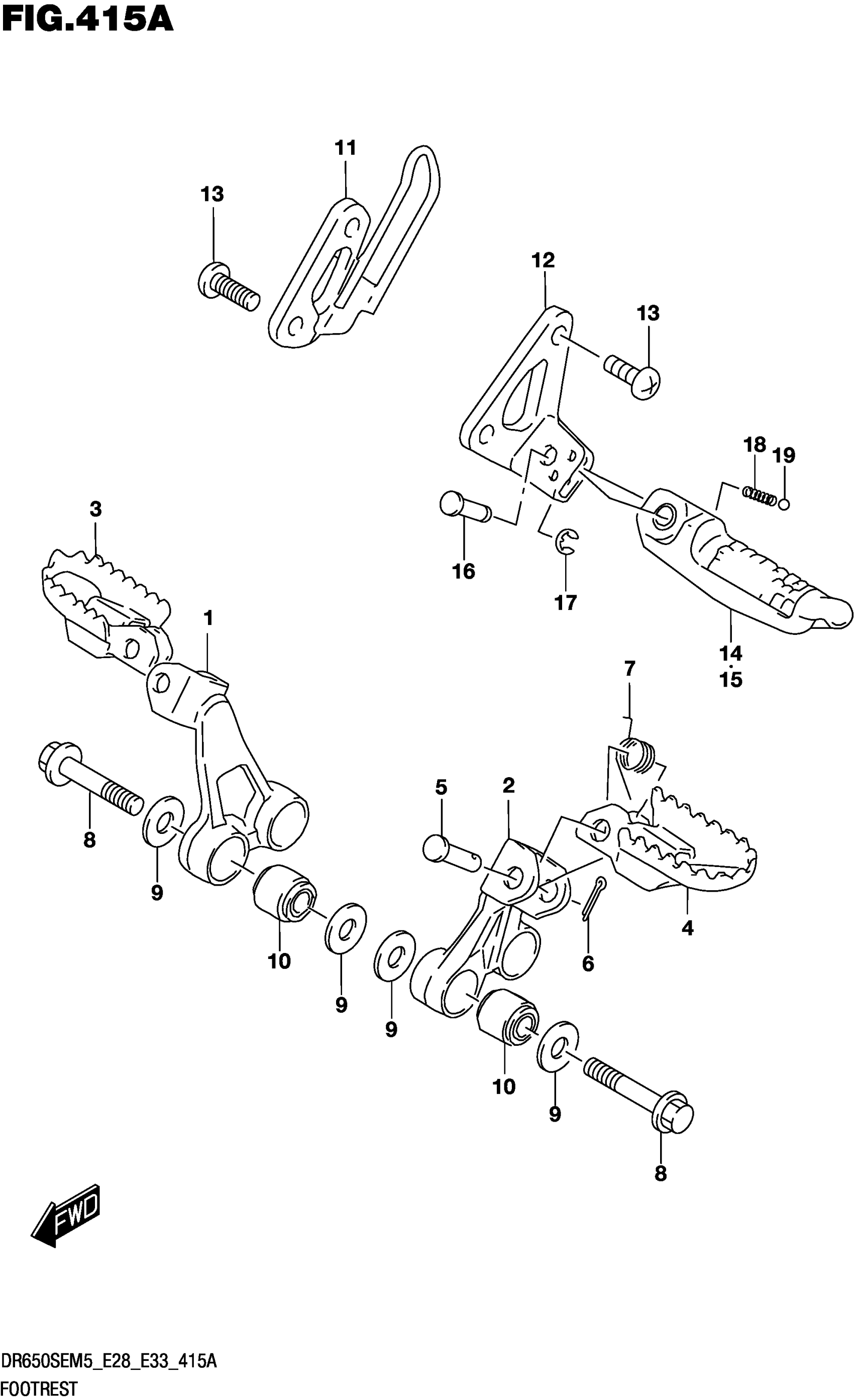

Suzuki DR650SEM5 (2025) FOOTREST Diagram

#

Description
Price

1

BRACKET,FRONT FOOTREST RH

43510-32E00

$124.28

2

BRACKET,FRONT FOOTREST LH

43520-32E00

$124.28

3

FOOTREST, FR RH (BLACK)

43550-03B00-019

$40.88

4

FOOTREST, FR LH (BLACK)

43560-03B00-019

$41.68

5

PIN

09200-10013

$2.66

6

PIN

04111-2020A

$1.49

7

SPRING

09448-15004

$2.34

8

BOLT (10X50)

09103-10232

$5.65

9

WASHER (10.1X23X2.3)

09160-10124

$2.35

10

BUSH (10.2X25X19)

09319-10033

$6.83

11

BRACKET,PILLION FOOT RH (BLAC | )

43650-32E00-019

$90.20

12

BRACKET,PILLION FOOT LH (BLAC | )

43750-32E00-019

$75.45

13

BOLT (8X20)

09106-08161

$3.70

14

BAR,PILLION FOOTREST RH

43610-23E00

$77.62

15

BAR,PILLION FOOTREST LH

43710-23E00

$78.73

16

PIN

09208-08011

$2.91

17

E-RING

08332-1106B

$2.00

18

SPRING

09440-05005

$1.58

19

BALL

06111-07004

$1.49
