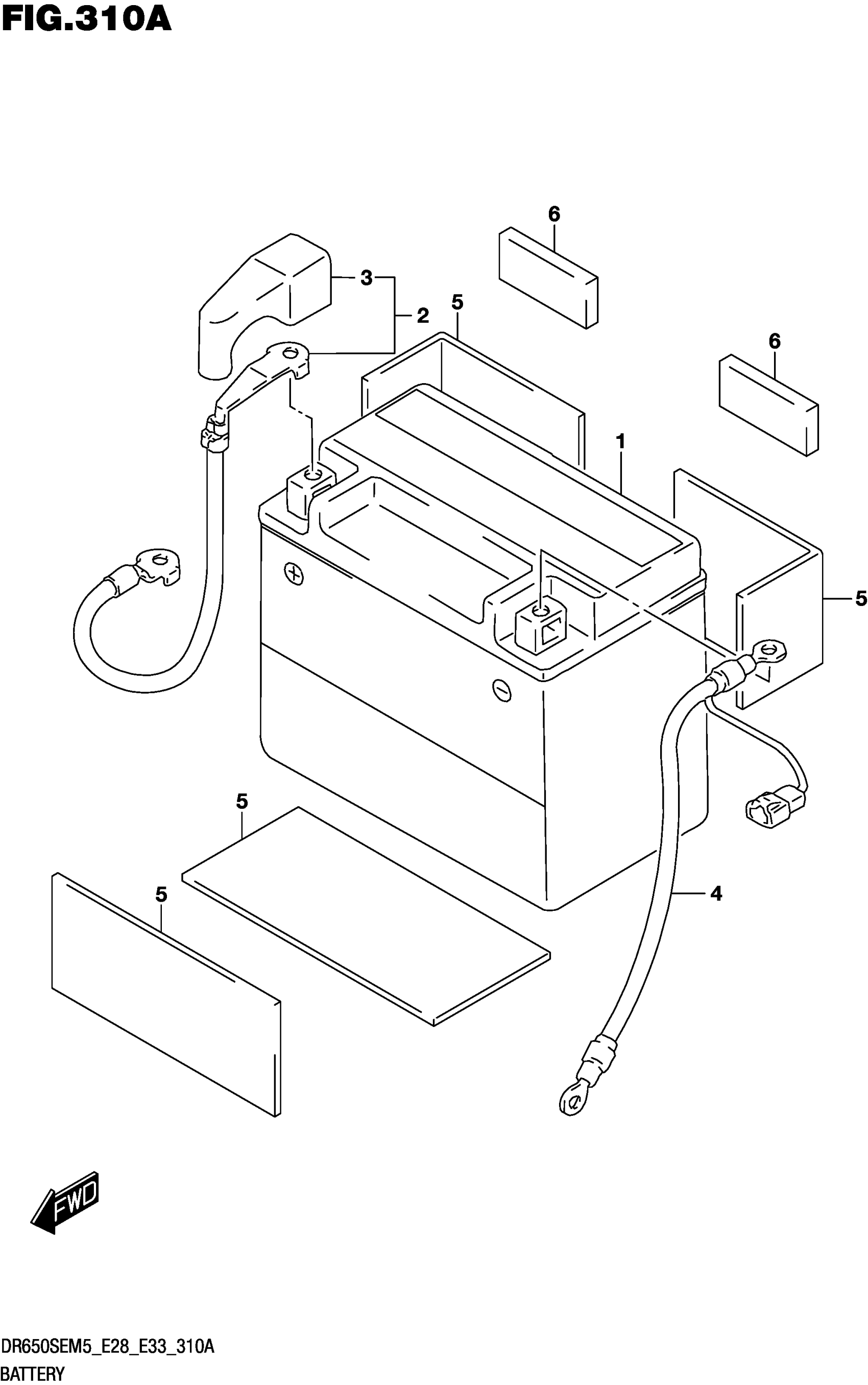

Suzuki DR650SEM5 (2025) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (12V,8AH) This part replaces 33630-32C00.

33610-33E20

Unavailable

2

WIRE,BATTERY PLUS

33820-32E00

$31.93

3

.CAP,BATTERY PLUS TERMINAL

33624-32E00

$7.20

4

WIRE,BATTERY MINUS

33860-32E00

$26.73

5

PROTECTOR (170X95X3.0) | CUT AS REQUIRED (115X50)

33651-37000

$4.48

6

CUSHION, REAR FENDER REAR | CUT AS REQUIRED (20X45) This part replaces 33652-08420.

33651-37000

$4.48
