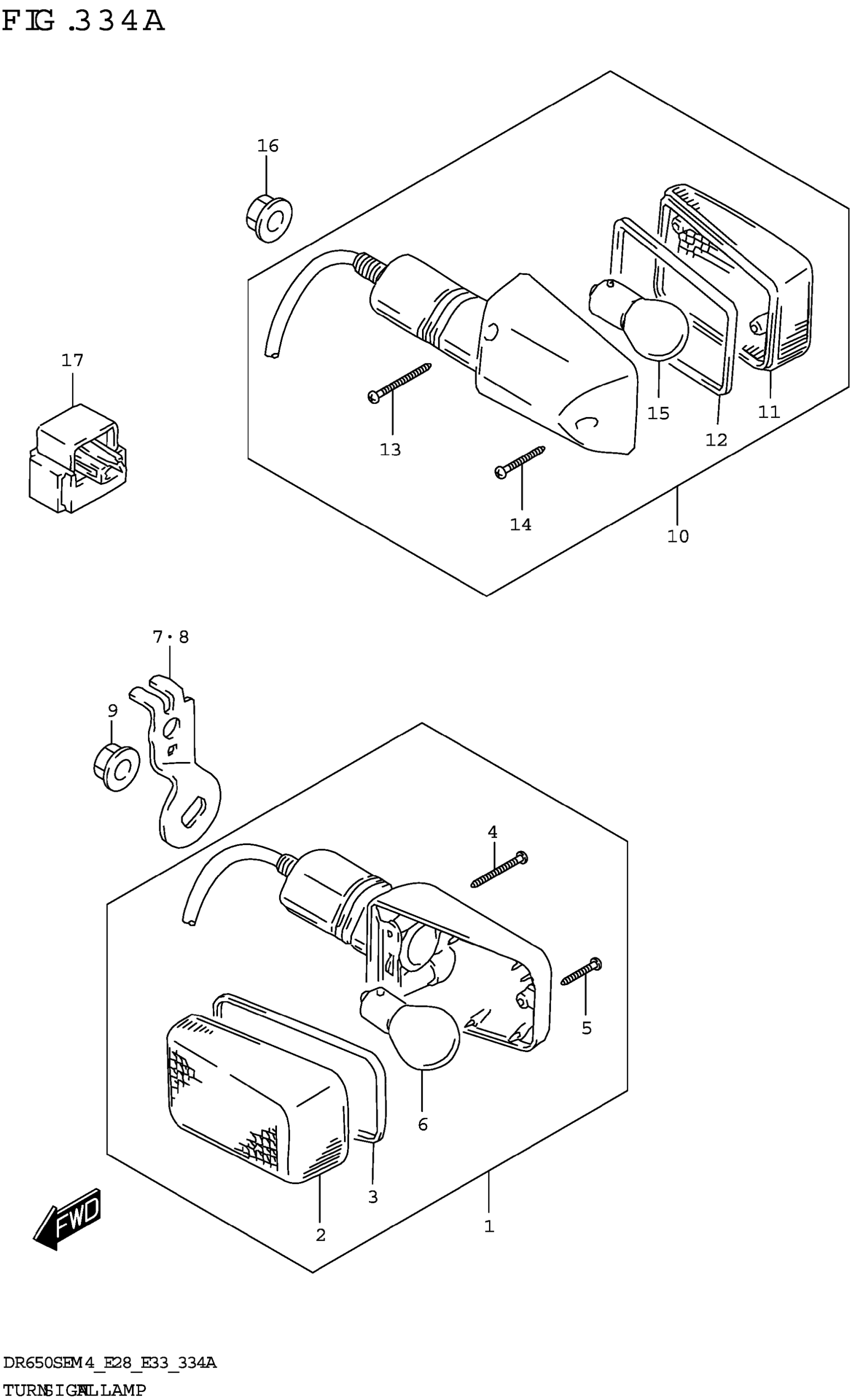

Suzuki DR650SEM4 (2024) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL

35601-29E30

$83.26

2

.LENS

35612-17C20

$10.23

3

.GASKET

35613-27A00

$4.46

4

.SCREW (3X30)

35623-27A00

$1.87

5

.SCREW (3X20)

35725-40511

$1.78

6

.BULB (12V21W)

09471-12045

$3.06

7

BRACKET,FRONT RH

35671-32E00

$12.03

8

BRACKET,FRONT LH

35681-32E00

$11.98

9

NUT

08316-1010A

$2.95

10

LAMP ASSY,REAR TURNSIGNAL

35603-29E90

$83.07

11

.LENS

35652-17C20

$10.12

12

.GASKET

35613-27A00

$4.46

13

.SCREW (3X30)

35623-27A00

$1.87

14

.SCREW (3X20)

35725-40511

$1.78

15

.BULB (12V21W)

09471-12045

$3.06

16

NUT

08316-1010A

$2.95

17

RELAY ASSY

38610-26E01

$66.55
