2024 Suzuki DR650SEM4 Headlamp Housing Diagram

← All diagrams

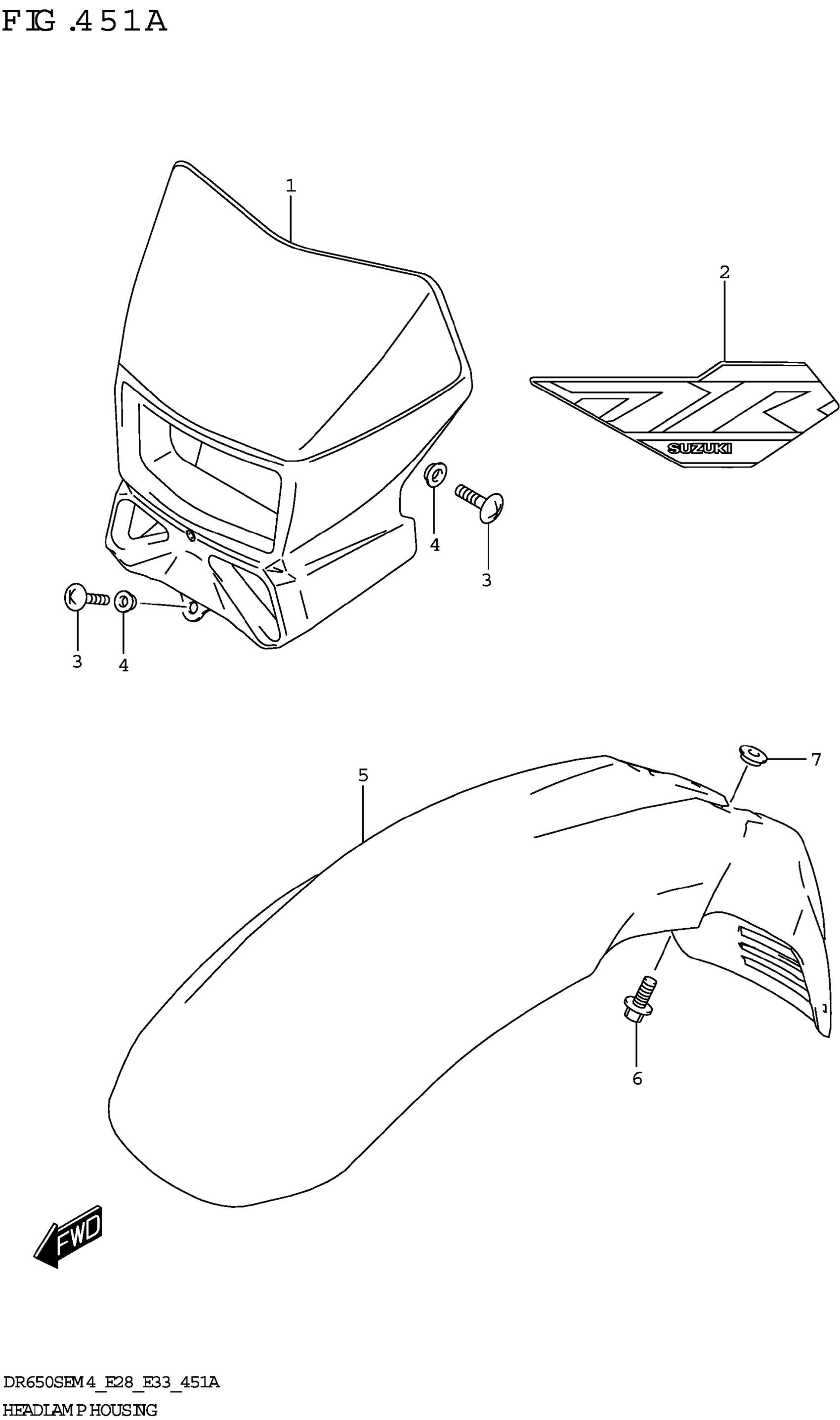

Find the part on the Headlamp Housing diagram for your 2024 Suzuki DR650SEM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Suzuki DR650SEM4 Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

1

$126.40

In stock

1-2

COVER,HEADLAMP (GRAY) | BODY COLOR:A8W

51811-29F50-YUD

1
Out of stock

2-1

TAPE,HEADLAMP COVER | K,WHITE) BODY COLOR:30H

68725-29FE0-CL2

1
Out of stock

2-2

TAPE,HEADLAMP COVER | AY,BLACK) BODY COLOR:A8W

68725-29FE0-CL3

1
Out of stock

3

SCREW

02142-0612A

3
Out of stock

4

WASHER This part replaces 09169-06032.

09169-06071

3
Out of stock

5-1

FENDER,FRONT (WHITE) | BODY COLOR:30H

53111-13E00-30H

1
Out of stock

5-2

FENDER,FRONT (GRAY) | BODY COLOR:A8W

53111-13E00-YUD

1
Out of stock

6

BOLT (6X16)

09116-06170

4

$2.68

In stock

7

WASHER (6.1X17.0X4.8)

09169-06073

4
Out of stock
