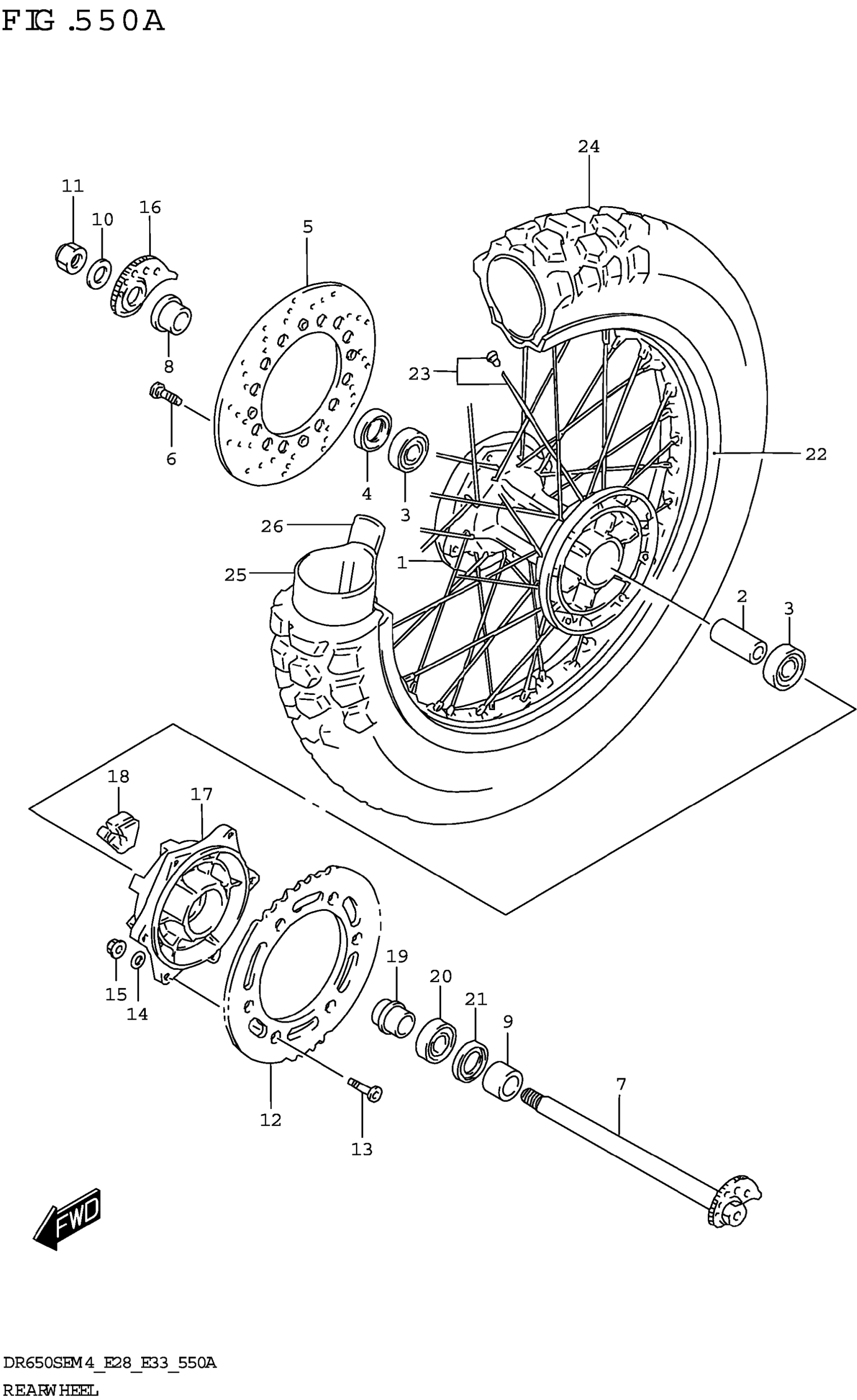

Suzuki DR650SEM4 (2024) REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR WHEEL

64111-15D10

$481.20

2

SPACER,RR HUB BEARING

64731-15D00

$22.30

3

BEARING

08123-6204B

$17.41

4

OIL SEAL (26X47X5)

09283-26019

$11.61

5

DISC,REAR BRAKE

69211-32E01

$310.70

6

BOLT (8X20)

09106-08155

$3.76

7

AXLE,REAR

64710-32E00

$138.52

8

SPACER,REAR AXLE RH

64741-05D00

$17.82

9

SPACER,REAR AXLE LH

64751-15D00

$22.90

10

WASHER (19X32X3.2)

09160-19022

$4.90

11

NUT

08319-2118A

$4.90

12

SPROCKET,REAR (NT:42)

64511-32E00

$82.02

13

BOLT (8X30.5)

09120-08010

$2.36

14

WASHER

08322-0108B

$2.34

15

NUT

08319-3108A

$2.32

16

ADJUSTER,CHAIN RH

61410-32E00

$21.98

17

DRUM,REAR SPROCKET MOUNTING

64611-15D01

$178.35

18

ABSORBER,REAR HUB SHOCK

64651-32E00

$8.73

19

RETAINER,REAR SPROCKET DRUM

64733-15D00

$30.10

20

BEARING

08123-6205B

$25.93

21

OIL SEAL (34X52X6)

09283-34003

$9.29

22

RIM,RR WHEEL (17M/CXMT2.50)

65311-32E01

$488.28

23

SPOKE SET,REAR WHEEL

65320-32E00

$98.40

24

TIRE,REAR

65110-32E01

$95.55

25

TUBE ASSY,WHEEL INNER

65200-32E01

$75.82

26

PROTECTOR,WHEEL INNER TUBE

65261-32E01

$8.18
