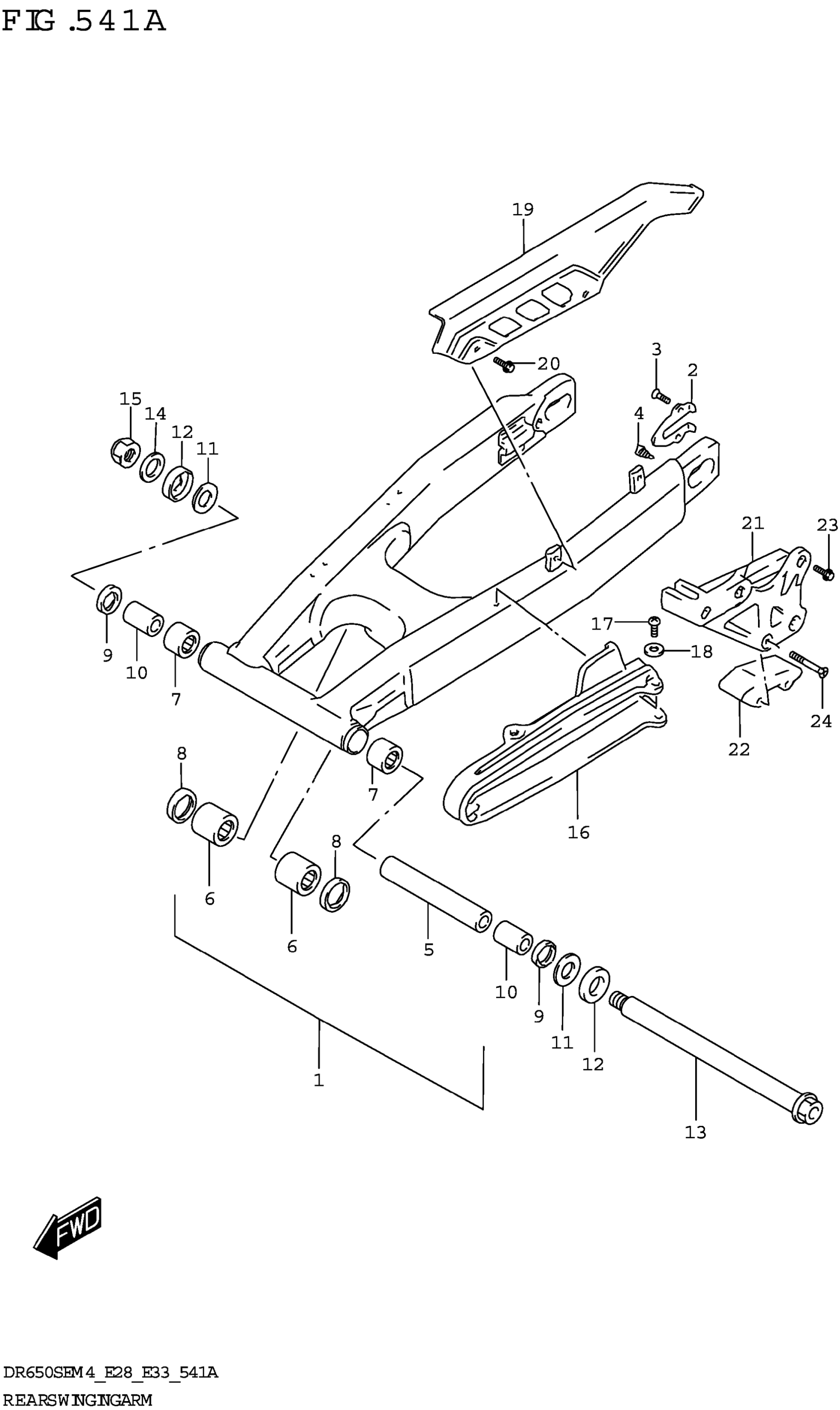

Suzuki DR650SEM4 (2024) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR

61000-32E30

$1,658.55

2

.PLATE RR SWING ARM AXLE

61128-29E00

$18.33

3

.SCREW (5X8)

09126-05009

$2.28

4

.STOPPER CHAIN ADJUSTER (10X1 | )

61431-13E10

$6.98

5

.SPACER,SWGARM PIVOT,CENTER

61282-32E00

Unavailable

6

.BEARING (20X27X23.5)

09263-20071

$25.92

7

.BEARING (22X29X30)

09263-22017

$22.58

8

SEAL,OIL (20X27X5)

09283-20031

$5.24

9

.SEAL,OIL (21X29X4)

09285-22006

$3.83

10

SPACER,SWGARM PIVOT,BRG

61251-14D00

$27.97

11

WASHER

08211-17341

$2.50

12

COVER,DUST

61262-28C11

$7.01

13

AXLE,REAR

64711-08D00

$102.20

14

WASHER

08322-0116A

$1.84

15

NUT

09159-16007

$12.61

16

BUFFER,CHAIN TOUCH DEFENSE

61273-13E01

$45.83

17

SCREW

02142-0612A

$1.49

18

WASHER

09169-06057

$3.18

19

CASE, CHAIN

61311-01A03

$63.38

20

BOLT (6X10)

09116-06096

$2.26

21

GUIDE,CHAIN

61340-15E00

$70.28

22

DEFENSE,CHAIN GUIDE

61348-15E00

$26.93

23

BOLT

01550-0616A

$1.97

24

SCREW

02122-0650A

$1.52
