Description

Price

1

COOLER ASSY,OIL

16600-32E00

$892.05

2

BOLT (8X28)

09116-08120

$4.68

3

SPACER (8.5X12X17)

09180-08193

Unavailable

4

CUSHION,OIL COOLER

16629-12D00

$4.33

5

HOSE,OIL COOLER,UPPER

16460-32E00

$175.98

6

HOSE,OIL COOLER LOWER

16470-32E00

$156.75

7

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

8

BOLT

01547-0616A

$2.03

9

O-RING (D:2.4,ID:11.8)

09280-12012

$4.64

10

GUARD,OIL COOLER

16640-32E11

$82.87

11

BOLT (8X20)

01550-0820A

$2.23

12

BUMPER,OIL COOLER

16650-32E00

$74.52

13

SCREW

02162-0510B

$2.53

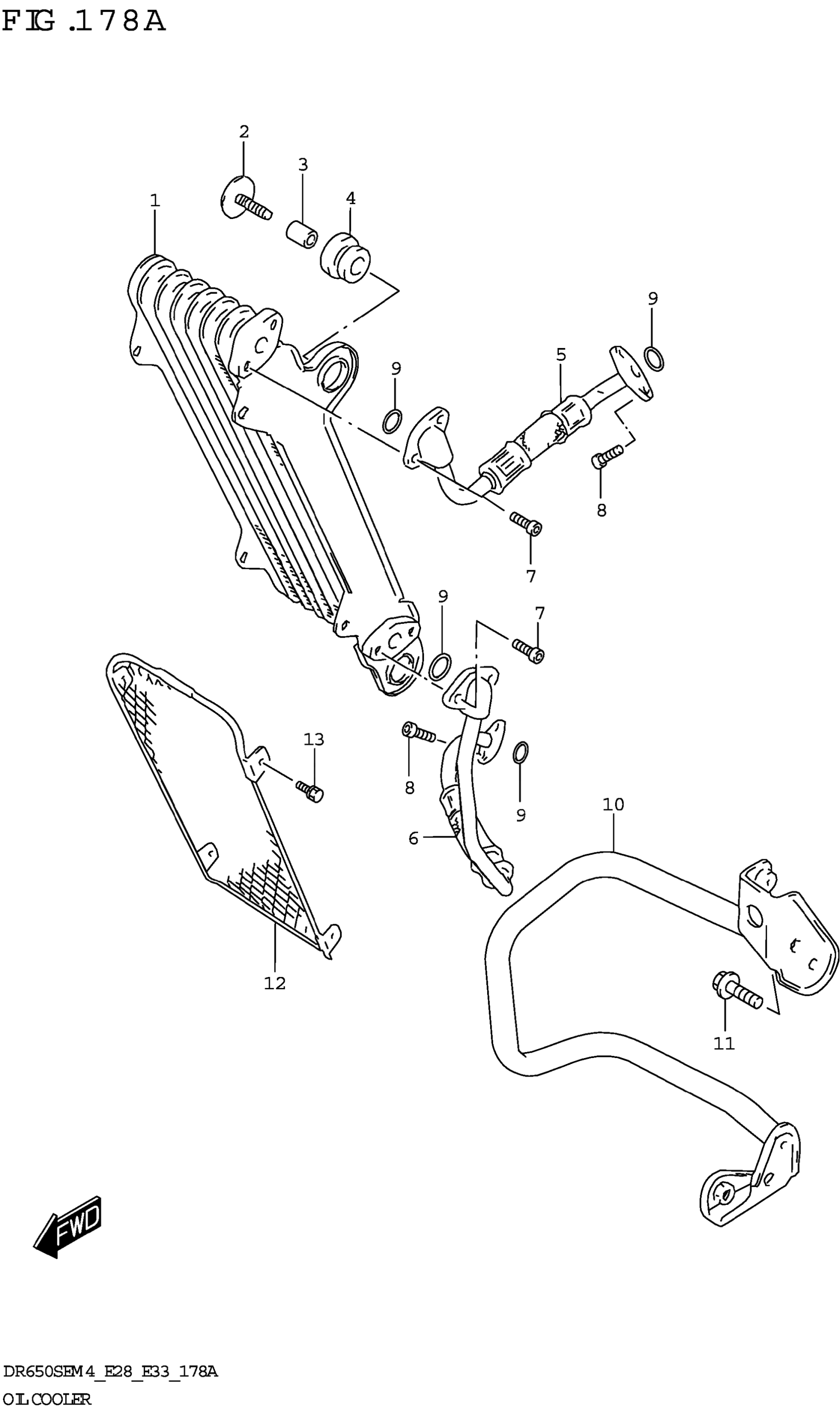

Suzuki DR650SEM4 (2024) OIL COOLER Diagram
