Description

Price

1

GRIP L

57211-12D00

$16.70

2

LEVER ASSY,CLUTCH

57500-12E31

$109.88

3

.LEVER,CLUTCH

57421-12E30

$31.83

4

.BOLT,PIVOT

57531-12E30

$32.97

5

.WASHER

57533-12E30

$10.12

6

.SPACER

57532-12E30

$21.90

7

NUT

08319-2106B

$2.32

8

.ADJUSTER, WIRE

57441-45C01

$9.05

9

.NUT, LOCK

57442-45C01

$8.41

10

..BOLT

01547-0620B

$2.45

11

.SWITCH ASSY,CLUTCH

57560-13E02

$21.64

12-1

COVER,KNUCKLE LH (WHITE) | BODY COLOR:30H

57541-31D20-30H

$45.37

12-2

COVER,KNUCKLE LH (BLACK) | BODY COLOR:A8W

57541-31D20-YUD

$49.10

13

NUT

08313-1006B

$2.26

14

WASHER (6.5X20X1.6)

09160-06154

$1.98

15

WASHER (6.5X16X1.2)

09160-06019

$1.49

16

WASHER

09169-06055

$2.27

17

.NUT

08319-2106A

$1.91

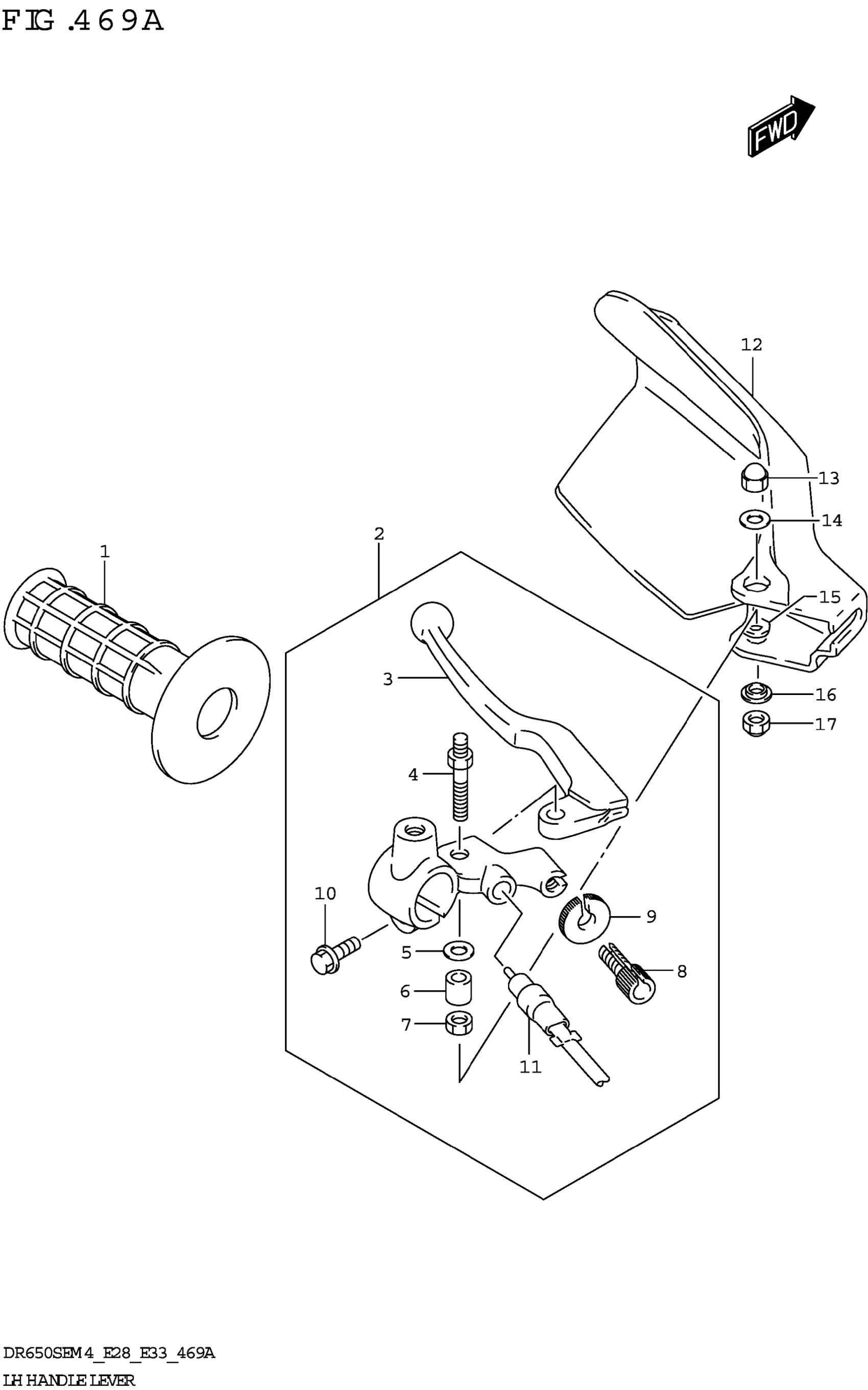

Suzuki DR650SEM4 (2024) LH HANDLE LEVER Diagram
