Description

Price

1-1

TANK ASSY,FUEL (BLACK) | BODY COLOR:30H

49100-32EA0-30H

$861.28

1-2

TANK ASSY,FUEL (WHITE) | BODY COLOR:A8W

49100-32EA0-019

$861.28

2-1

.TAPE SET,FUEL TANK | K,WHITE) BODY COLOR:30H

68110-32EH0-CL2

$102.33

2-2

.TAPE SET,FUEL TANK | AY,BLACK) BODY COLOR:A8W

68110-32EH0-CL3

$102.33

3

CAP SET,FUEL TA This part replaces 44200-05821.

44200-05822

$74.48

4

MOLDING,FUEL TANK

68241-32E00

$56.05

5

CUSHION This part replaces 63411-35B00.

51827-01A00

$6.17

6

CUSHION This part replaces 44613-13600.

44831-17B00

$6.70

7

COVER,FUEL TANK,FRONT

44271-32E00

$57.77

8

BOLT (6X12)

09116-06210

$2.47

9

BRACKET, FRONT COVER RH

44280-32E10

$18.38

10

BRACKET, FRONT COVER LH

44290-32E10

$18.38

11

BOLT (6X25)

01550-0625A

$1.97

12

CUSHION,FUEL TANK,FRONT

44511-12D00

$6.93

13

CUSHION,FUEL TANK,UPPER

44541-13E00

$16.65

14

CLAMP (L:250)

09407-25402

$4.64

15

BOLT (6X30)

09116-06214

$2.50

16

CUSHION (14.5X24X8)

09320-14022

$3.63

17

SPACER (6.5X9X18)

09180-06271

$2.35

18

CUSHION (9X24X18)

09320-10071

$2.60

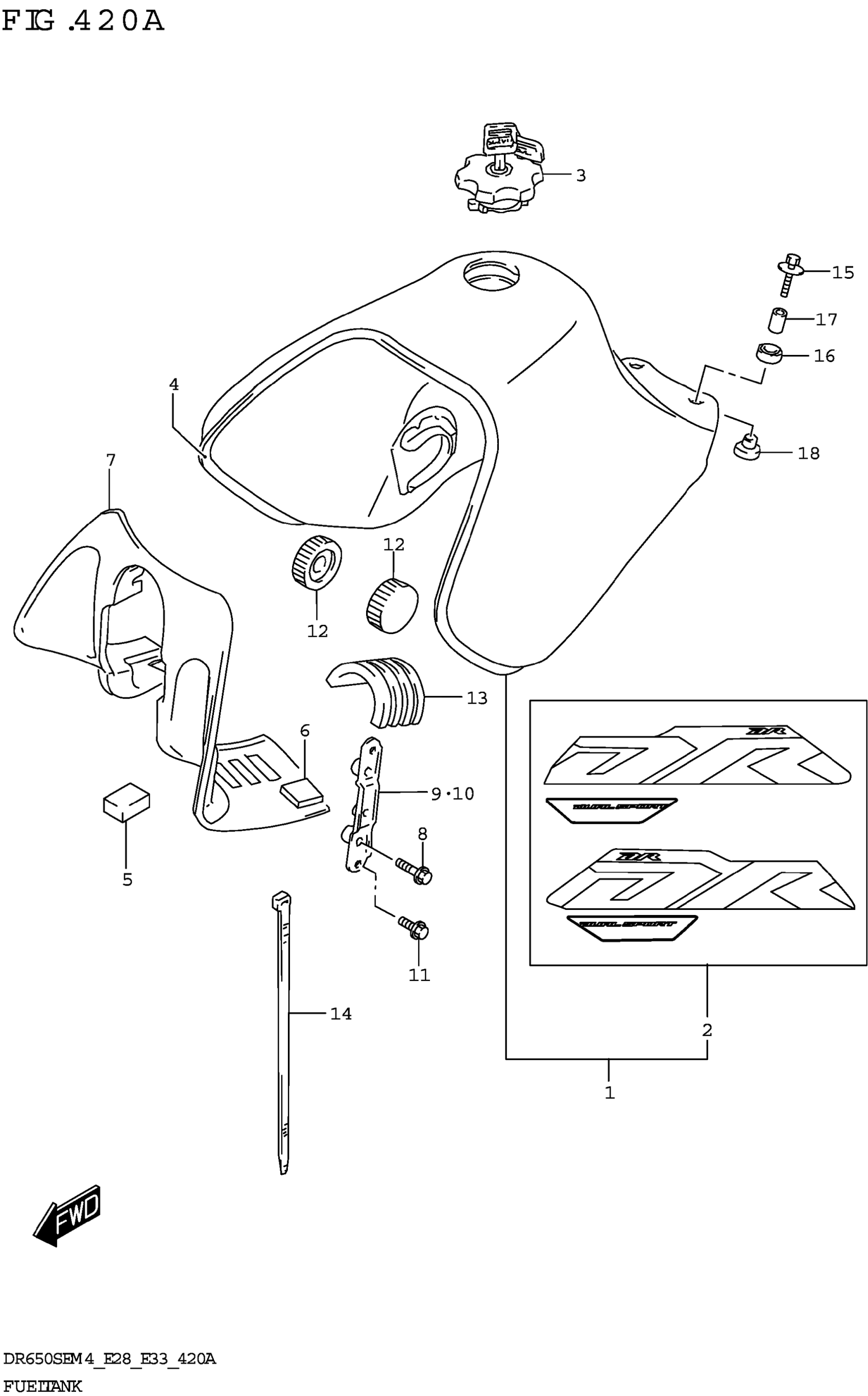

Suzuki DR650SEM4 (2024) FUEL TANK Diagram
