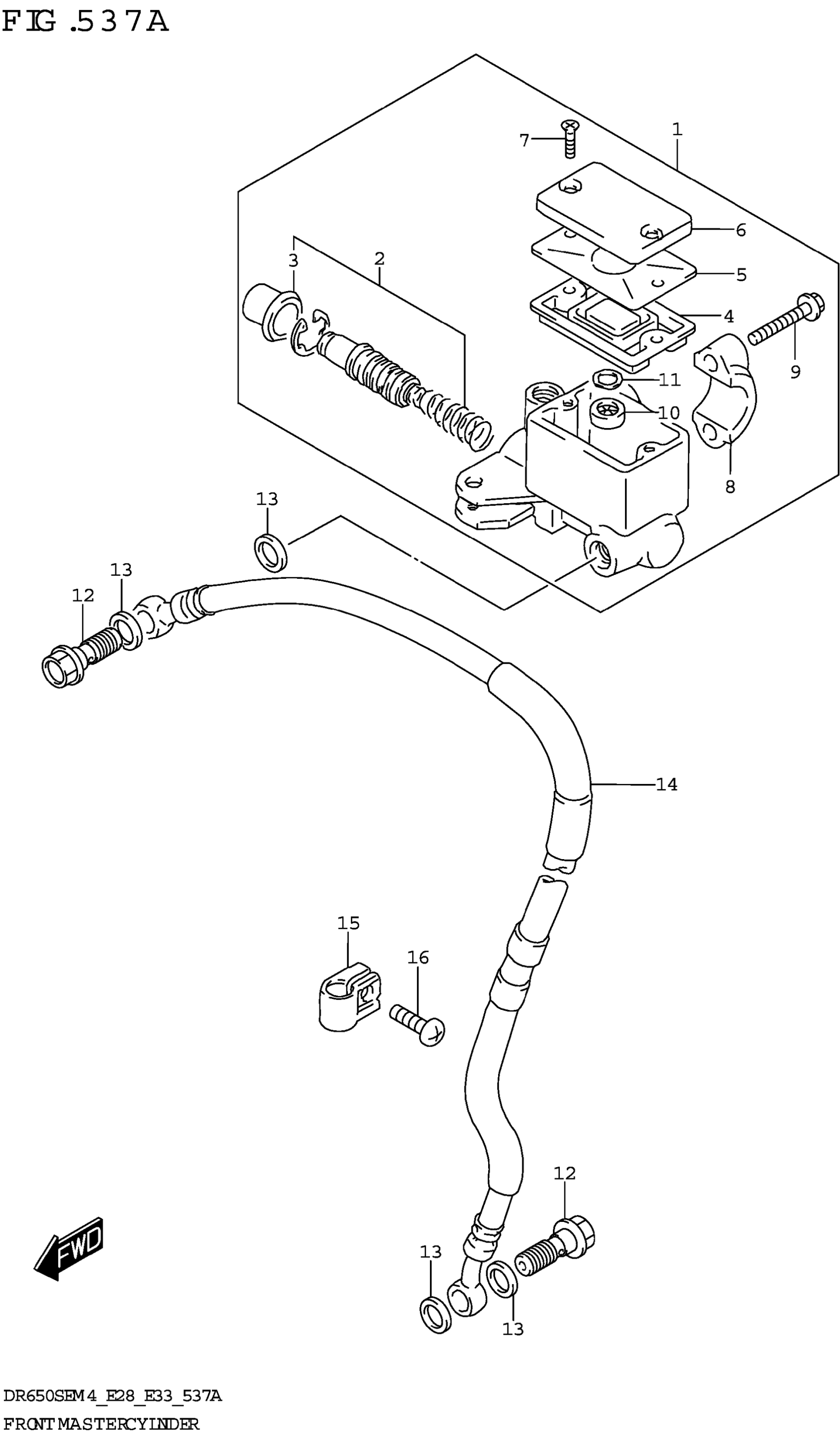

Suzuki DR650SEM4 (2024) FRONT MASTER CYLINDER Diagram

Description

Price

CYLINDER ASSY, FRONT MASTER

59600-31D50

$275.17

.PISTON/CUP SET

59600-04810

$41.38

..BOOT

59666-44300

$5.30

.DIAPHRAGM

59667-04700

$8.95

.PLATE,DIAPHRAGM

59668-14F00

$13.10

.CAP

59669-14F10

$23.02

.SCREW

69689-49300

$1.81

.HOLDER

59671-36500

$11.50

.BOLT (6X22)

59675-02FA0

$3.49

.SEPARATOR

59748-15400

$8.83

.PLATE

59749-15400

$2.80

UNION (10X1.25X22)

09360-10062

$5.81

WASHER (10X15X1.5)

09161-10009

$1.83

HOSE,FRONT BRAKE

59480-32E01

$168.98

CLAMP BRAKE HOSE

58621-07A20

$3.83

SCREW

02142-0620A

$1.38
