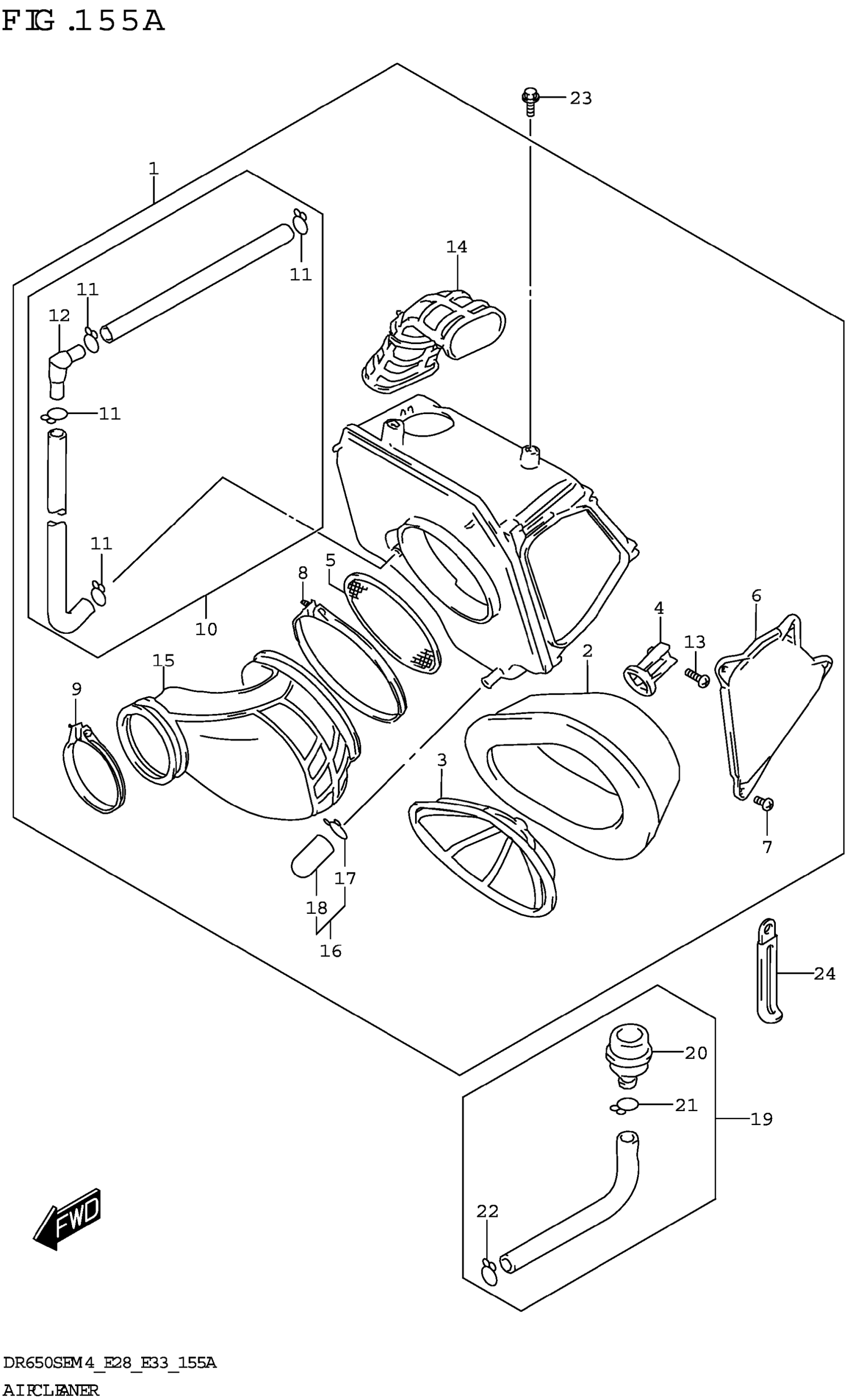

Suzuki DR650SEM4 (2024) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR

13700-32E00

$431.67

2

.FILTER

13780-32E00

$46.54

3

.HOLDER,FILTER

13791-32E00

$21.79

4

.STOPPER,HOLDER

13792-32E00

$7.72

5

.TRAP,FRAME

13810-14D02

$11.63

6

.CAP,CLEANER

13740-32E00

$30.11

7

.SCREW

02142-0512A

$1.49

8

.CLAMP, OUTLET TUBE | DE)

13826-14D01

$9.32

9

.CLAMP (L:25)

09402-64203

$6.58

10

.TUBE ASSY,BREATHER

13850-32E00

$35.11

11

.CLIP

09401-14301

$2.35

12

.JOINT

13858-14D20

$7.22

13

SCREW

02142-0620A

$1.49

14

.TUBE,INLET

13891-32E00

$53.92

15

.TUBE,OUTLET

13881-32E00

$96.22

16

.PLUG ASSY,DRAIN

13856-19B03

$10.95

17

.CLIP (ID:14.5)

09401-14101

$2.34

18

.PLUG

13859-41B10

$7.38

19

CLEANER ASSY,AIR,NO.2

13800-32E00

$56.93

20

.FILTER,2ND AIR CLEANER

18780-32E00

$29.28

21

.CLIP (ID:16.5)

09401-16401

$3.14

22

.CLIP

09401-14301

$2.35

23

BOLT

01550-0612A

$1.97

24

CLAMP (L:80)

09404-06030

Unavailable
