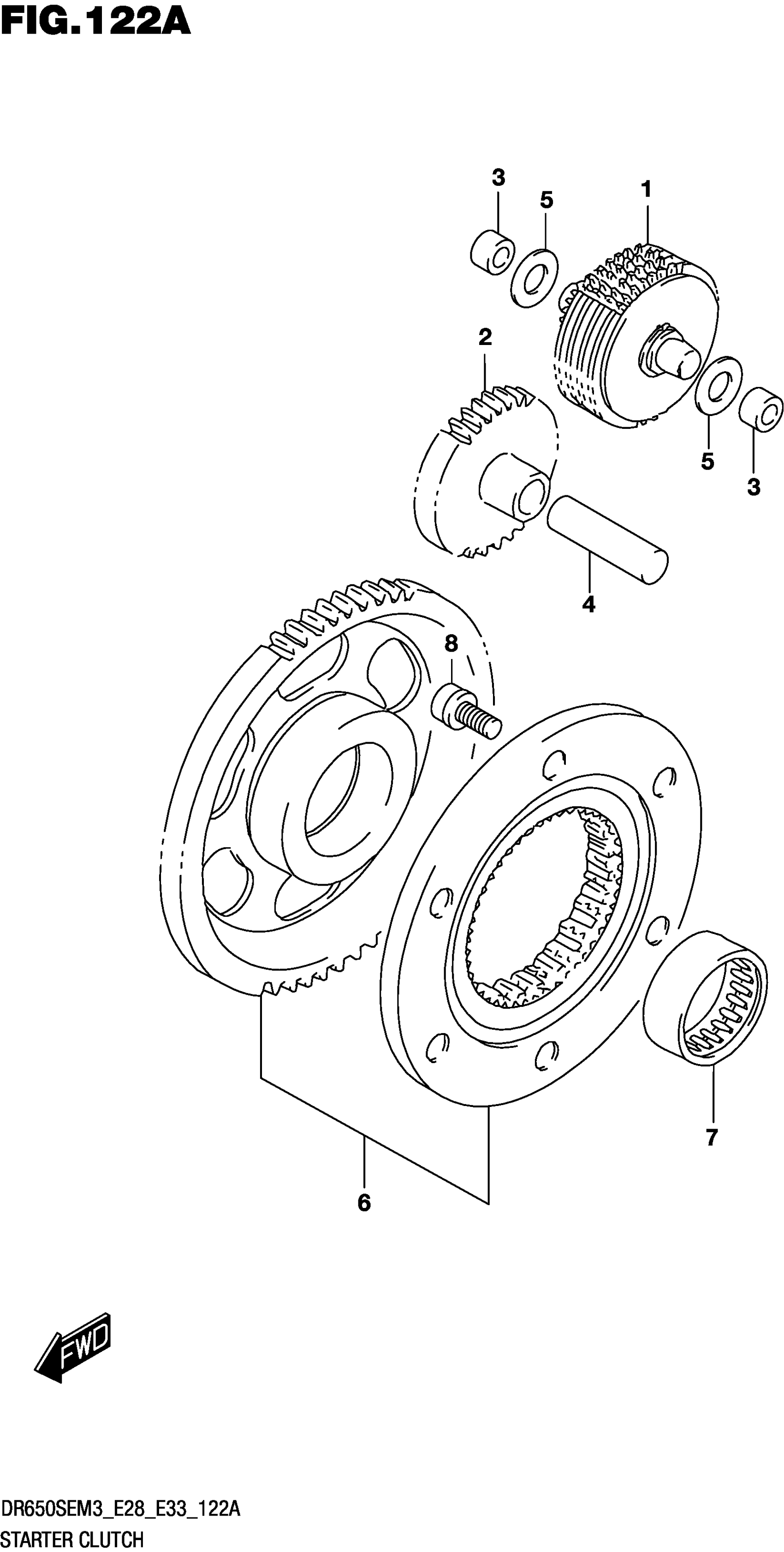

Suzuki DR650SEM3 (2023) STARTER CLUTCH Diagram

#

Description

Price

1

LIMITER ASSY,STARTER IDLE GEA | (NT:44)

12600-12D01

$262.28

2

GEAR,STARTER IDLE,NO.2 (NT:18 | 27)

12612-12D01

$83.65

3

BUSH LIMITER GEAR SHAFT

12618-31D01

$22.62

4

PIN This part replaces 09202-12002.

09206-12006

$9.43

5

WASHER

08211-10221

$2.28

6

CLUTCH SET,STARTER (NT:73)

12600-09860

$347.67

7

.BEARING (31X39X17.8)

09263-31009

$47.00

8

BOLT (8X20)

09106-08106

$2.72
