Description

Price

1

BODY,REAR FENDER FRONT

63112-32E00

$74.52

2-1

BODY,RR FENDER RR (WHITE) | BODY COLOR:30H

63113-32E30-30H

$131.22

2-2

BODY,RR FENDER RR (GRAY) | BODY COLOR:A8W

63113-32E30-YUD

$131.22

3

PLATE,FRAME COVER

47153-19C01

$7.95

4

EXTENSION,REAR FENDER

63311-32E00

$62.32

5

MUD GUARD,REAR FENDER

63411-32E00

$18.53

6

BOLT (6X16)

09113-06001

$2.73

7

WASHER (6.1X17.0X4.8)

09169-06073

$3.42

8

WASHER (6.3X16X1)

09169-06053

$1.49

9

SCREW(6X16) This part replaces 09139-06024.

09139-06237

$2.38

10

BOLT

01550-0616B

$2.48

11

CUSHION,REAR FENDER

63118-32E00

$9.75

12

CUSHION, EXTENSION This part replaces 63119-32E00.

94475-21E00

$14.30

13-1

EMBLEM, "SUZUKI" (WHITE,BLACK | BODY COLOR:30H

68177-04A00-8YM

$7.22

13-2

EMBLEM, "SUZUKI"(GRAY,BLACK) | BODY COLOR:A8W

68177-04A00-A8W

$6.85

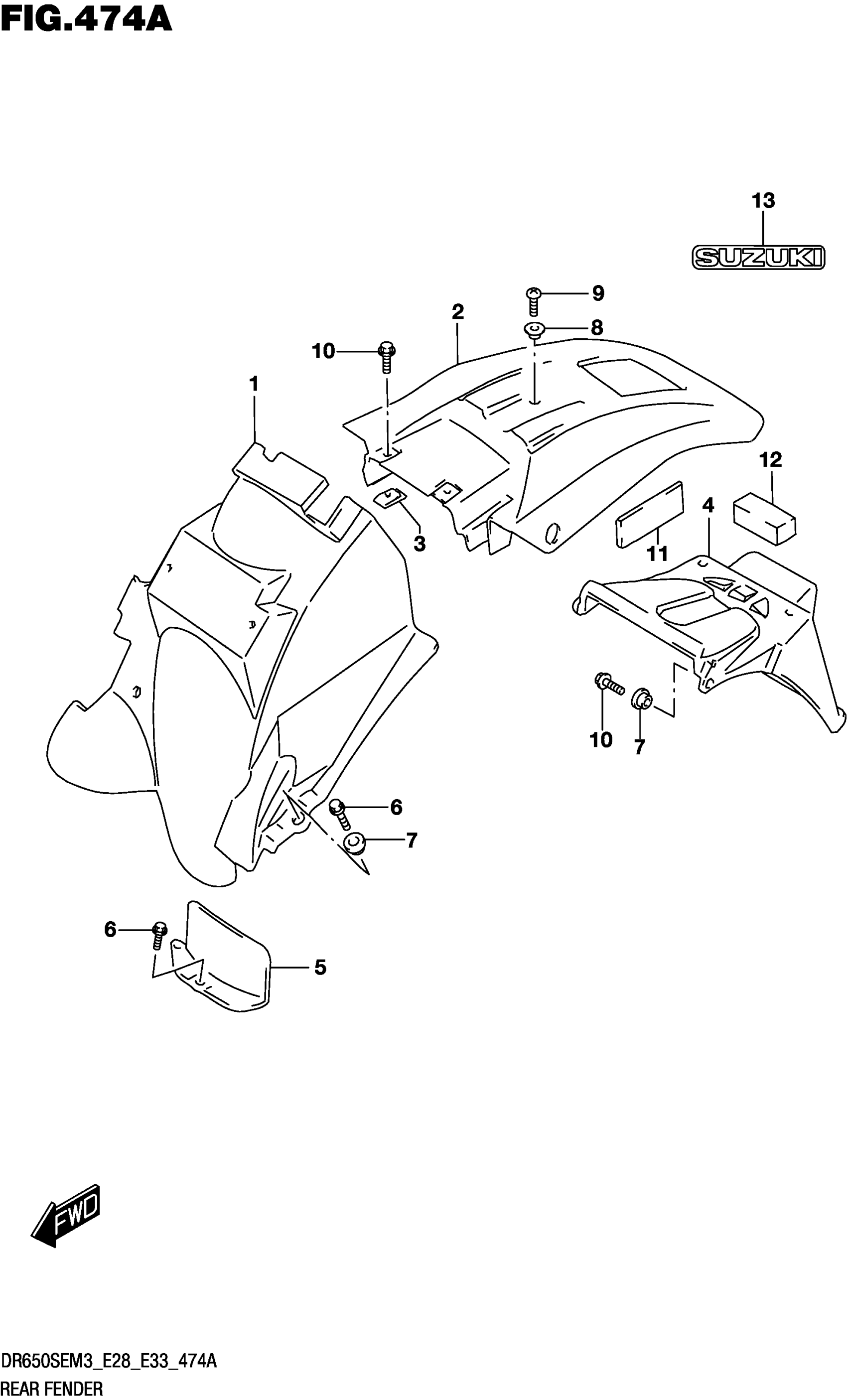

Suzuki DR650SEM3 (2023) REAR FENDER Diagram
