2023 Suzuki DR650SEM3 Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 2023 Suzuki DR650SEM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

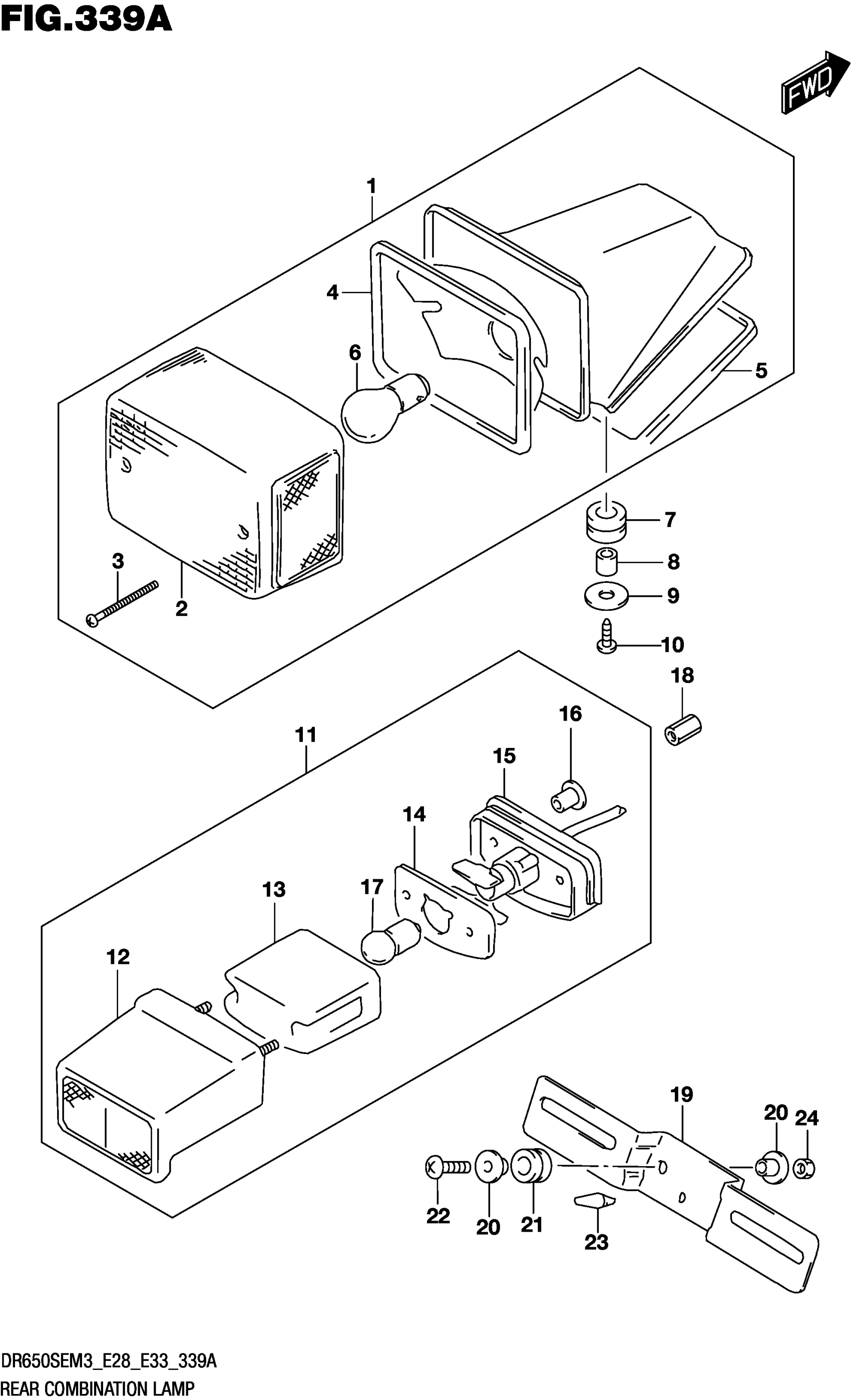

2023 Suzuki DR650SEM3 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY,REAR COMB

35710-32E30

1
Out of stock

2

.LENS,TAIL

35712-14D30

1
Out of stock

3

.SCREW (4X45)

09125-04501

2

$3.13

In stock

4

1

$8.91

In stock

5

.GASKET | FOR BASE

35717-32E30

1
Out of stock

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

7

CUSHION (9X18X9.5)

09320-09016

3
Out of stock

8

SPACER (6.1X8X9.5)

09180-06248

3
Out of stock

9

.WASHER (6.5X20X1.6)

09160-06088

3

$1.80

In stock

10

SCREW

02142-0625A

3
Out of stock

11

LAMP ASSY,LICENSE

35910-32E30

1
Out of stock

12

.COVER,LICENSE

35917-17C00

1
Out of stock

13

.LENS

35912-38A30

1
Out of stock

14

.GASKET

35913-38A30

1
Out of stock

15

.CUSHION

35761-24B31

1
Out of stock

16

.SPACER

35766-24B30

2
Out of stock

17

1

$2.55

In stock

18

NUT

09140-04006

2
Out of stock

19

BRACKET,LICENSE PLATE

35927-26E30

1
Out of stock

20

WASHER (6.1X17.0X4.8)

09169-06073

4
Out of stock

21

CUSHION (9X18X9.5)

09320-09016

2
Out of stock

22

SCREW

02142-0620A

2
Out of stock

23

CUSHION

09321-06023

1
Out of stock

24

NUT

08310-0006A

2
Out of stock
