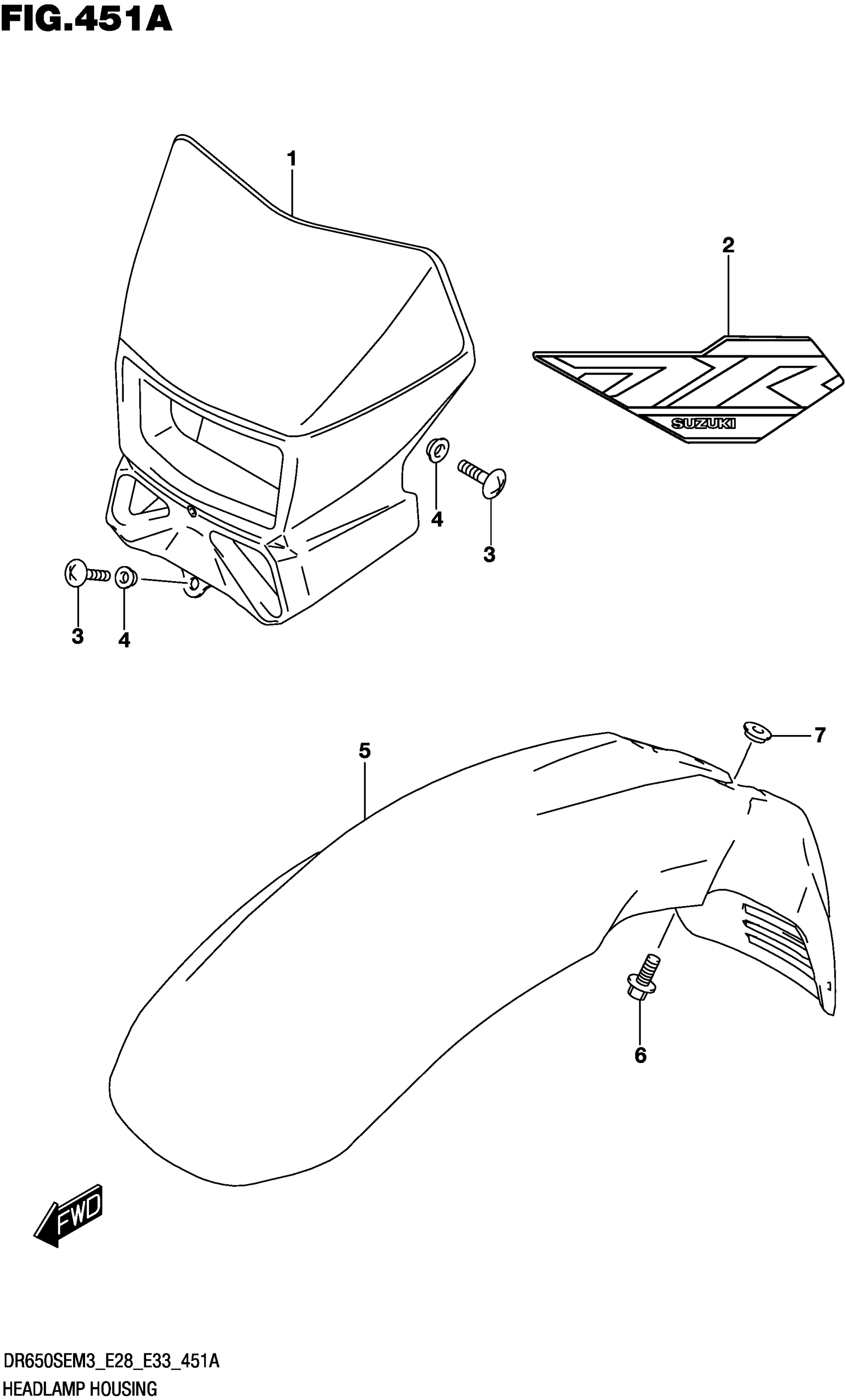

Suzuki DR650SEM3 (2023) HEADLAMP HOUSING Diagram

#

Description

Price

1-1

COVER HEADLAMP (WHITE) | BODY COLOR:30H

51811-29F50-30H

$126.40

1-2

COVER,HEADLAMP (GRAY) | BODY COLOR:A8W

51811-29F50-YUD

$142.18

2-1

TAPE,HEADLAMP COVER | BODY COLOR:30H

68725-29FE0-CL2

$26.70

2-2

TAPE,HEADLAMP COVER | BODY COLOR:A8W

68725-29FE0-CL3

$26.70

3

SCREW

02142-0612A

$1.37

4

WASHER This part replaces 09169-06032.

09169-06071

$2.50

5-1

FENDER,FRONT (WHITE) | BODY COLOR:30H

53111-13E00-30H

$179.90

5-2

FENDER,FRONT (GRAY) | BODY COLOR:A8W

53111-13E00-YUD

$176.62

6

BOLT (6X16)

09116-06170

$2.50

7

WASHER (6.1X17.0X4.8)

09169-06073

$3.08
