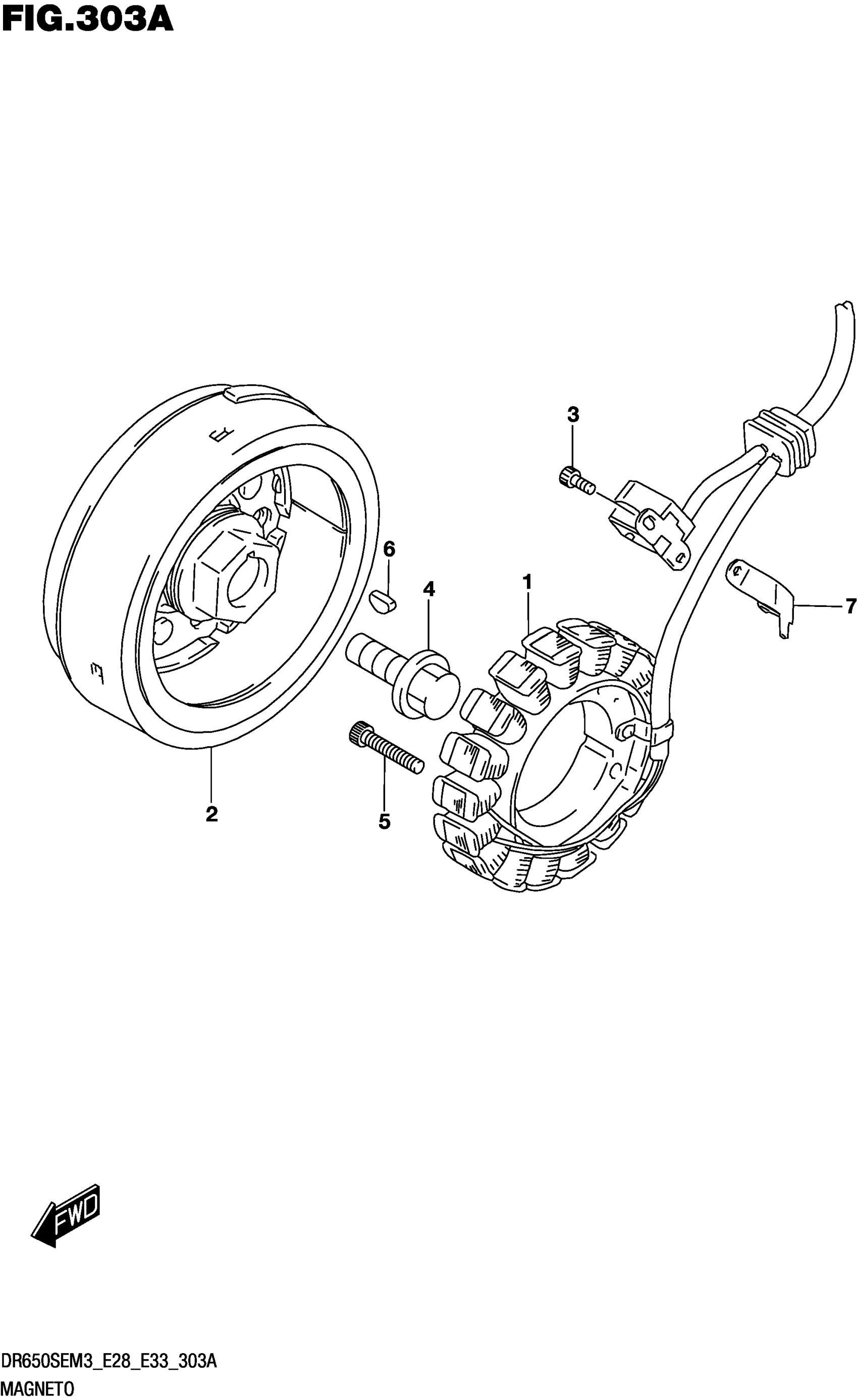

Suzuki DR650SEM3 (2023) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-32E01

$736.75

2

ROTOR ASSY

32102-32E00

$901.13

3

BOLT

07130-0510A

$2.68

4

BOLT (14X43)

09103-14001

$11.82

5

BOLT

07130-0630A

$3.72

6

KEY

09420-05007

$4.60

7

CLAMP,MAGNETO LEAD

32371-32E00

$6.30
