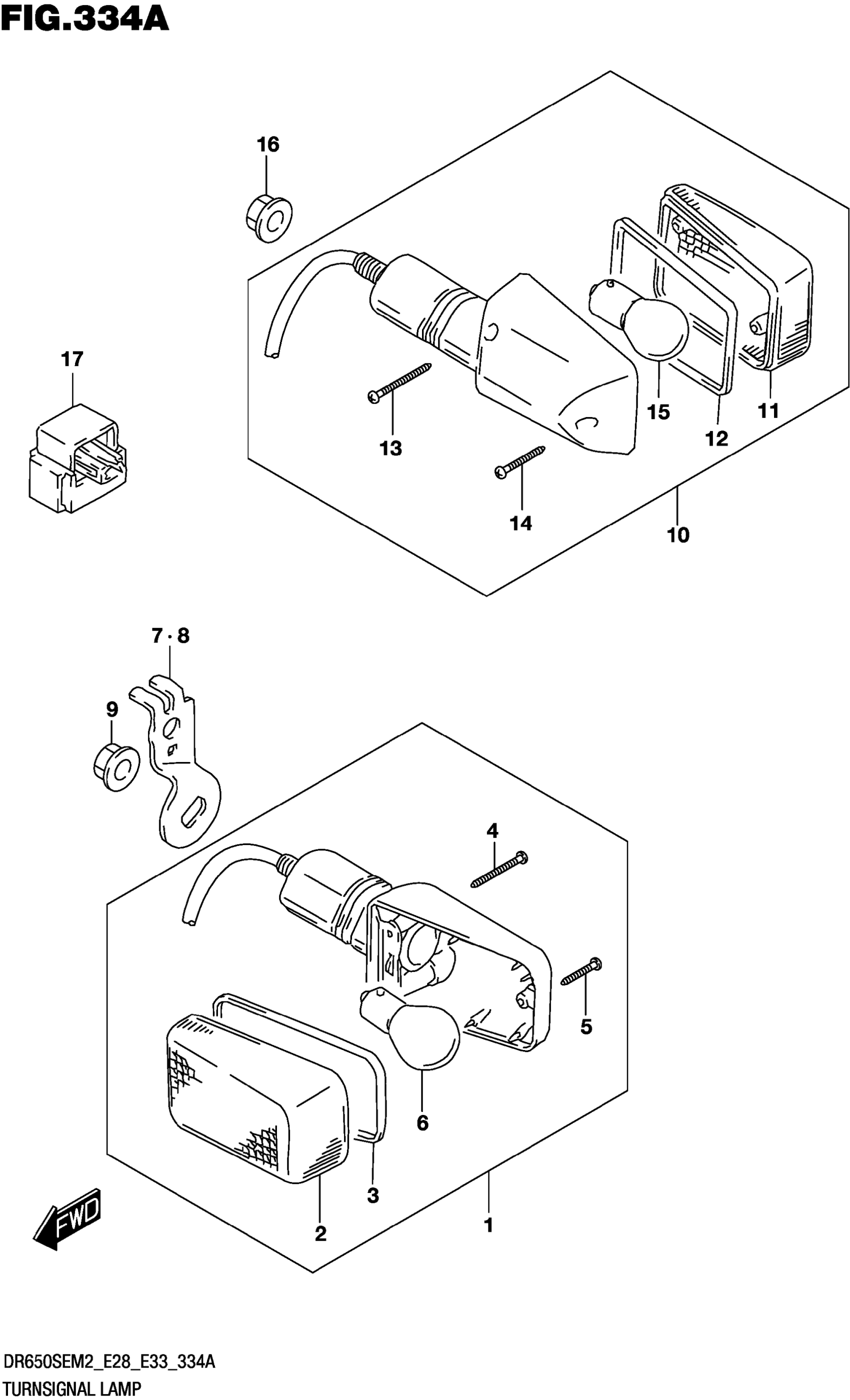

Suzuki DR650SEM2 (2022) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL

35601-29E30

$84.63

2

.LENS

35612-17C20

$10.69

3

.GASKET

35613-27A00

$4.52

4

.SCREW (3X30)

35623-27A00

$1.65

5

.SCREW (3X20)

35725-40511

$1.91

6

.BULB (12V21W)

09471-12045

$3.27

7

BRACKET,FRONT RH

35671-32E00

$10.67

8

BRACKET,FRONT LH

35681-32E00

$10.62

9

NUT

08316-1010A

$2.70

10

LAMP ASSY,REAR TURNSIGNAL

35603-29E90

$88.10

11

.LENS

35652-17C20

$10.28

12

.GASKET

35613-27A00

$4.52

13

.SCREW (3X30)

35623-27A00

$1.65

14

.SCREW (3X20)

35725-40511

$1.91

15

.BULB (12V21W)

09471-12045

$3.27

16

NUT

08316-1010A

$2.70

17

RELAY ASSY

38610-26E01

$58.97
