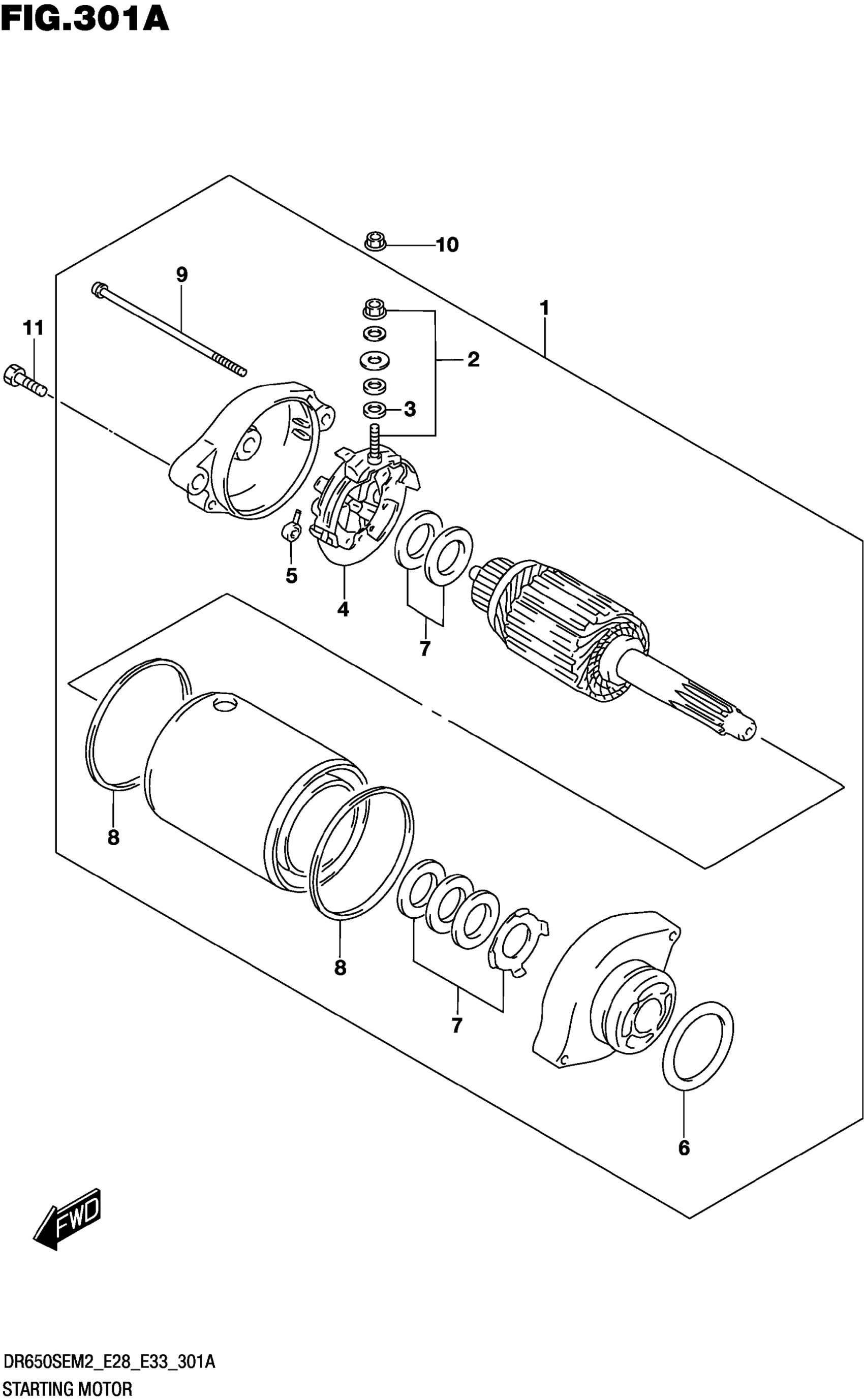

Suzuki DR650SEM2 (2022) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY,STARTING

31100-32E01

$593.55

2

.TERMINAL SET,BRUSH

31130-38B00

$69.35

3

.O-RING

31143-49040

$3.71

4

.HOLDER SET,BRUSH

31132-38B00

$69.35

5

.SPRING,BRUSH

31135-38B00

$5.40

6

.O RING (D:2.1,ID;34.7)

31156-48B00

$12.02

7

.WASHER SET

31170-32E00

Unavailable

8

O RING This part replaces 31264-31300.

31264-32E00

$6.68

9

.BOLT

31280-26D00

$20.45

10

NUT

08361-3506A

$1.80

11

BOLT

01547-0630A

$2.32
