Description

Price

1

HEADLAMP ASSY

35100-12ED0-999

$439.80

2

.UNIT ASSY

35121-12EA0

$159.33

3

.NUT ADJUSTING

35135-12E20

$3.72

4

.NUT

35135-45900

$3.25

5

.SCREW MOUNTING

35136-38A00

$4.02

6

.CUSHION

35139-45230

$1.98

7

.HOUSING

35141-12ED0

Unavailable

8

.SCREW ADJUSTING

35151-12EA0

$6.23

9

.SPRING ADJUSTING

35154-12EA0

$6.92

10

.COVER SOCKET

35173-01440

$17.37

11

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$25.15

12

CUSHION HEADLAMP

36920-44A01

$6.38

13

BOLT (6X20)

09116-06167

$2.19

14

SPACER (6.5X10X10)

09180-06310

$1.91

15

CUSHION

09320-09018

$2.44

16

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

17

NUT

08313-1005B

$2.70

18

WASHER,LOCK

08321-0105B

$2.83

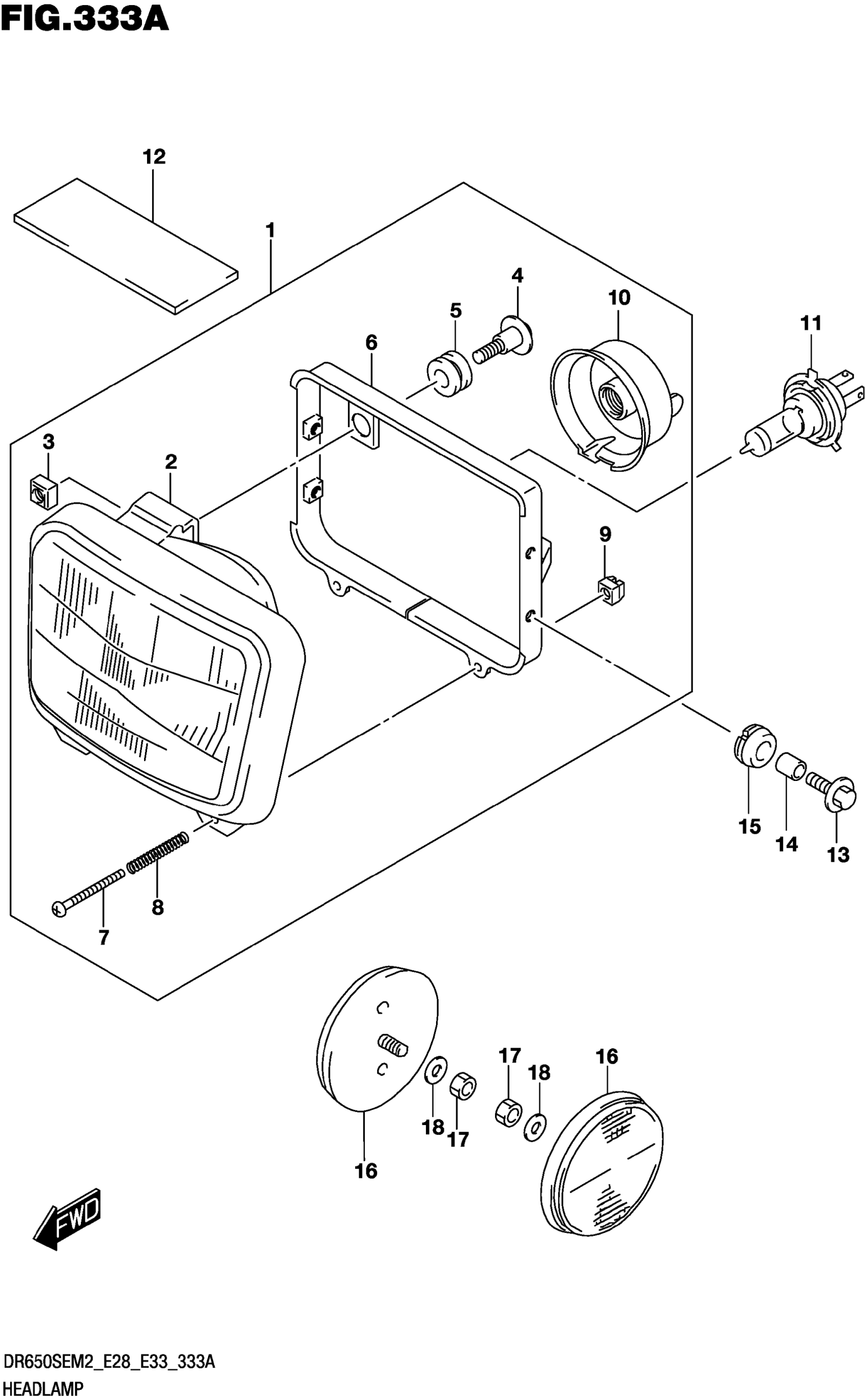

Suzuki DR650SEM2 (2022) HEADLAMP Diagram
