Description

Price

1

PIPE,2ND AIR

18410-32E20

$38.10

2

GASKET 2ND AIR PIPE

18441-45C01

$7.05

3

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

4

HOSE,2ND AIR PIPE

18461-32E01

$30.72

5

CLIP (ID:13.5)

09401-13409

$2.12

6

VALVE ASSY 2ND AIR

18450-29F02

$114.63

7

SPACER 2ND AIR VALVE RR

18612-29F00

$9.23

8

BOLT

01547-0665A

$2.32

9

CLIP (ID:15.5)

09401-15101

$2.26

10

HOSE 2ND AIR CLEANER JT

18712-29F01

Unavailable

11

JOINT 2ND AIR CLEANER HOSE

13888-19B00

$8.28

12

HOSE,2ND AIR CLNR

18711-32E01

$10.03

13

CLEANER 2ND AIR

18700-29F00

$19.48

14

HOSE

09359-40703-600

$9.60

15

HOSE,2ND AIR CLNR INLET

09352-11163-270

$5.55

16

CLAMP (L:45)

09404-06429

$1.83

17

CLAMP (L:165)

09407-18402

$2.19

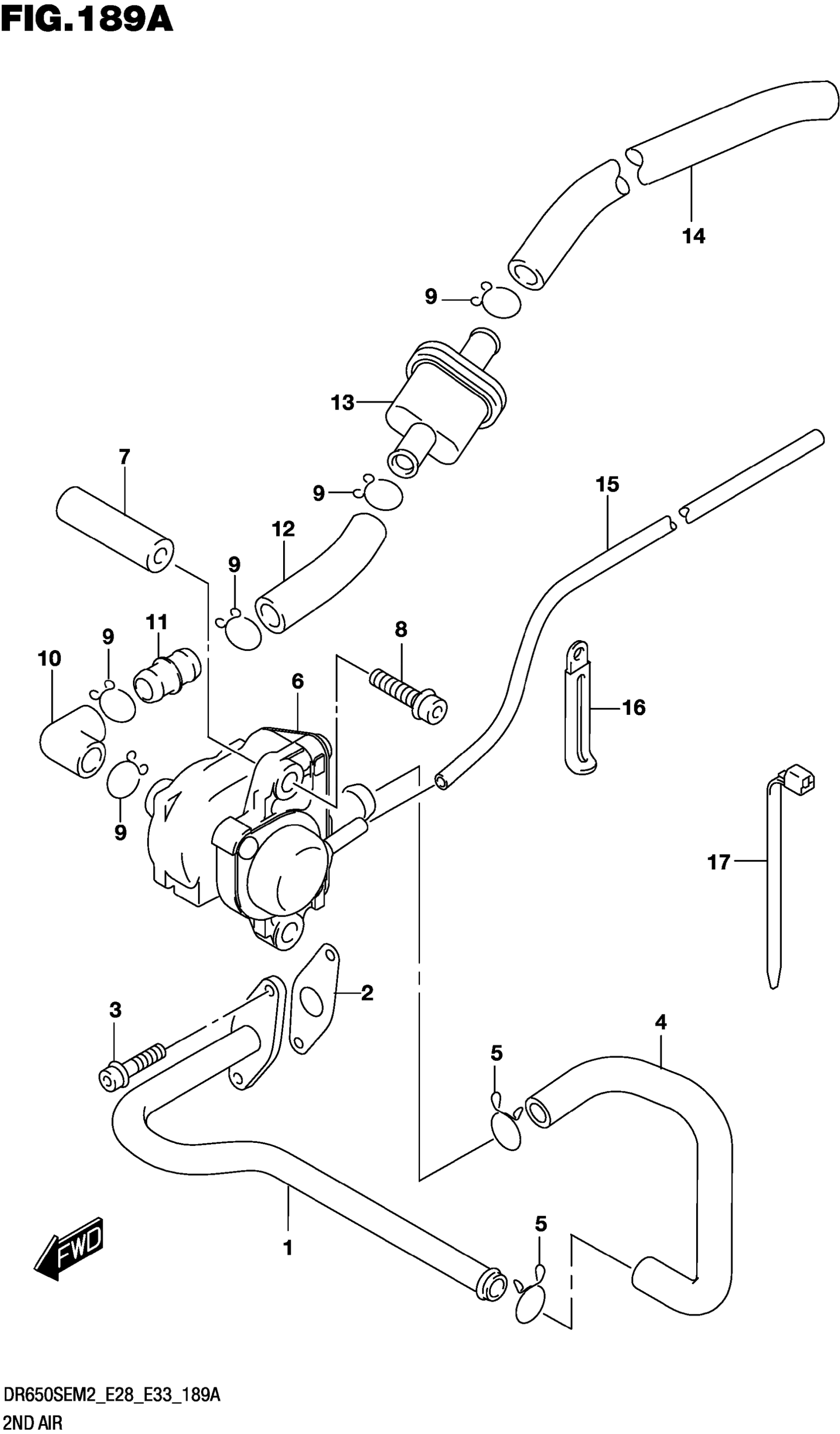

Suzuki DR650SEM2 (2022) 2ND AIR Diagram
