Description

Price

1

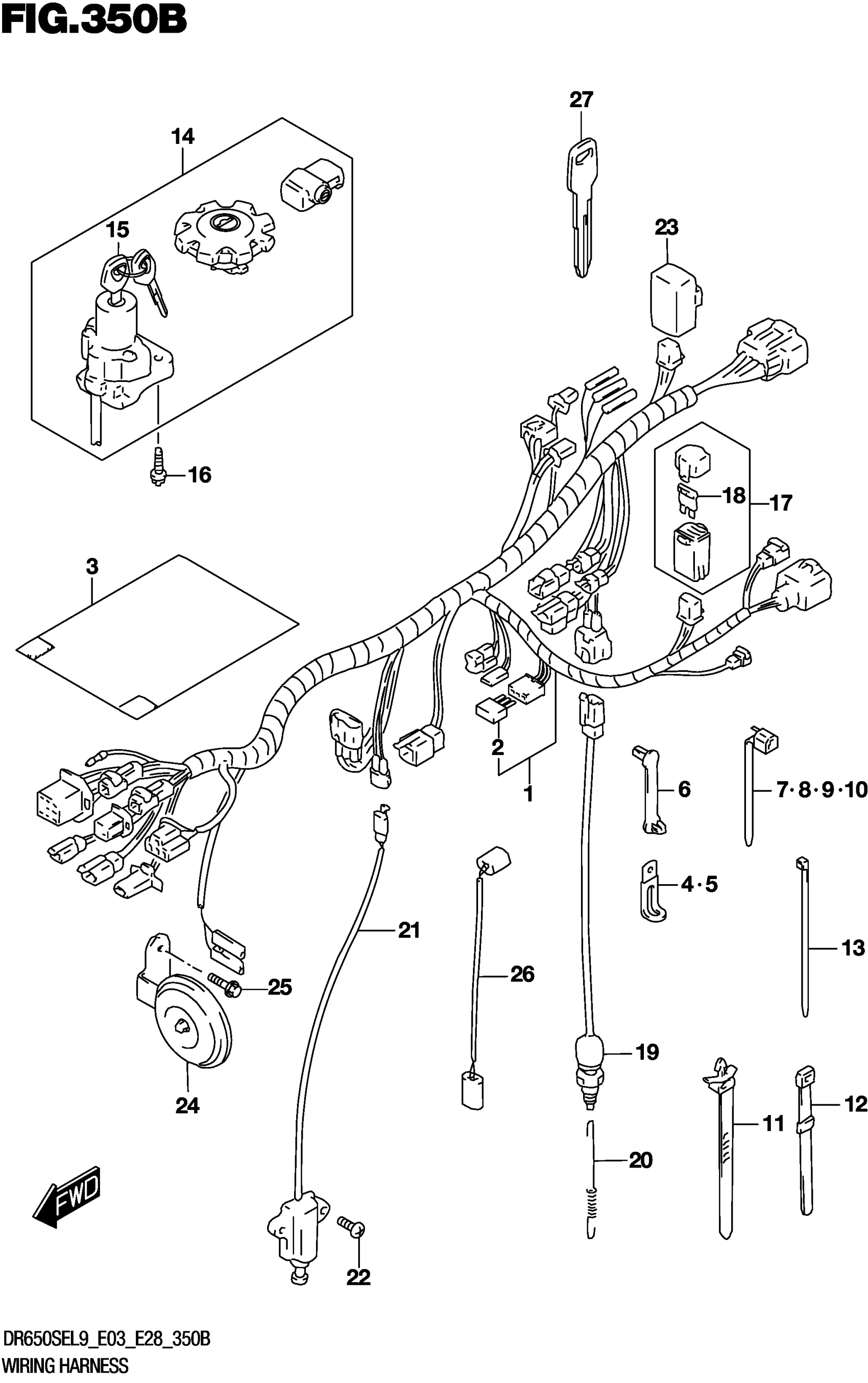

HARNESS,WIRING

36610-32E30

$569.23

2

.DIODE

36611-38A10

$13.16

3

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

$18.87

4

CLAMP (L:45)

09404-06429

$1.83

5

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.65

6

CLAMP (L:33)

09407-03401

$3.07

7

CLAMP (L:95)

09407-11401

$2.63

8

CLAMP (L:125)

09407-14403

$2.26

9

CLAMP (L:165)

09407-18402

$2.19

10

CLAMP (L:235)

09407-25401

$4.66

11

CLAMP (L:90)

09407-11402

$1.80

12

CLAMP (L:120)

09407-12402

$3.04

13

CLAMP (L:100)

09407-10404

$2.90

14

LOCK SET This part replaces 37000-04811.

37000-04814

$337.54

15

.LOCK ASSY,STEERING This part replaces 37100-04F00.

37100-04F01

$112.80

16

BOLT (8X20)

09139-08016

$3.37

17

BOX ASSY,FUSE

36740-32E00

Unavailable

18

.FUSE (10A)

09481-10101

$2.07

19

SWITCH ASSY,STOP LAMP

37740-32E00

$34.30

20

SPRING

09443-06016

$3.30

21

SWITCH ASSY,SID This part replaces 37840-44X50.

37840-44X52

$57.00

22

.SCREW

02112-0616B

$2.12

23

RELAY ASSY

38740-24X50

$45.20

24

HORN ASSY

38500-32E00

$84.50

25

BOLT

01550-0612A

$1.97

26

WIRE,THROTTLE SENSOR

36851-32E00
