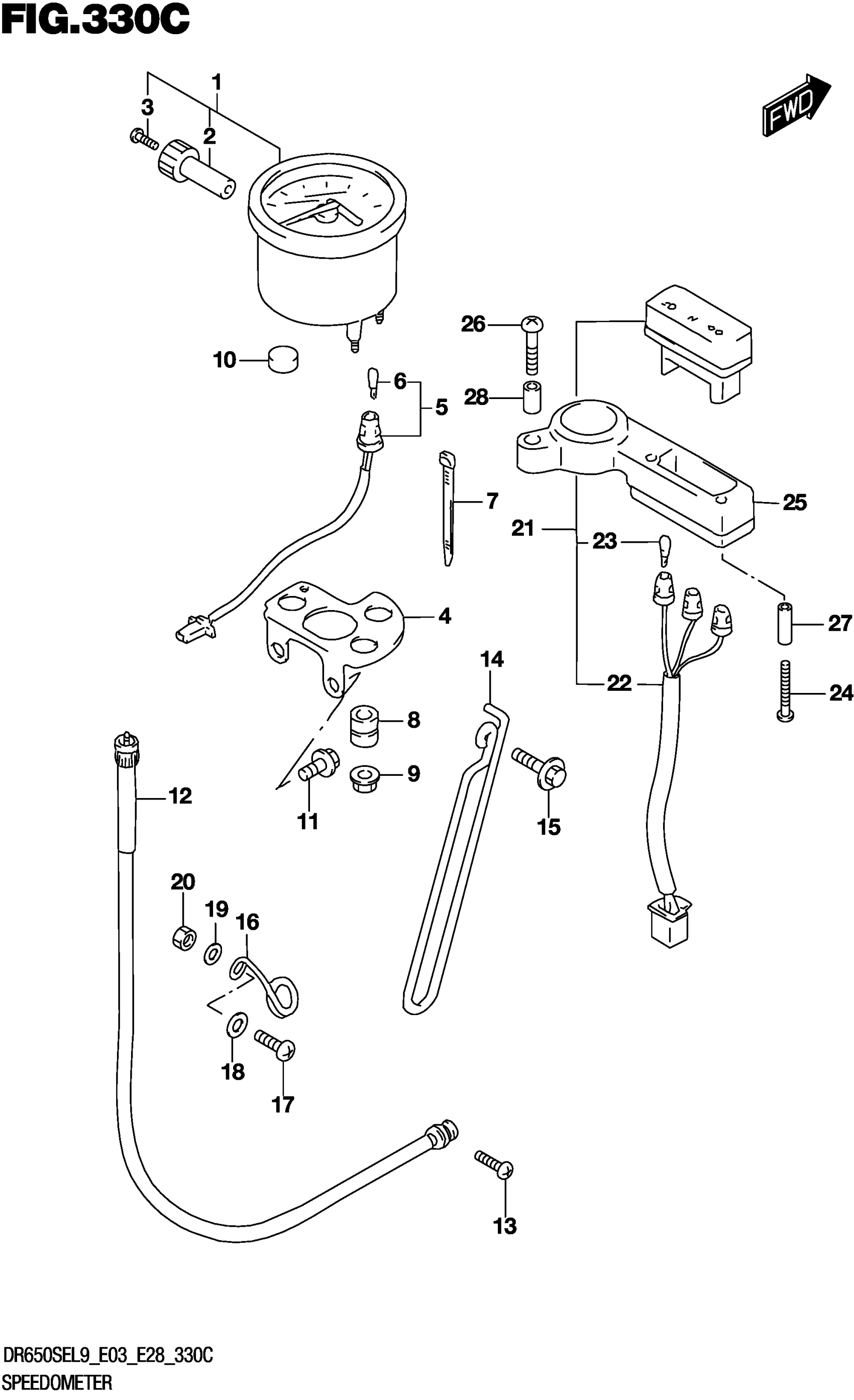

Suzuki DR650SEL9 (2019) SPEEDOMETER (DR650SEL9 E33) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34120-32E02

$489.68

2

.KNOB,TRIP

34124-44B30

$10.80

3

.SCREW,TRIP KNOB

34184-12D00

$2.93

4

BRACKET,METER

34950-32E10

$37.53

5

SOCKET

34170-15D21

$21.12

6

.BULB (12V1.7W)

09471-12108

$3.42

7

CLAMP

34954-42A90

Unavailable

8

CUSHION

34189-30921

$3.41

9

NUT (M6)

09159-06076

$2.81

10

CUSHION

34167-42A90

$9.90

11

BOLT

01550-0612A

$1.97

12

CABLE ASSY SPEEDOMETER

34910-32E00

$41.17

13

.SCREW

02112-0516B

$1.93

14

GUIDE METER CABLE NO.2

34938-14D30

$10.63

15

BOLT (6X20)

09116-06167

$2.19

16

GUIDE,SPEEDOMETER CABLE

34938-14D21

$8.65

17

SCREW

02142-0616B

$1.78

18

WASHER (6.5X18X1.6)

09160-06109

$1.49

19

WASHER (6.3X16X1)

09169-06053

$1.49

20

NUT

08310-0006B

$2.34

21

BOX ASSY,PILOT LAMP

36380-32E10

$175.98

22

.SOCKET & CORD

36394-32E00

$44.48

23

.BULB (13.5V2W)

09471-12118

$2.46

24

SCREW

03511-1435B

$2.58

25

HOLDER,PILOT BOX

36382-32E00

$19.07

26

SCREW (6X25)

09139-06029

$5.36

27

SPACER (4.5X6.5X25)

09180-04024

$5.00

28

SPACER (6.1X8X15.5)

09180-06251

$2.44
