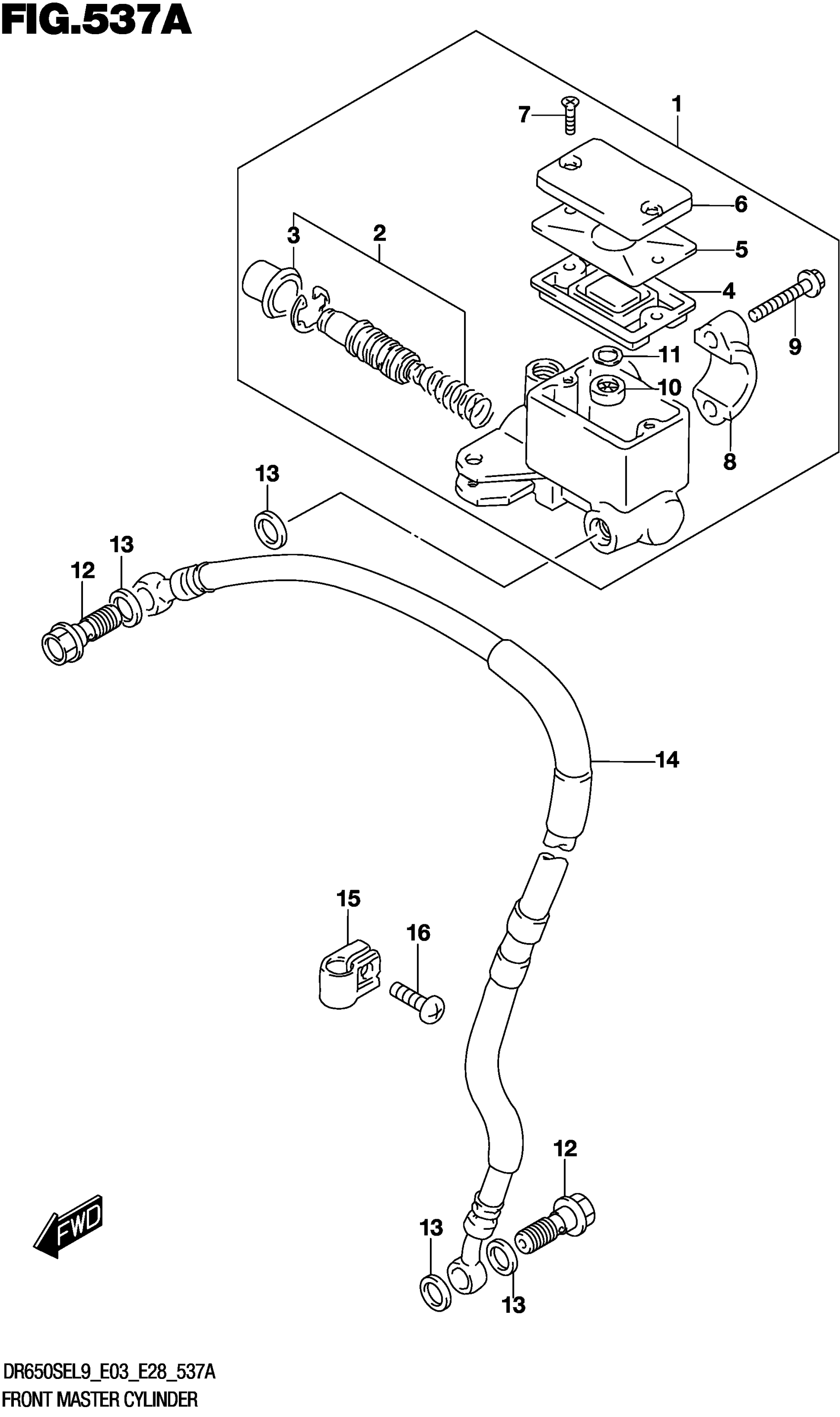

Suzuki DR650SEL9 (2019) FRONT MASTER CYLINDER Diagram

Description

Price

CYLINDER ASSY, FRONT MASTER

59600-31D50

$247.27

.PISTON/CUP SET

59600-04810

$45.20

..BOOT

59666-44300

$5.80

.DIAPHRAGM

59667-04700

$9.78

.PLATE,DIAPHRAGM

59668-14F00

$11.60

.CAP

59669-14F10

$20.40

.SCREW

69689-49300

$1.91

.HOLDER

59671-36500

$12.21

.BOLT (6X22)

59675-02FA0

$3.82

.SEPARATOR

59748-15400

$9.38

.PLATE

59749-15400

$2.79

UNION (10X1.25X22)

09360-10062

$6.43

WASHER (10X15X1.5)

09161-10009

$1.84

HOSE,FRONT BRAKE

59480-32E01

$150.45

CLAMP BRAKE HOSE

58621-07A20

$4.07

SCREW

02142-0620A

$1.49
