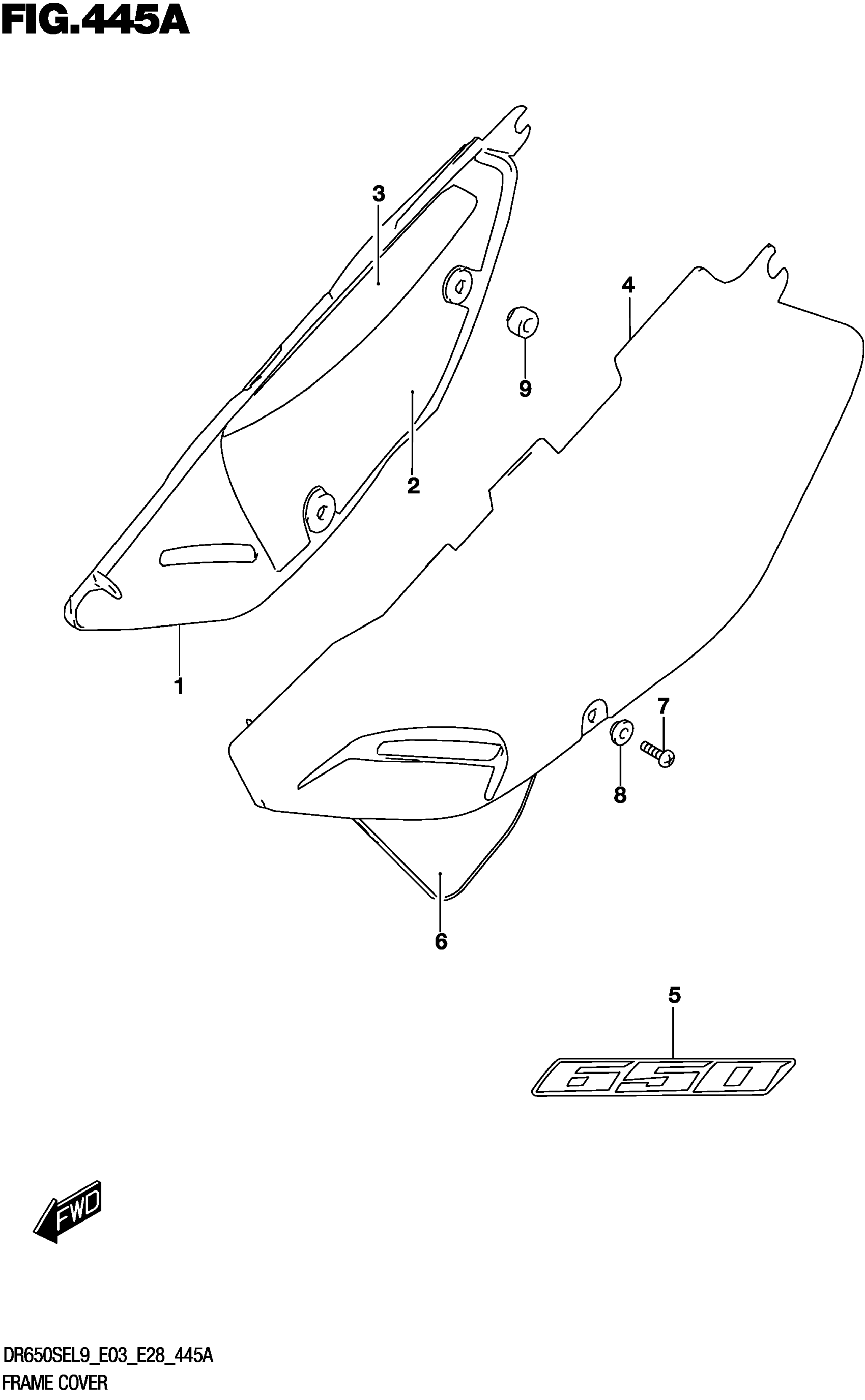

Suzuki DR650SEL9 (2019) FRAME COVER Diagram

COVER,FRAME RH (BLACK)

47111-32E10-019

$137.28

SHIELD,FRAME COVER,R,NO.1

47166-32E00

$50.69

SHIELD,FRAME COVER,R,NO.2

47167-32E00

$23.65

COVER,FRAME LH (BLACK)

47211-32E10-019

$141.92

EMBLEM, "650" (BLACK/GRAY)

68135-32E80-HGU

$10.25

TAPE,FRAME COVER LWR,L

68146-32E00

$15.08

SCREW

02142-0616A

$1.49

WASHER This part replaces 09169-06028.

09169-06041

$2.20

CUSHION

09321-10019

$4.90
