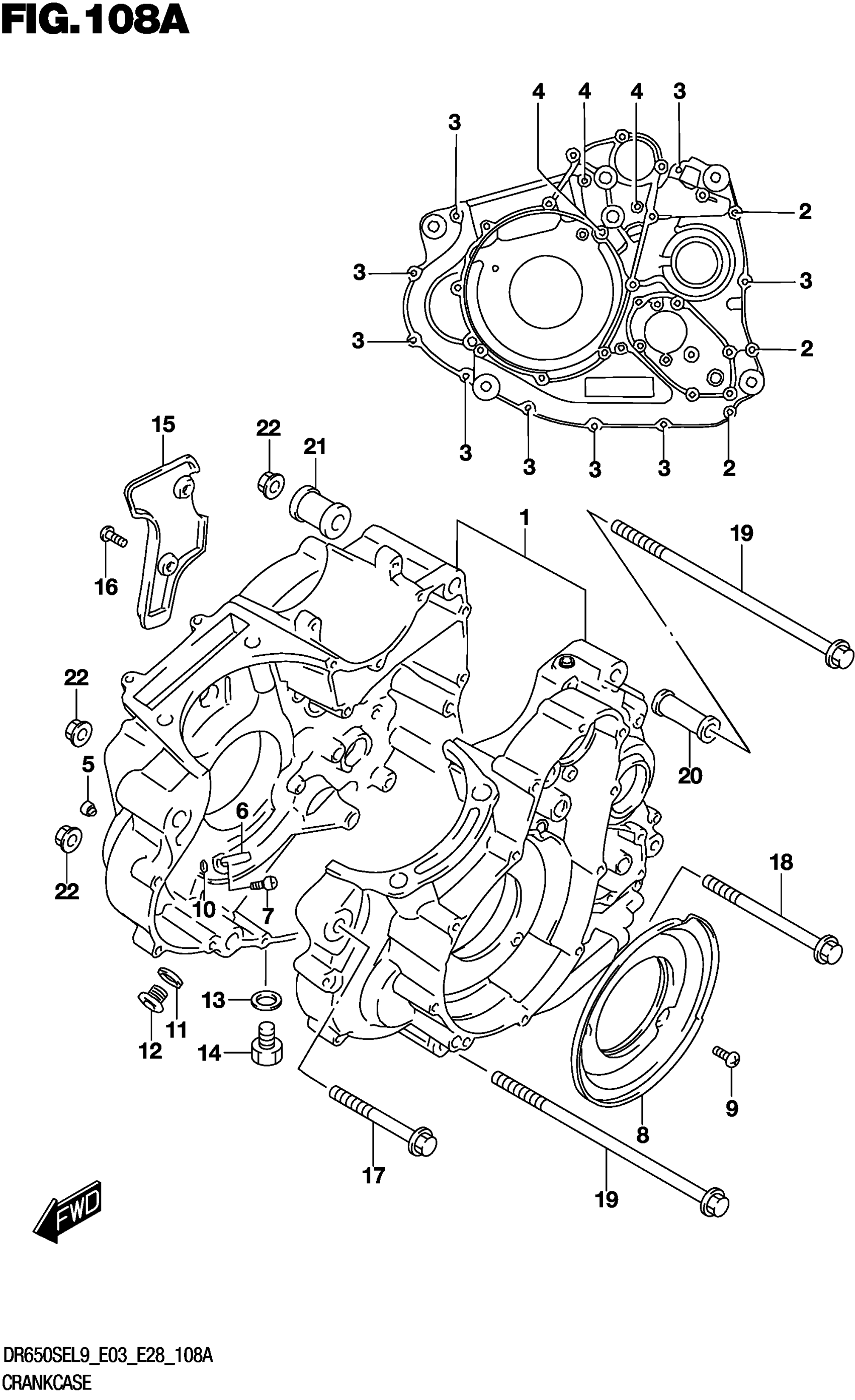

Suzuki DR650SEL9 (2019) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET This part replaces 11300-32881.

11300-32882

$1,033.72

2

BOLT

01547-0660A

$2.82

3

BOLT

01547-0640A

$2.32

4

.BOLT

01547-0680A

$3.30

5

.JET,OIL GALLERY

11180-43410

Unavailable

6

JET,PISTON COOLING

11390-04F00

$23.07

7

BOLT (6X12)

09106-06075

$2.48

8

SEPARATOR,CRANKCASE OIL

11323-32E00

$14.57

9

SCREW

02112-0612A

$1.49

10

O-RING (D:1.2,ID:4)

09280-04004

$1.91

11

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

12

PLUG (14X12)

09248-14011

$2.98

13

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

14

PLUG (14X12) | OIL DRAIN

09247-14026

$3.76

15

COVER,BREATHER

11317-32E00

$14.02

16

SCREW

02112-0612A

$1.49

17

BOLT (10X100)

09103-10110

$8.43

18

BOLT (10X130)

09103-10237

$9.68

19

BOLT (10X235)

09103-10239

$20.90

20

SPACER (L:65)

11610-45410

Unavailable

21

SPACER,ENGINE MOUNT,L27 (L:27

11610-20C00

$15.42

22

NUT (M10)

09159-10115

$3.55
