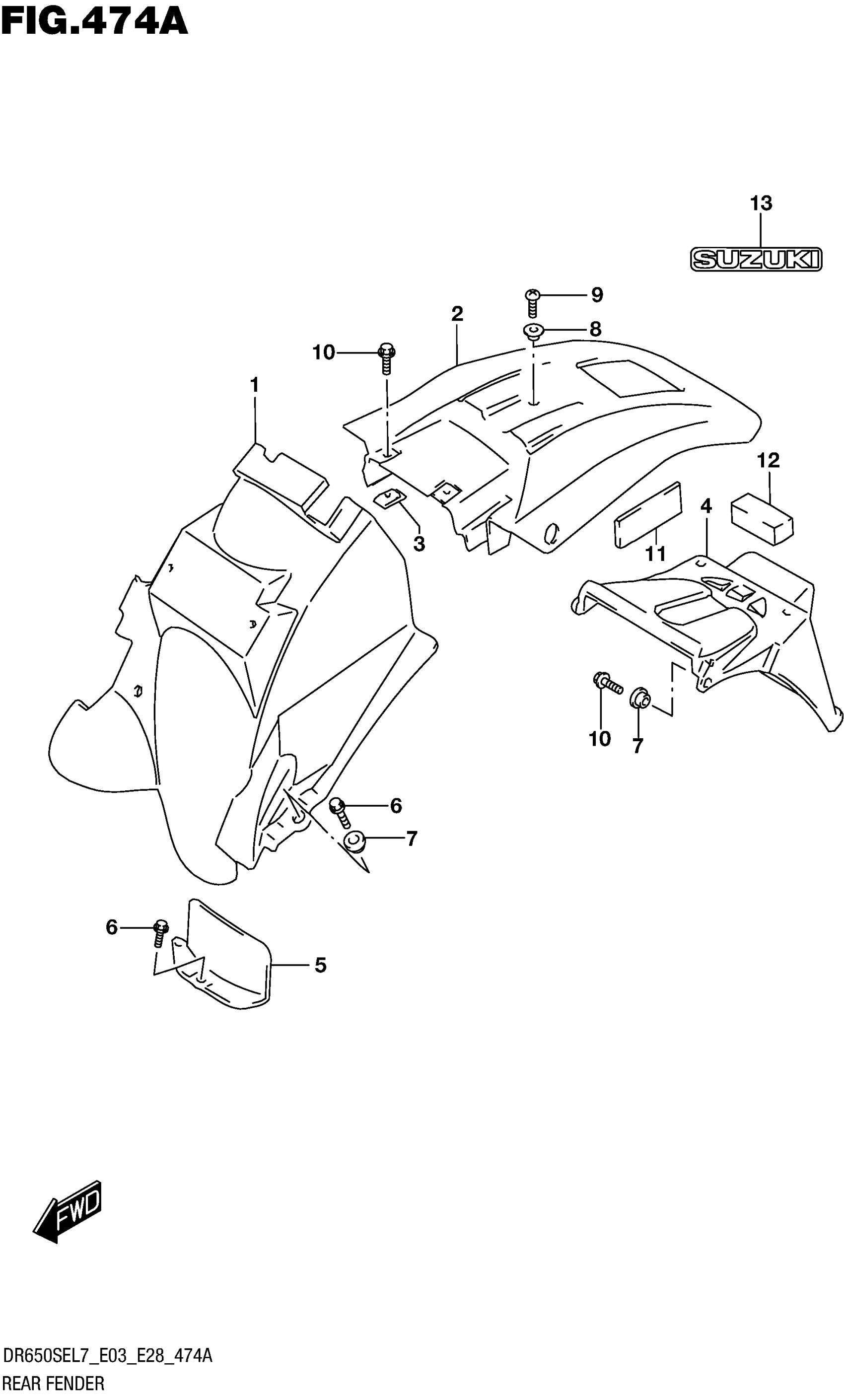

Suzuki DR650SEL7 (2017) REAR FENDER (DR650SEL7 E03) Diagram

#

Description
Price

1

BODY,REAR FENDER FRONT

63112-32E00

$74.52

2

BODY,RR FENDER RR (BLACK)

63113-32E30-019

$131.22

3

NUT, FENDER REAR

47153-19C01

$7.95

4

EXTENSION,REAR FENDER

63311-32E00

$62.32

5

MUD GUARD,REAR FENDER

63411-32E00

$18.53

6

BOLT (6X16)

09113-06001

$2.73

7

WASHER

09169-06073

$3.42

8

WASHER (6.3X16X1)

09169-06053

$1.49

9

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.38

10

BOLT

01550-0616B

$2.48

11

CUSHION,REAR FENDER

63118-32E00

$9.75

12

CUSHION, EXTENSION | CUT AS REQUIRED

94475-21E00

$14.30

13

EMBLEM, "SUZUKI"

68177-04A00-CT5

$11.37

13

(SILVER/BLACK)

68177-04A00-CT5

$11.37
