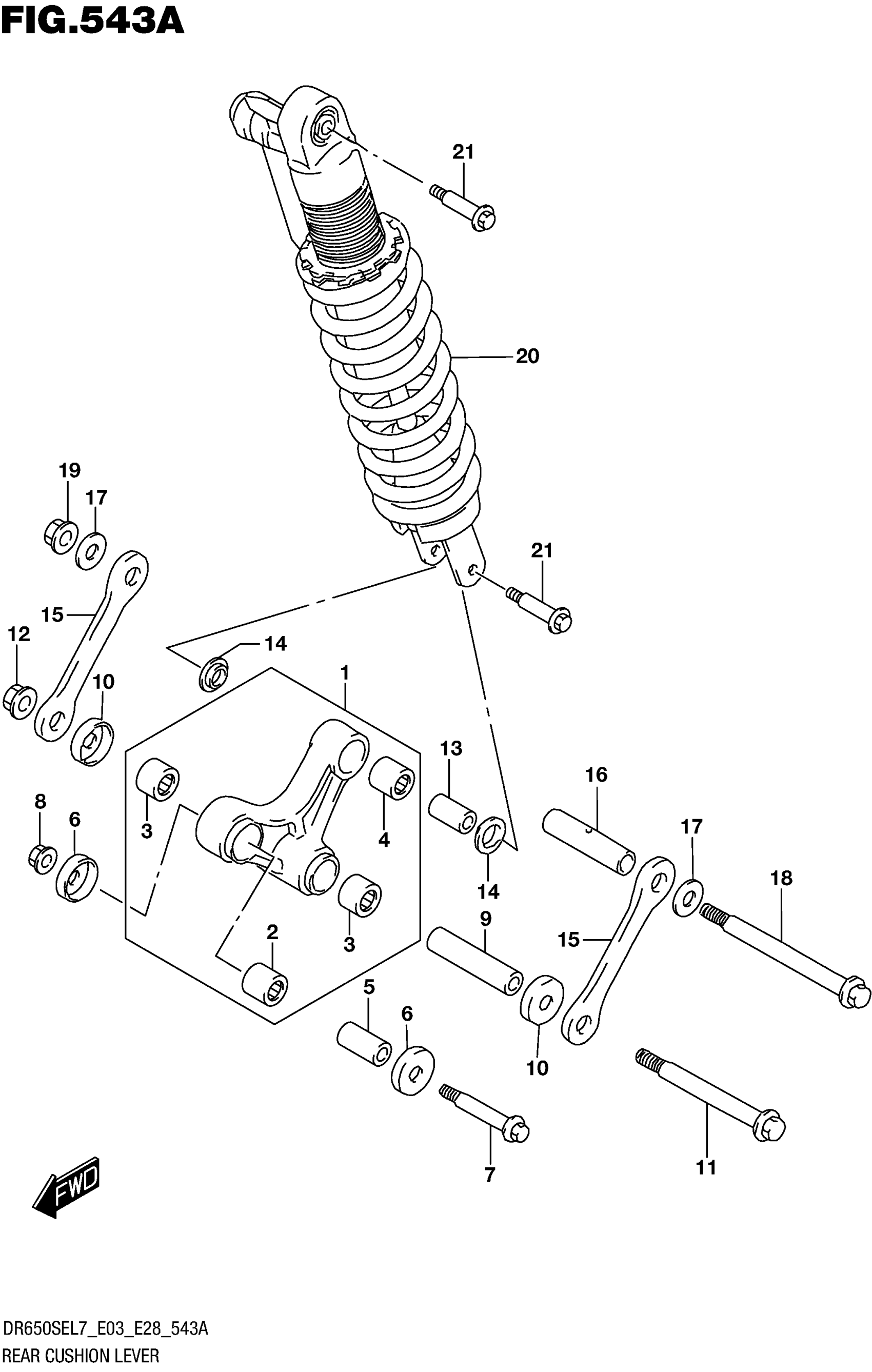

Suzuki DR650SEL7 (2017) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET,REAR CUSHION This part replaces 62600-32840.

62600-32841

$317.78

2

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

$17.82

3

.BEARING (21X27X20)

09263-21012

$24.81

4

.BEARING (17X24X20)

09263-17027

$19.48

5

SPACER, FRONT (12X20X34)

62317-27C10

$16.76

6

SEAL, DUST This part replaces 62162-28E00.

62162-28E01

$10.69

7

BOLT, FRONT (12X65)

62658-01C60

$13.55

8

NUT

08319-3112A

$3.76

9

SPACER,RR CUSHION LEVER CENTE

62626-13E00

$26.23

10

SEAL,RR CUSHION LEVER CENTER

62682-13E00

$13.30

11

BOLT, CENTER (14X109)

62621-27C20

$48.38

12

NUT

08319-3114A

$9.66

13

SPACER, REAR (10X17X30)

62684-40A10

$12.15

14

SEAL, REAR DUST

62624-13E00

$10.28

15

ROD,REAR CUSHION LEVER

62641-32E00

$63.12

16

SPACER, ROD (14X20X74)

62626-14D00

$30.72

17

WASHER

08211-14321

$3.85

18

BOLT, ROD (14X112)

62621-17C00

$23.07

19

NUT

08319-3114A

$9.66

20

ABSORBER ASSY,REAR SHOCK (BLA This part replaces 62100-32E30-019.

62100-32E31-019

$1,484.68

20

ABSORBER ASSY,REAR SHOCK (BLA This part replaces 62100-32E30-019.

62100-32E31-019

$1,484.68

21

BOLT (10X48)

62648-14500

$4.34
