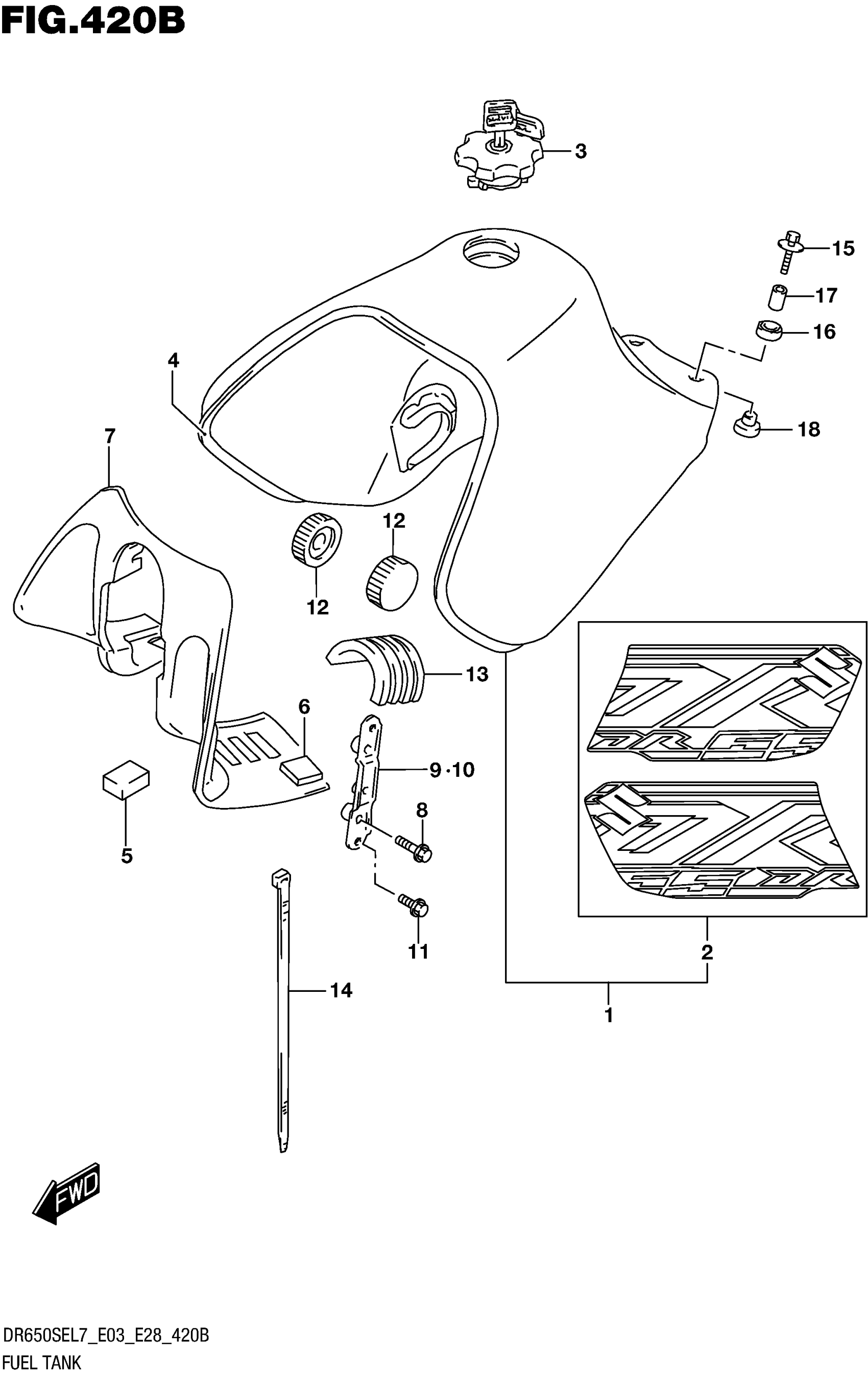

Suzuki DR650SEL7 (2017) FUEL TANK (DR650SEL7 E28) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK)

49100-32E20-019

$1,136.33

2

.TAPE SET

68110-32EE0-BEB

Unavailable

3

CAP SET,FUEL TA This part replaces 44200-13830.

44200-13831

$130.18

4

MOLDING,FUEL TANK

68241-32E00

$56.05

5

CUSHION

51827-01A00

$6.17

6

CUSHION, TANK COVER | CUT AS REQUIRED

44831-17B00

$6.70

7

COVER,FUEL TANK,FRONT

44271-32E00

$57.77

8

BOLT (6X12)

09116-06210

$2.47

9

BRACKET, FRONT COVER RH

44280-32E00

Unavailable

10

BRACKET, FRONT COVER LH

44290-32E00

Unavailable

11

BOLT

01550-0625A

$1.97

12

CUSHION,FUEL TANK,FRONT

44511-12D00

$6.93

13

CUSHION, UPPER REAR

44541-13E00

$16.65

14

CLAMP (L:250)

09407-25402

$4.64

15

BOLT (6X30)

09116-06214

$2.50

16

CUSHION

09320-14022

$3.63

17

SPACER (6.5X9X18)

09180-06271

$2.35

18

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60
