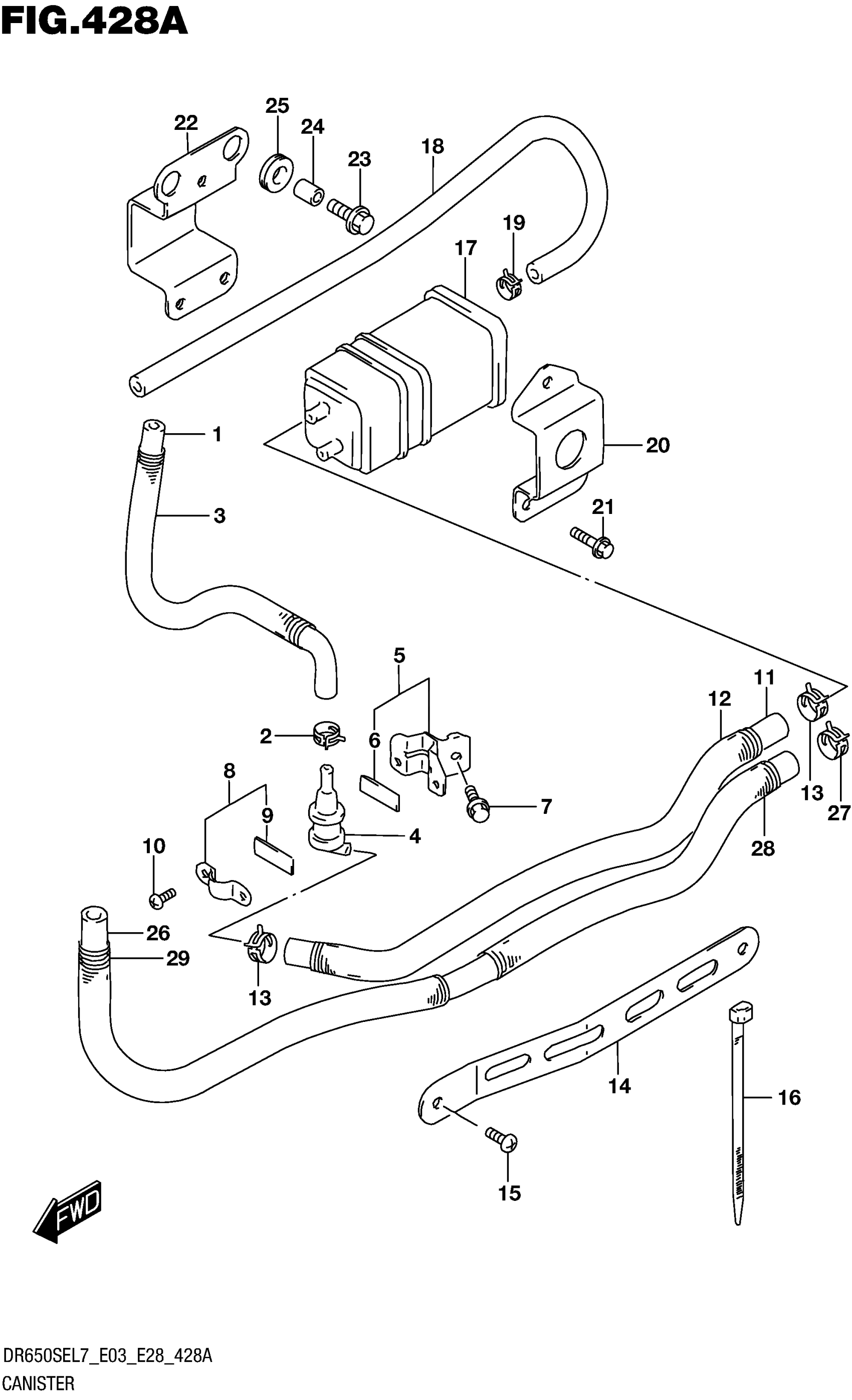

Find the part on the Canister diagram for your 2017 Suzuki DR650SEL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki DR650SEL7 Canister Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, TANK & VALVE

44434-32EA0

1
Out of stock

2

CLIP

09401-11413

2
Out of stock

3

SPRING

09440-13012

1
Out of stock

4

VALVE FUEL TANK BREATHER

44240-17C00

1
Out of stock

5

PLATE,BRTHR VALVE

44890-32E00

1
Out of stock

6

CUSHION (10X30X2)

44894-24A00

1
Out of stock

7

BOLT

01550-0612A

1
Out of stock

8

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

1
Out of stock

9

CUSHION (10X30X2)

44894-24A00

1
Out of stock

10

SCREW

02142-0408A

2
Out of stock

11

HOSE, VALVE & CANISTER

44435-32EA0

1
Out of stock

12

SPRING

09440-13043

2
Out of stock

13

CLIP

09401-11413

2
Out of stock

14

PLATE,CANISTER HOSE

44945-32E00

1
Out of stock

15

SCREW

02142-0612A

2
Out of stock

16

CLAMP (L:125)

09407-14403

2
Out of stock

17

CANISTER

17210-14A00

1
Out of stock

18

HOSE,6.5X11.5X6 | L:600->320 This part replaces 09355-70125-600.

44421-12FR0

1
Out of stock

19

CLIP

09401-11415

1
Out of stock

20

PLATE,CSTR UPPER

44921-32E00

1
Out of stock

21

BOLT

01550-0612A

3
Out of stock

22

PLATE,CSTR LOWER

44930-32E00

1
Out of stock

23

BOLT (6X20)

09116-06167

2
Out of stock

24

SPACER (6.5X10X9.4)

09180-06286

2
Out of stock

25

CUSHION

09320-10015

2
Out of stock

26

HOSE, CANISTER & CARB PURGE

44436-32EA0

1
Out of stock

27

CLIP

09401-11413

2
Out of stock

28

SPRING

09440-13043

1
Out of stock

29

SPRING

09440-13053

1
Out of stock
