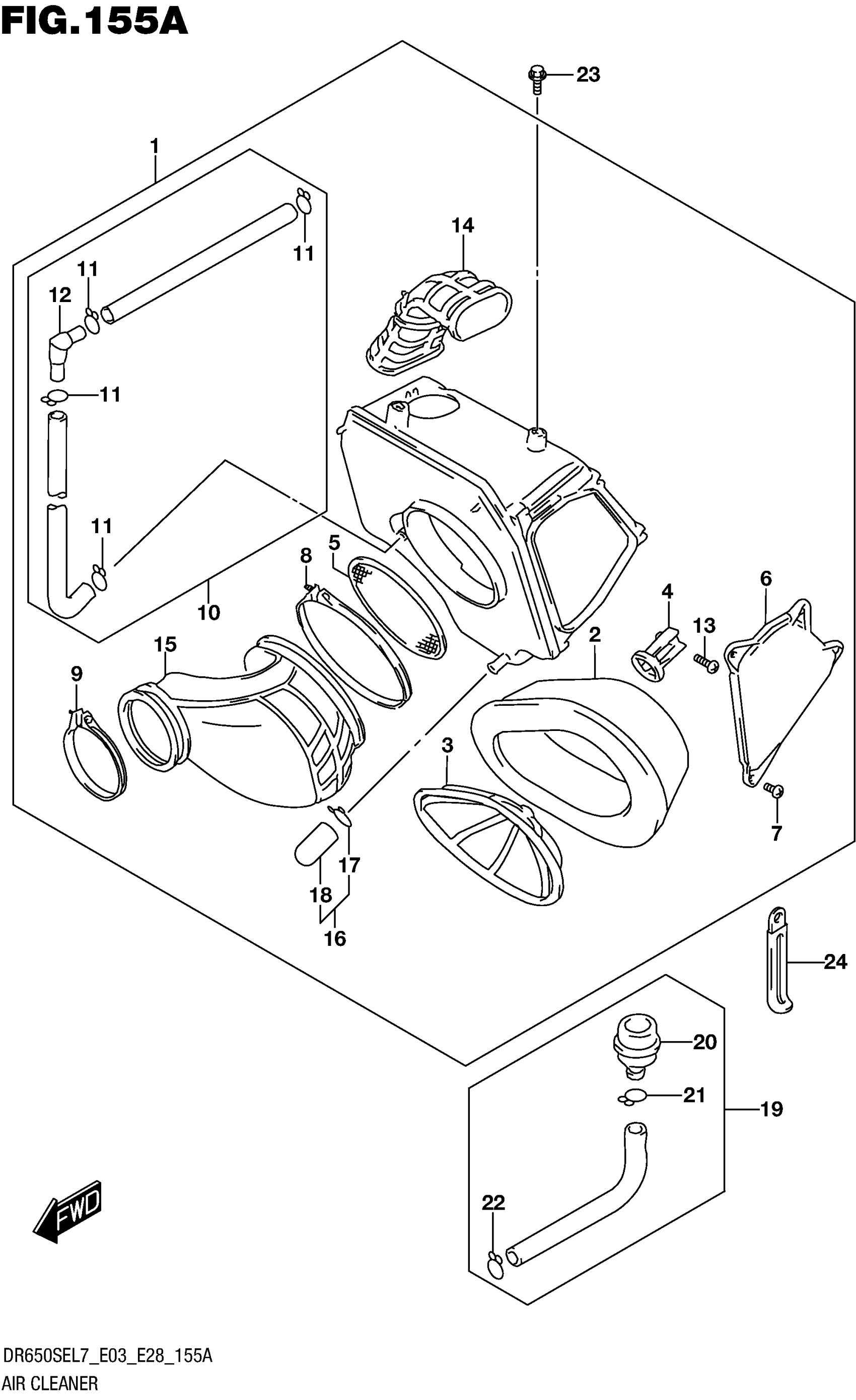

Suzuki DR650SEL7 (2017) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AIR

13700-32E00

$480.35

2

.FILTER

13780-32E00

$42.63

3

.HOLDER

13791-32E00

$20.84

4

.STOPPER

13792-32E00

$7.39

5

.TRAP, FRAME

13810-14D02

$11.12

6

.CAP

13740-32E00

$28.79

7

.SCREW

02142-0512A

$1.41

8

.CLAMP, OUTLET TUBE

13826-14D01

$8.92

9

.CLAMP

09402-64203

$6.12

10

.TUBE ASSY, BREATHER

13850-32E00

$36.68

11

..CLIP

09401-14301

$2.17

12

..JOINT

13858-14D20

$7.11

13

.SCREW

02142-0620A

$1.43

14

.TUBE, INLET

13891-32E00

$60.85

15

.TUBE, OUTLET

13881-32E00

$108.60

16

.PLUG ASSY, DRAIN

13856-19B03

$12.35

17

..CLIP

09401-14101

$2.44

18

.PLUG

13859-41B10

$7.26

19

CLEANER ASSY,AIR,NO.2

13800-32E00

$64.25

20

.FILTER

18780-32E00

$28.01

21

.CLIP

09401-16401

$2.97

22

.CLIP

09401-14301

$2.17

23

BOLT

01550-0612A

$2.01

24

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.81
