2017 Suzuki DR650SEL7 Camshaft/valve Diagram

← All diagrams

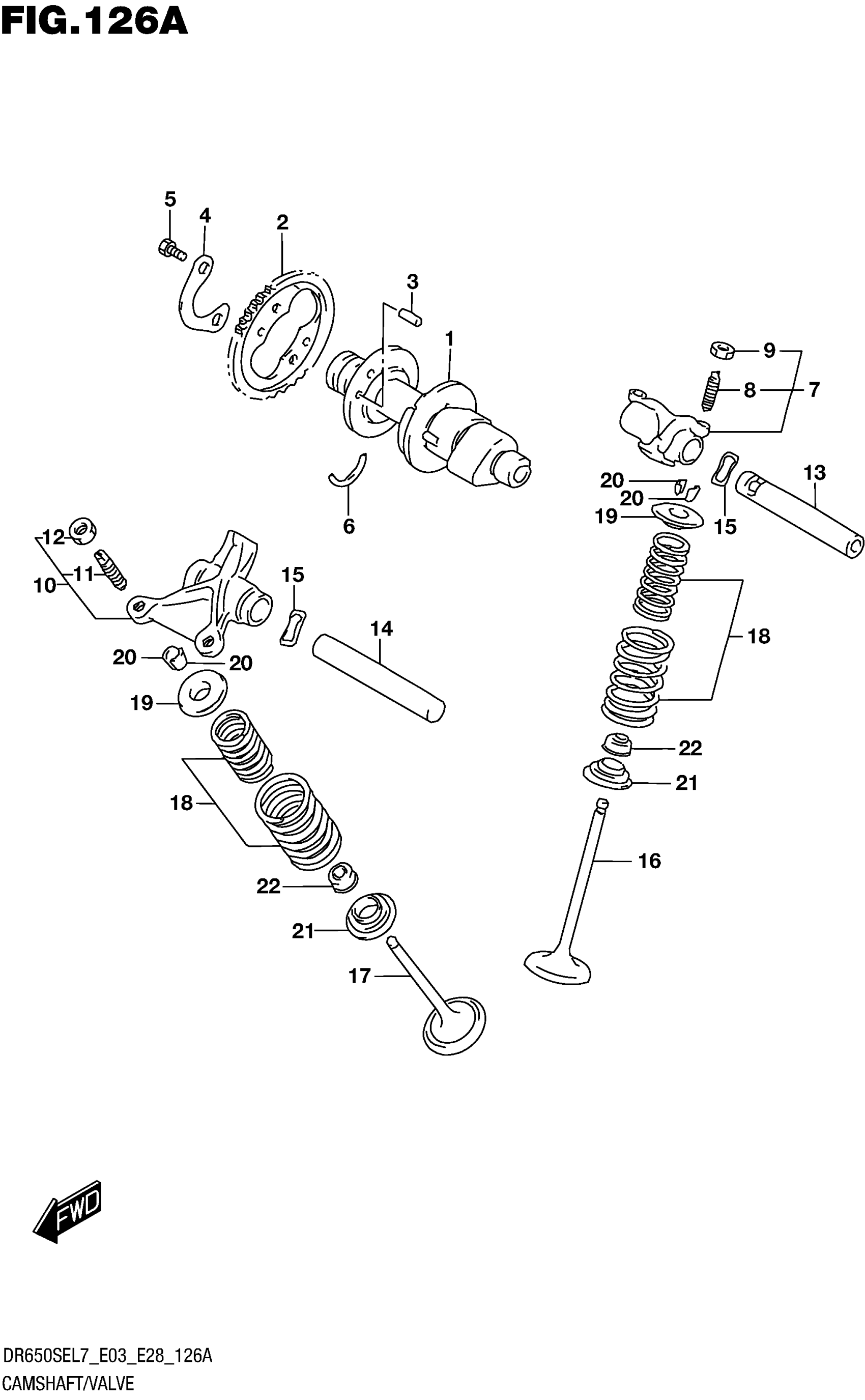

Find the part on the Camshaft/valve diagram for your 2017 Suzuki DR650SEL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki DR650SEL7 Camshaft/valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAMSHAFT

12710-32E01

1
Out of stock

2

SPROCKET (NT:38)

12741-32E00

1
Out of stock

3

PIN (5X8)

09261-05005

1
Out of stock

4

WASHER,SPROCKET

12747-44B00

1
Out of stock

5

BOLT (6X10.5)

09100-06166

2
Out of stock

6

C-RING

09390-22002

1
Out of stock

7

ARM,VALVE ROCKER,IN

12840-32E00

1
Out of stock

8

.SCREW

12842-38A00

2
Out of stock

9

.NUT, ADJUSTING SCREW

12843-32400

2
Out of stock

10

ARM,VALVE ROCKER,EX

12850-32E00

1
Out of stock

11

.SCREW

12842-38A00

2
Out of stock

12

.NUT, ADJUSTING SCREW

12843-32400

2
Out of stock

13

SHAFT,VALVE ROCKER ARM,IN

12861-14D50

1
Out of stock

14

SHAFT, ROCKER ARM EX

12871-14D50

1
Out of stock

15

WASHER

09164-12018

2
Out of stock

16

VALVE, INTAKE

12911-19B00

2
Out of stock

17

VALVE, EXHAUST

12912-42A00

2
Out of stock

18

SPRING SET, VALVE

12920-32E00

4
Out of stock

19

RETAINER

12931-33201

4
Out of stock

20

COTTER, VALVE

12932-24400

8
Out of stock

21

SEAT,VALVE SPRING

12933-81400

4
Out of stock

22

OIL SEAL (5.5X11X8.2)

09289-05015

4
Out of stock
